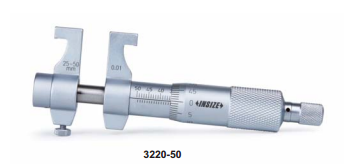

3220_1

  • Graduation 0.01mm
  • Ratchet stop
  • Carbide measuring faces
  • Optional accessary: setting ring (code 6312)
 Code Range Type Setting ring Accuracy
 3220-30 5-30mm  A  5mm 7μm
3220-50 25-50mm B 25mm 8μm

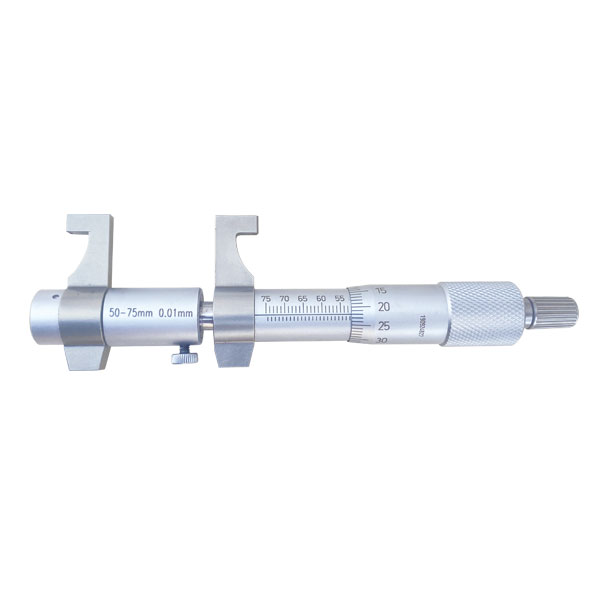

3220-75 50-75mm B 8μm

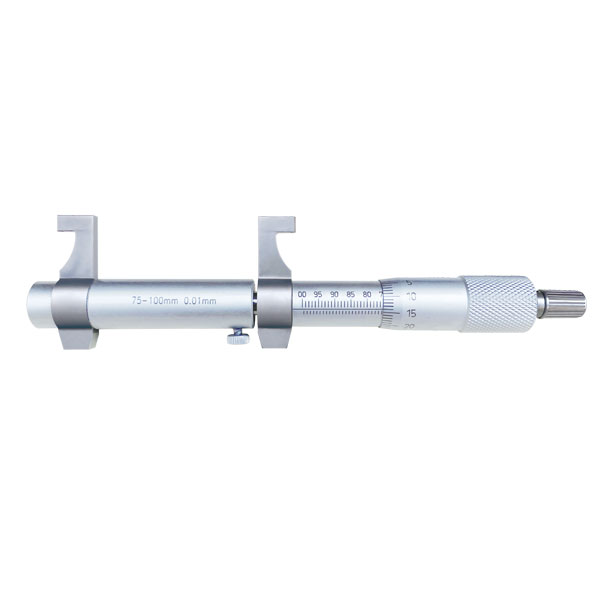

3220-100 75-100mm C 8μm
3220-125 100-125mm C 9μm
3220-150 125-150mm C 9μm
3220-175 150-175mm C 10μm
3220-200 175-200mm C 10μm
3220-225 200-225mm C 11μm
3220-250 225-250mm C 11μm
3220-275 250-275mm C 12μm
3220-300 275-300mm C 12μm
