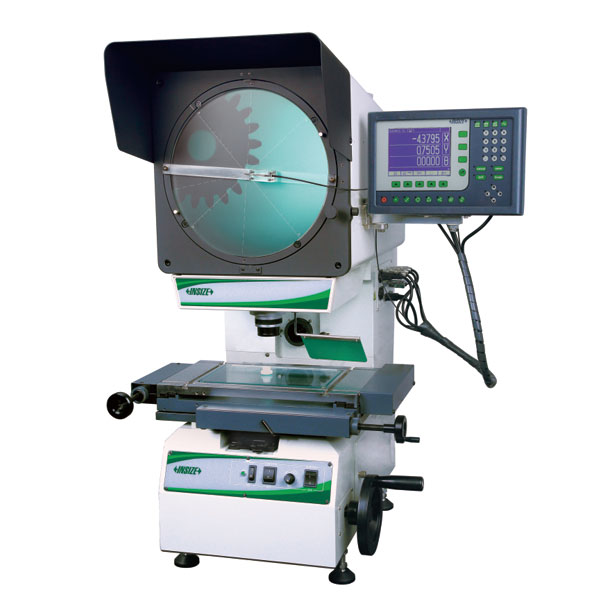

INSIZE PROFILE PROJECTORS (METAL STAGE SIZE 340×152 MM)

Code:

▪Touch Button
▪USB data output to excel and CAD
▪show diagram

Click to Expand

INSIZE PROFILE PROJECTORS (METAL STAGE SIZE 340×152 MM)

Product Overview

The INSIZE Profile Projectors (featuring a metal stage size of 340×152 mm) are precision optical measurement and inspection instruments designed for industrial metrology applications. Built with robust illumination systems and high-resolution measurement stages, these profile projectors provide accurate profile analysis, coordinate measurements, and geometrical verification of workpieces. Available in standard (ISP-Z3015) and advanced edge-detector (ISP-A1000E) configurations, they deliver reliable performance with erect image projection and versatile data export capabilities.

Key Features & Capabilities

Touch Button Control: User-friendly interface for streamlined operation and function execution.
Data Export & Visualization: USB data output capability to Excel and CAD formats, with built-in diagram display functions (available on ISP-A1000E / digital readout models).
Illumination System: Equipped with adjustable 24V/150W halogen contour illumination and 24V/150W halogen surface illumination.
Projector Screen: Features a Ø300 mm screen with a rotation range of 0°~360°, resolution of 1″ or 0.01°, and reference cross-hair lines.
Precision Stage Travel: High-resolution X-Y stage travel utilizing optical scales.

Technical Specifications

Feature / Parameter	ISP-Z3015	ISP-A1000E
Edge Detector	Not included	Included
Lens (Magnification, View Field, Working Distance)	• 10X (Included): Ø30 mm, 77.7 mm<br>• 20X (Optional): Ø15 mm, 44.3 mm	• 50X (Included): Ø6 mm, 38.4 mm<br>• 100X (Optional): Ø3 mm, 25.3 mm
Max. Workpiece Height	90 mm	90 mm
Magnification Accuracy	±0.08%	±0.08%
Image Type	Erect image	Erect image
Projector Screen	Diameter: Ø300 mm<br>Rotation range: 0°~360° (Resolution: 1″ or 0.01°)<br>Reference lines: Cross-hairs	Diameter: Ø300 mm<br>Rotation range: 0°~360° (Resolution: 1″ or 0.01°)<br>Reference lines: Cross-hairs
Metal Stage Size	340×152 mm	340×152 mm
Glass Stage Size	196×96 mm	196×96 mm
X-Y Stage Travel	Range: 150×50 mm<br>Resolution: 0.5 µm<br>Accuracy: (4+L/25) µm (L = measuring length in mm)	Range: 150×50 mm<br>Resolution: 0.5 µm<br>Accuracy: (4+L/25) µm (L = measuring length in mm)
Z (Focus) Travel Range	90 mm	90 mm
Max. Load Capacity	4 kg	4 kg
Illumination	Contour: 24V/150W halogen lamp (adjustable brightness)<br>Surface: 24V/150W halogen lamp	Contour: 24V/150W halogen lamp (adjustable brightness)<br>Surface: 24V/150W halogen lamp
Display / Output	X-Y stage travel, screen rotation / RS232C	X-Y stage travel, screen rotation / RS232C, USB (data output to Excel and CAD)
Data Processing Unit Functions	• Measure coordinate of point<br>• Measure coordinate of line<br>• Measure center coordinate & radius of circle with three points<br>• Measure distance between two objects<br>• Measure angle with four points or two lines<br>• Set origin of coordinate<br>• Coordinate transform<br>• Set midpoint of coordinate	• Measure coordinate of point<br>• Measure coordinate of line<br>• Measure center coordinate & radius of circle with three points<br>• Measure distance between two objects<br>• Measure angle with four points or two lines<br>• Coordinate transform<br>• Choose measurement object automatically according to selective point and display result
Advanced Functions	—	Programming for batch measurements
Power Supply	110/220V, 50/60 Hz	110/220V, 50/60 Hz
Dimensions (L×W×H)	550×770×1100 mm	550×770×1100 mm
Weight	135 kg	135 kg
