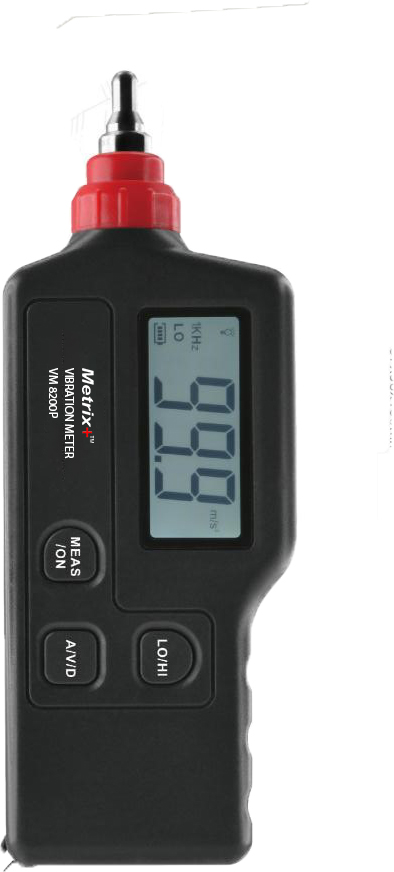

| Model | Metrix+ VM 8200P |
| Display | 4-digit backlit LCD |
| Transducer | Piezo electric ceramic accelerometer(shear type) |
| Velocity | 0.1 ~ 199.9 m/s |
| Acceleration | 0.1 ~ 199.9 m/s2 |
| Displacement | 0.001 ~ 1.999 mm |
| Frequency range for measuring | Acceleration |
| Velocity | |
| Displacement | |
| Accuracy | +5% of reading + 2d |
| Power supply | 1 x 9V battery |
| Operating condition | Temperature : 0-40oC ; Humidity : 30 ~ 90% RH |
| Dimensions and weight | 183 x 67 x 30mm ; 147g |
| Standard accessories | Vibration meter, manual, battery, hard carry case |
A vibration meter is used in manufacturing for machine condition monitoring, product testing and quality assurance. A vibration meter also can be used in civil engineering to measure the vibration of structures such as buildings, roads and bridges.
Vibration Meter employs a piezoelectric transducer to measure vibrations of a material and displays it in one or more of displacement, velocity or acceleration values for analyzing.
