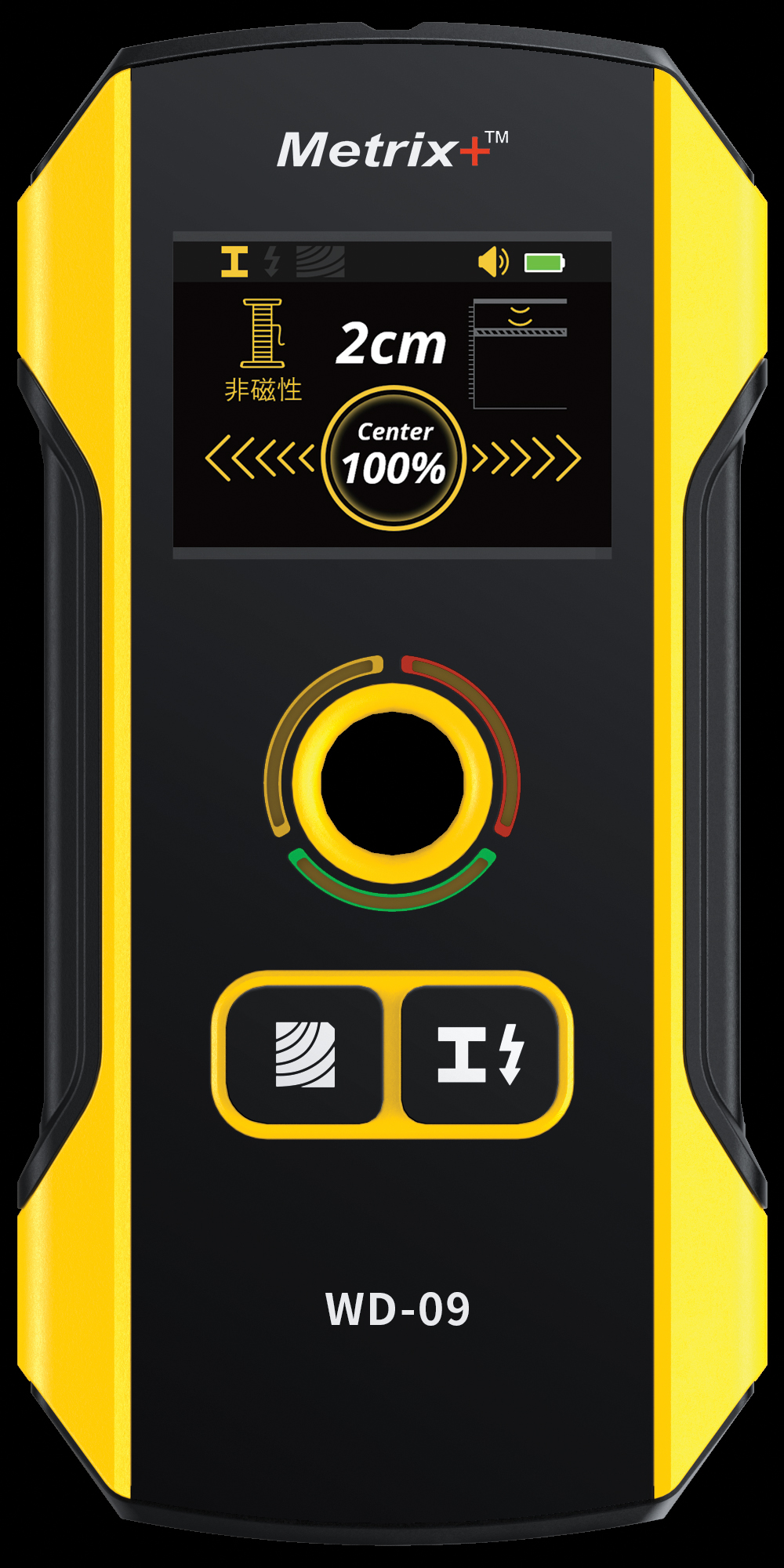

Metrix+ WD 09

WD 09 is a wall detector to detect metal (steel bars, copper pipes) and cables hidden in walls, ceilings and floors; wooden beams, metal and cables under plasterboard.

Features:

Detect and locate metals(magnetic and non-magnetic), AC live wires and wooden materials inside walls, ceilings, plasterboards, plywood, etc.
High definition TFT display with intuitive user interface
3 level sensitivity adjustment
Positioning hole design to mark areas, helpful for drilling applications
Display helps in centering to the target detection area, with indicator lights
Portable and ergonomic to carry with pouch included in the box
Manual in Hindi and English languages!
Universal Type C charging

Download Catalog

Model	*Metrix+ WD 09*
Detection type	Metal Detection– Magnetic metals (steel bars, rebars, iron, etc), non-magnetic metals (wires, copper pipes, etc) Cable Detection (AC live wires) Wooden Detection (wooden studs, wood rails, light steel joists, nails, conduits, other foreign objects, behind plasterboard walls, bare wood floors, plywood, coated wood walls) (wooden detection cannot detect objects in concrete, mortar, blocks, bricks, carpets, foil-faced materials, metal surfaces, tiles, glass or any other dense materials)
Detection depths	Ferrous metals: 120mm Non-ferrous metals(copper, etc): 100mm AC wires: 50mm Single stranded copper wire (>4mm2): 40mm Other foreign objects(usually wooden materials): 38mm
Detection indications	Detection depth distance in main display with prompts for detection strength, light indication and sound indication
Working conditions	Temperature: -10 ~ 50°C Humidity: 0 ~ 85% (metal mode), 0 ~ 60% (foreign object mode), 0 ~ 30% (AC wire mode)
Battery	3.7V 300mAh, ~2hrs continuous usage time
Dimensions	138 x 68 x 22mm
Auto shutdown time	5mins of no activity
Standard accessories	Main unit, manual, charging cable, pouch; gift box packing
