FAT (Fine Adjustment Top):
A compact fine adjustment attachment that fits onto magnetic bases or holders. It allows micrometric adjustment of dial indicators or test indicators without disturbing the base position.
FAB (Fine Adjustment Base):
A magnetic base with an integrated fine adjustment mechanism. It combines strong magnetic holding power with precision positioning for measuring instruments, offering both stability and fine-tuning in one unit.
FAT (Fine Adjustment Top):
A compact fine adjustment attachment that fits onto magnetic bases or holders. It allows micrometric adjustment of dial indicators or test indicators without disturbing the base position.
FAB (Fine Adjustment Base):
A magnetic base with an integrated fine adjustment mechanism. It combines strong magnetic holding power with precision positioning for measuring instruments, offering both stability and fine-tuning in one unit.
Both versions ensure high accuracy, repeatability, and ease of use in machine setup, inspection, and calibration tasks.
Base: Powerful on/off magnetic base for secure mounting
Adjustment: Built-in fine adjustment screw for micrometric positioning
Design: Universal swivel arms for flexible positioning
Application: Ideal for use with dial indicators, test indicators, and gauges
|

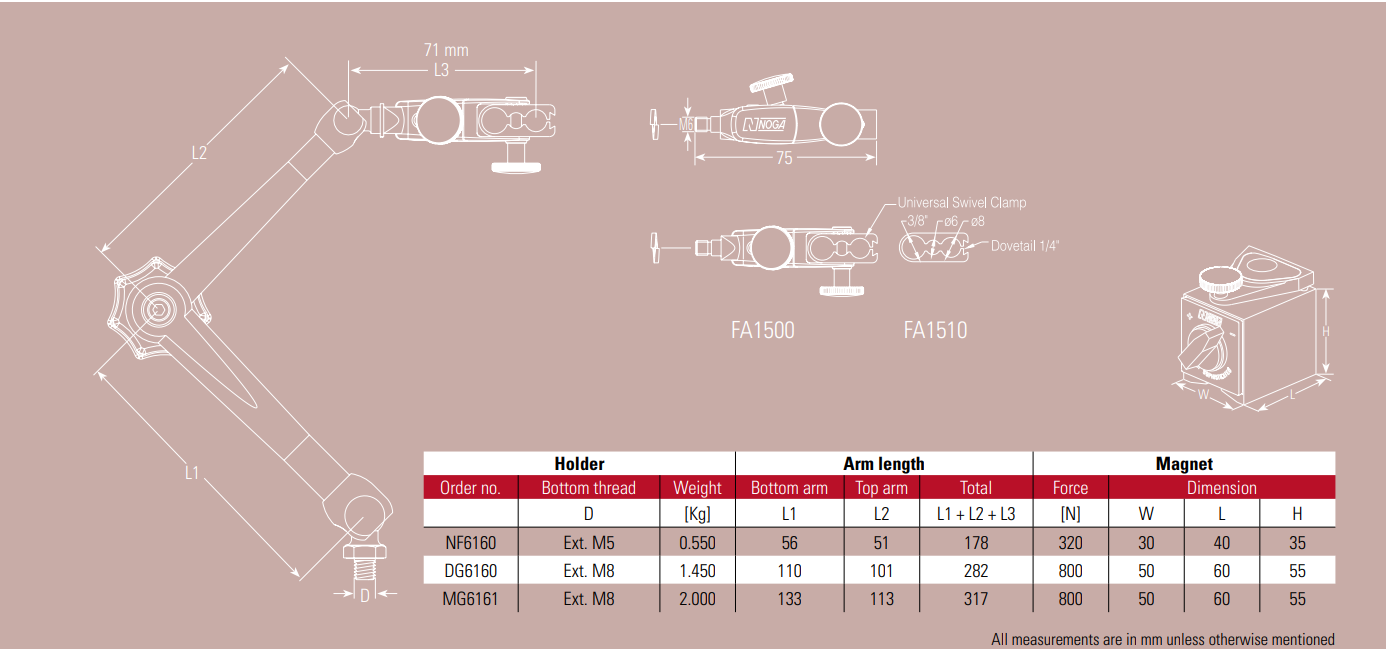

Order no. |
Holder | Arm Length | Magnet | ||||
|---|---|---|---|---|---|---|---|
| Bottom Thread [D] | Weight [Kg] | Bottom Arm L1 | Top Thread L2 | Total L1 + L2 + L3 | Force [N] | Dimension (L x W x H) | |
| NF6160 | Ext. M5 | 0.55 | 56 | 51 | 178 | 320 | 40 x 30 x 35 |
| DG6160 | Ext. M8 | 1.43 | 110 | 101 | 282 | 800 | 60 x 50 x 55 |
| MG6161 | Ext. M8 | 1.97 | 133 | 113 | 317 | 800 | 60 x 50 x 55 |

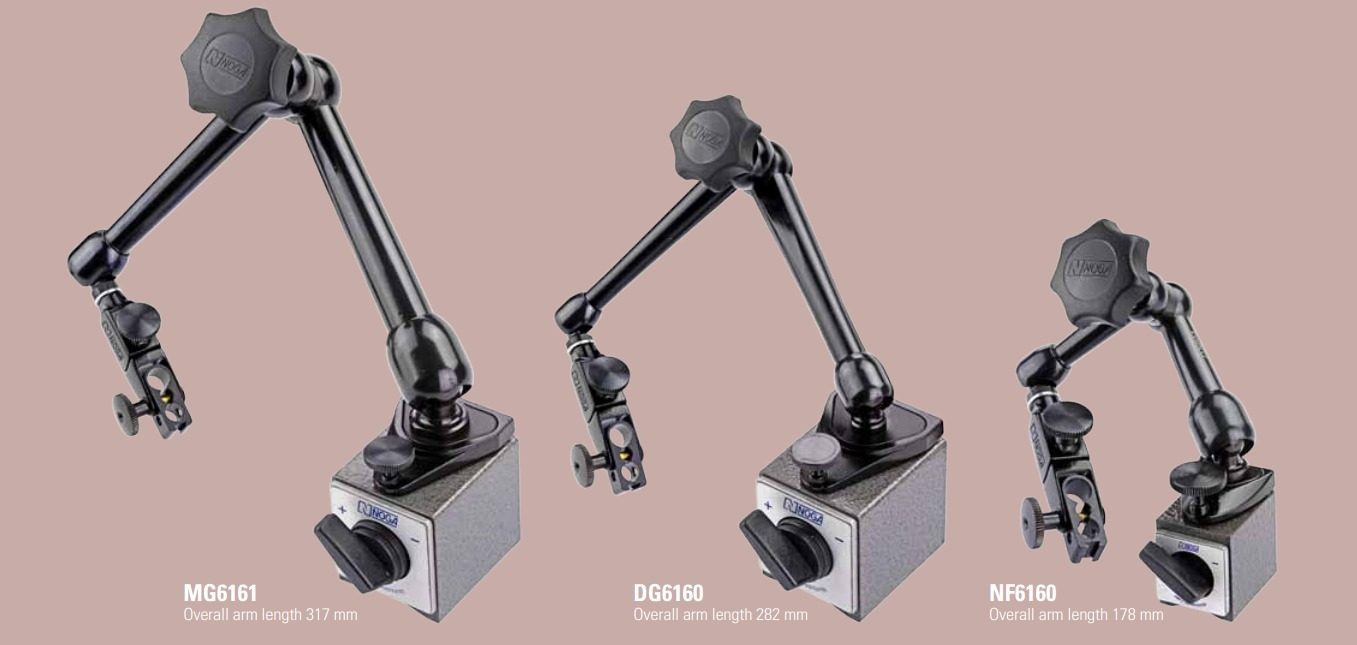

MG Holder with Double Fine Adjustment – MG6161
New Double Fine Adjustment:
Top: universal swivel clamp.
Bottom: Unique single direction.
– Unique central locking mechanism with Noga designed spring loaded bearing.
– Five-axis holder.
– Powerful on/off magnetic base 80 Kg. (176lbs)
– Instant fastens in any position.
– Fast and easy to set up gauges into required position.
– Black finished Arms.
DG Holder with double fine adjustment – DG6160
New Fine adjustment on Top with universal swivel clamp.
and Unique single direction Fine adjustment at base.
– Unique central locking mechanism with Noga designed spring loaded bearing.
– Dial gauge holder is 3 dimensional.
– Most powerful on/off magnetic base.
– Instant fixation in any position.
– Fast and easy to set up gauges into required position.
– Black finished Arms.
NF Holder with Double Fine Adjustment – NF6160
New Double Fine Adjustment:
Top: universal swivel clamp.
Bottom: Unique single direction.
– Unique central locking mechanism with Noga designed spring loaded bearing.
– Five axis holder.
– Powerful on/off magnetic base 32 Kg. (70lbs)
– Instant fastens in any position.
– Fast and easy to set up gauges into required position.
– Black finished Arms.
