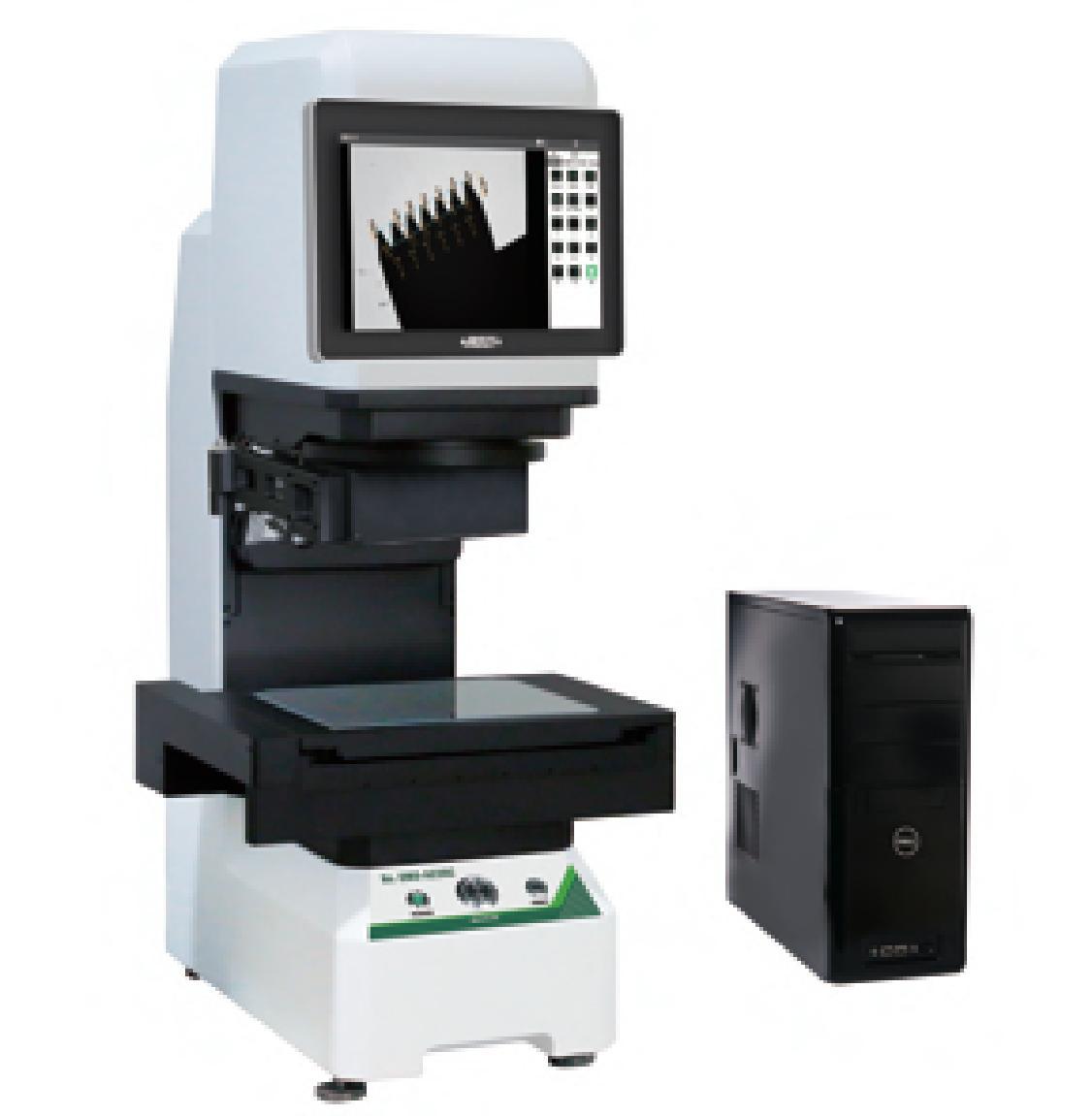

| Code | QMS-A220 | QMS-A315 | QMS-A320 | ||||
|---|---|---|---|---|---|---|---|
| Optical lens | dual-field dual-telecentric low-distortion lens | ||||||
| wide view field: Ø100mm | wide view field: Ø100mm | wide view field: Ø150mm | |||||
| small view field: Ø25mm | small view field: Ø25mm | small view field: Ø50mm | |||||
| View field range | wide view field | small view field | wide view field | small view field | wide view field | small view field | |
| 93x62mm | 20x16mm | 100x80mm | 25x20mm | 150x110mm | 50x35mm | ||
| Measurement range | 200x200mm | 130x130mm | 300x200mm | 230x130mm | 300x210mm | 200X135mm | |
| Measurement accuracy | without stitching | ±3μm | ±1μm | ±3μm | ±1μm | ±5μm | ±2μm |
| with stitching | ±(5+0.02L)μm | ±(3+0.02L)μm | ±(5+0.02L)μm | ±(3+0.02L)μm | ±(7+0.02L)μm | ±(4+0.02L)μm | |
| Repeatability | without stitching | ±1μm | ±0.5μm | ±1μm | ±0.5μm | ±1μm | ±0.5μm |
| with stitching | ±2μm | ±1.5μm | ±2μm | ±1.5μm | ±2μm | ±1.5μm | |
| Max. weight of workpiece | 5Kg | ||||||
| Measurement time | <2s | ||||||
| Measurement data | 2D Measurment | ||||||
| Power supply | 200V, 50Hz, 600W | ||||||
| Illumination system | back light | telecentric illuminator, green light | |||||
| ring light | 4-Zone circular white high light, circular (directional) low-angle green light (eletric) | ||||||
| coaxial light (optional) | Vertical illuminator, white light | ||||||
| Environmental requirement | temperature :20° C ± 2°C, relative humidity: 30%~50%, vibration: <0.002g, less than 15Hz | ||||||
| Dimension (L×W×H) | 532x480x766mm | 532x497x766mm | 669x510x883mm | ||||
| Weight | 50Kg | 60kg | 68kg | ||||
