INSIZE DIGITAL MEASURING MICROSCOPE (Model: ISM-PM200SB)

Product Overview

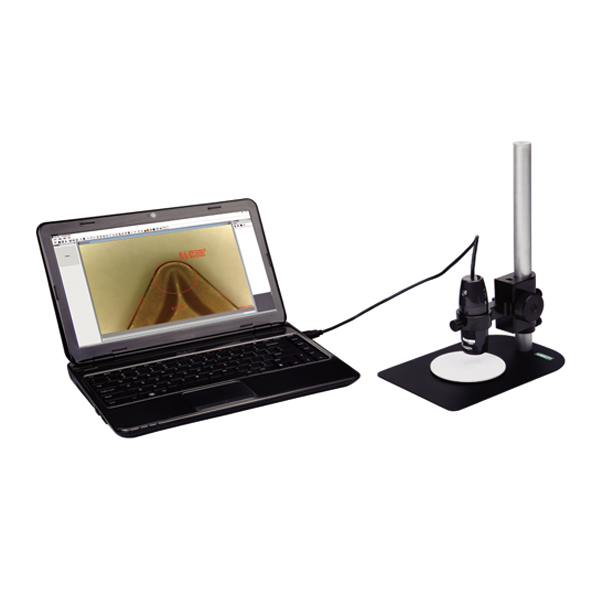

The INSIZE Digital Measuring Microscope (Model: ISM-PM200SB) is an advanced optical inspection and measurement system designed for industrial and technical applications. The system features a digital microscope unit connected via USB 2.0 cable to a computer running dedicated measurement software, mounted on a universal stand with a white/black inspection plate.

Key Features & Capabilities

• Capture Functions: Capable of taking both still pictures and video recordings.
• Software Integration: Supplied complete with measurement and analysis software on a flash disk.
• Focus Support: Includes built-in focus support and adjustable LED illumination.
• Calibration: Includes calibration rules with 0.1 mm and 1 mm graduations.
• Data Export: Direct data export capabilities to CAD or Excel.

Software Measuring Tools

• Measure length of a line or distance between two points
• Measure radius, length, and angle of an arc
• Measure area of a rectangle
• Add numbers with circles
• Measure distance between two circles
• Measure length of a continuous line
• Measure distance between two parallel lines
• Measure angle with three points
• Measure angle with two lines
• Measure radius, girth, and area of a circle
• Measure distance between point and line
• Add text annotations

Edge Detection Measurement Tools

• Automatically detect two parallel lines and calculate distance
• Automatically detect a circle and calculate radius, girth, and area
• Automatically detect an arc and calculate radius, angle, and arc length
• Automatically detect two lines and calculate angle
• Automatically detect a line and calculate length

Comparison Tools

• Create lines, angles, or circles with desired sizes to compare directly with workpieces (includes functions to create lines, create angles, and create circles with tolerance).

Technical Specifications

System Specification Table

Magnification, Focus Distance, Field View & Accuracy Table

Software Specifications

• Supported Languages: English, Japanese, Korean, German, Turkey, Portuguese, Chinese
• Compatible Operating Systems: Windows 7 / 8 / XP / Vista
