INSIZE HORIZONTAL PROFILE PROJECTORS (METAL STAGE SIZE 400×150 MM)

Code:

▪Adjust the focus by ascending and descending the projector head, the stage doesn't move up and down
▪Maximum workpiece weight 50kg

Click to Expand

INSIZE HORIZONTAL PROFILE PROJECTORS (METAL STAGE SIZE 400×150 MM)

Product Overview

The INSIZE Horizontal Profile Projectors are precision inspection and measurement instruments designed for industrial metrology applications. The product line includes models ISP-W3020 and ISP-A3000E. Focus is adjusted by ascending and descending the projector head, while the stage remains fixed in the vertical travel plane. Both models feature a maximum workpiece weight capacity of 50kg and a metal stage size of 400×150 mm.

Key Features & Capabilities

Projector Screen: Diameter of Ø300mm with a rotation range of 0°~360° (resolution: 1″ or 0.01°) and cross-hair reference lines.
Illumination System: Contour illumination (24V/150W halogen lamp, adjustable brightness) and surface illumination (24V/150W halogen lamp with adjustable position and brightness; ISP-A3000E includes 2 fibers).
Control & Data Output:
ISP-W3020 features RS232C output.
ISP-A3000E features touch buttons, a software flash disk, USB data output to Excel and CAD, and RS232C/USB output.

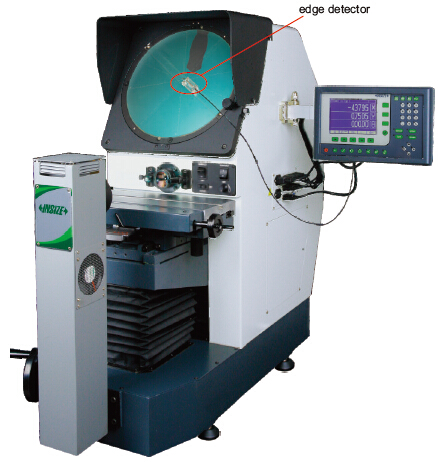

Edge Detection: Available on model ISP-A3000E (not included on ISP-W3020).
Data Processing Functions: Coordinate measurement of points, lines, center coordinates/radius of circles with three points, distance between two objects, angle measurement with four points or two lines, coordinate transformation, origin setting, and midpoint determination. ISP-A3000E additionally features automatic measurement object selection based on selective points and programming for batch measurements.

Technical Specifications

Parameter	Specification (ISP-W3020 / ISP-A3000E)
Edge Detector	Not included (ISP-W3020) / Included (ISP-A3000E)
Lens (Magnification / Field / Working Distance)	• 10X (Included): Ø30mm field, 77.7mm working distance<br>• 20X (Optional): Ø15mm field, 44.3mm working distance<br>• 50X (Optional): Ø6mm field, 38.4mm working distance<br>• 100X (Optional): Ø3mm field, 25.3mm working distance
Magnification Accuracy	±0.08%
Projector Screen Diameter	Ø300mm
Metal Stage Size	400×150 mm
Turning Range	±15°
X-Z Stage Travel Range	200×100 mm
Stage Resolution	0.5 µm
Stage Accuracy	(4+L/25) µm (L is the measuring length in mm)
Y (Focus) Travel Range	75 mm
Max. Load Capacity	50 kg
Illumination	Contour: 24V/150W halogen lamp (adjustable brightness)<br>Surface: 24V/150W halogen lamp (adjustable position and brightness)
Display Output	RS232C (ISP-W3020)<br>RS232C, USB (ISP-A3000E)
Power Supply	110/220V, 50/60Hz
Dimension (L×W×H)	830×1090×1010 mm
Weight	160 kg
