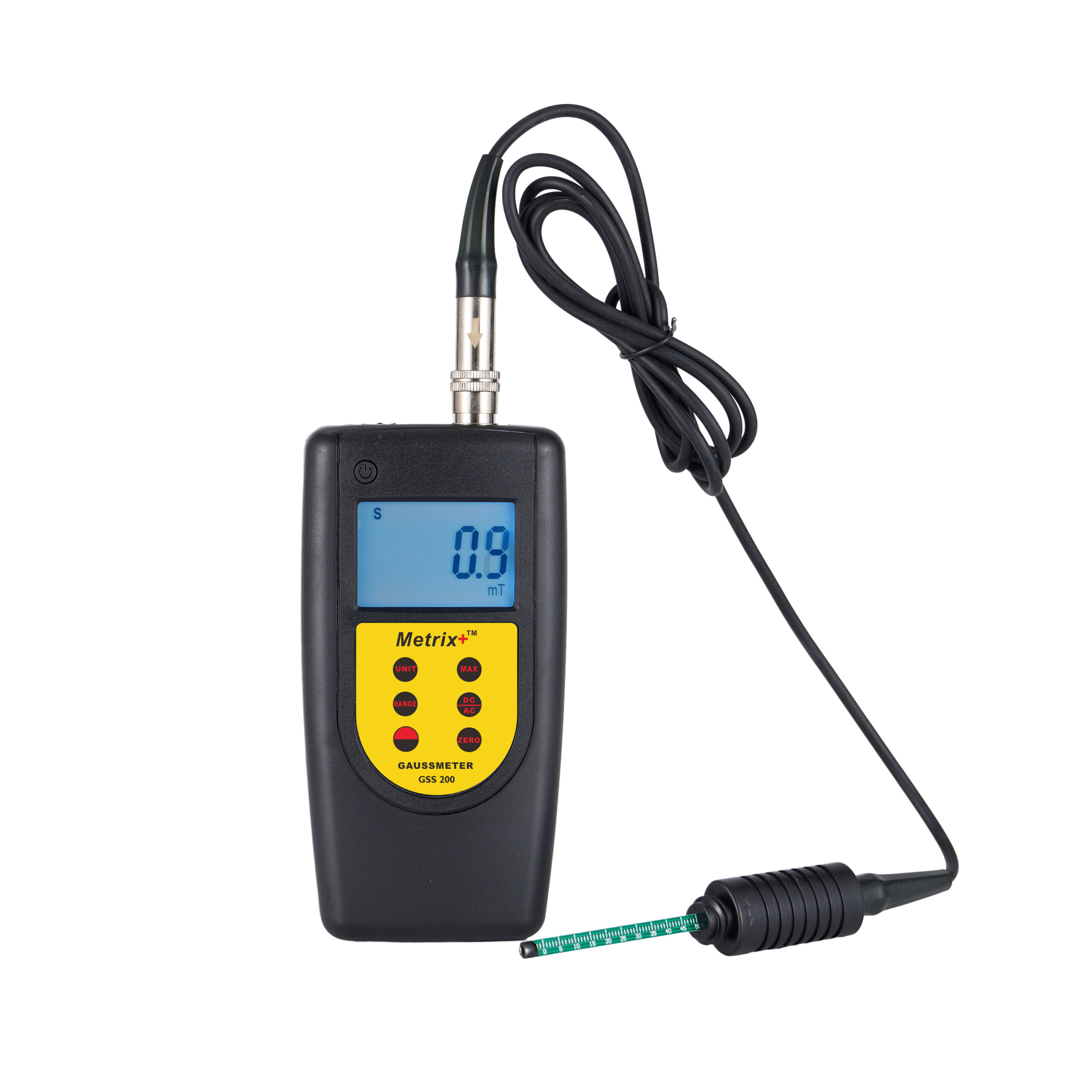

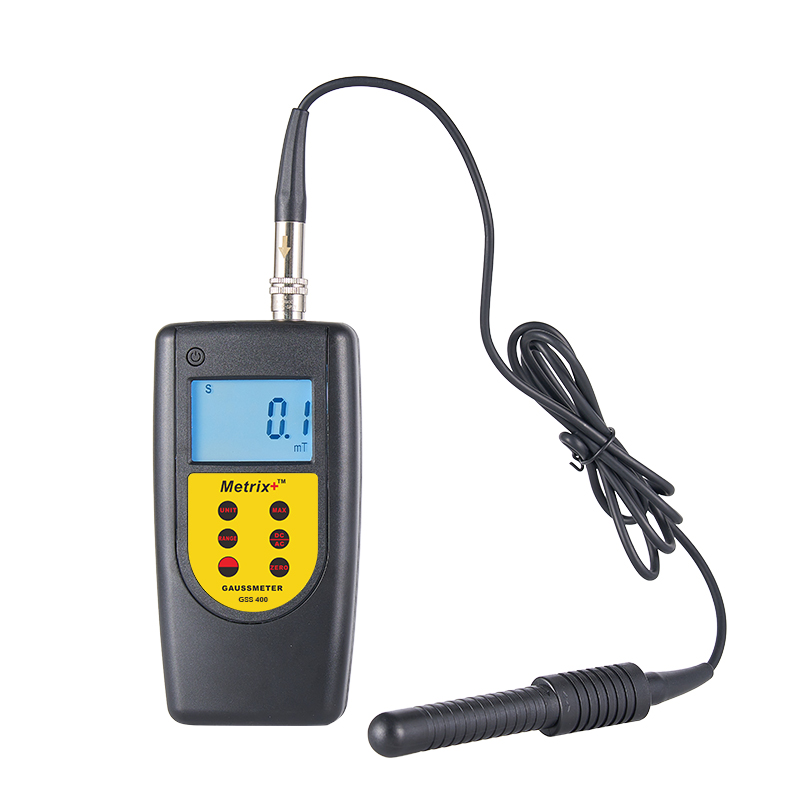

| Model | Metrix+ GSS 200 | Metrix+ GSS 400 |
| Range | 0-200mT-2000mT | |
| Frequency Range | 10 ~ 200Hz | 1 ~ 400Hz |
| Accuracy (measured in a uniform magnetic field) | 0~100mT: 2%
>100mT: 5% |
DC: 1%, AC: 1% |
| Resolution | Range 200mT: 0.01mT
Range 2000mT: 0.1mT |
|
| Magnetic field under test | DC (static), AC(dynamic) | |
| Polarity in DC field | N for positive, S for negative | |
| Units | mT(milli-tesla)/ Gs(gauss) | |
| Features | backlit display, max hold, low battery indication, auto power off | |
| Operating | Temp: 0~50C, Humidity <80% RH | |
| Power source | 4 x 1.5V AAA batteries or 5V DC power supply | |
| Dimensions | Main unit: 140 x 73 x 30mm, approx. 180g | |
| Std accessories | Main unit, sensor, manual, case | |
Our Gauss meters can measure both static magnetic fields(DC) and dynamic magnetic fields(AC). Suitable for radiation magnetic field, magnetic remanence, earth magnetic field, all kinds of magnetic induction intensity, etc.
Gauss meter sensors work on Hall effect principle, where the hall sensor generates a voltage proportional to the magnetic flux density or magnetic field strength. The voltage signal is filtered using low drift amplifiers and other necessary filters, to display Tesla values to estimate the strength of magnetic fields.
