LARGE THIMBLE MICROMETER HEAD CODE 6373

Large thimble diameter for easy reading Graduation 0.01mm Code Range Stem Spindle tip Accuracy 6373-65 0-6.5mm with clamp nut flat (carbide) 3µm 6373-65W 0-6.5mm plain flat (carbide) 3µm 6373-65S 0-6.5mm with clamp nut spherical (SR3) 3µm 6373-65WS 0-6.5mm plain spherical (SR3) 3µm 6373-13 0-6.5mm with clamp nut flat (carbide) 3µm 6373-13W 0-6.5mm plain flat (carbide)

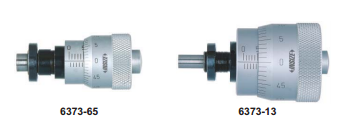

large thimble micrometer head-6373_1

  • Large thimble diameter for easy reading
  • Graduation 0.01mm
Code Range Stem Spindle tip Accuracy
6373-65 0-6.5mm with clamp nut flat (carbide) 3µm
6373-65W 0-6.5mm plain flat (carbide) 3µm
6373-65S 0-6.5mm with clamp nut spherical (SR3) 3µm
6373-65WS 0-6.5mm plain spherical (SR3) 3µm
6373-13 0-6.5mm with clamp nut flat (carbide) 3µm
6373-13W 0-6.5mm plain flat (carbide) 3µm

large thimble micrometer head-6373_2
