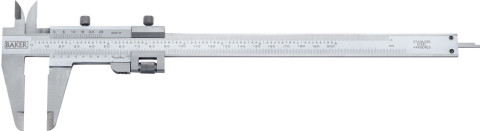

BAKER MECHANICAL VERNIER CALIPER (WITH FINE ADJUSTMENT)

Name: BAKER MECHANICAL VERNIER CALIPER (WITH FINE ADJUSTMENT)
Brand: Baker Gauges
SKU: VCF10

Code:

VCF series MECHANICAL Vernier calipers available from 0-130mm to 0-980mm with fine adjustment. Measures Od, ID, Step and Depth. Robust, hardened and ground SS jaws & beam.

BUY NOW DOWNLOAD CATALOG

f in

Click to Expand

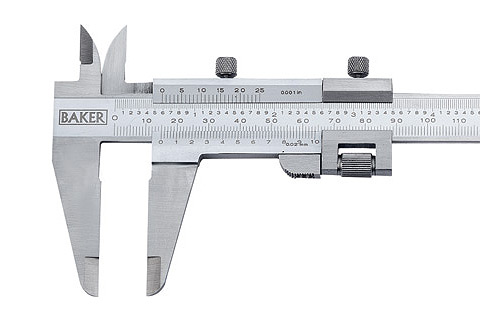

BAKER MECHANICAL VERNIER CALIPER (WITH FINE ADJUSTMENT)

Product Overview

The Baker Mechanical Vernier Caliper (VCF Series) is a robust measuring instrument designed for precision industrial applications. Featuring hardened and ground stainless steel jaws and a beam, this instrument is engineered for measuring Outside Diameter (OD), Inside Diameter (ID), Step, and Depth. Every gauge is supplied with a calibration certificate giving actual values and is packaged in a sleek plastic box.

Key Features & Capabilities

Calibration: Every gauge carries a calibration certificate giving actual values
Resolution: With 0.02 mm / 0.001" Least Count
Measurement Functions: Measures OD, ID, Step, and Depth
Accuracy: Accuracy as per DIN 862
Construction: Robust, hardened, and ground stainless steel jaws and beam
Adjustment: Equipped with fine adjustment mechanism
Packaging: Supplied in a sleek plastic box

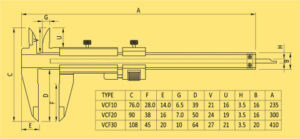

Technical Specifications

Type / Model Code	Reading / Least Count	Range
VCF10	0.02 mm / 0.001"	0-130 mm / 0-5"
VCF20	0.02 mm / 0.001"	0-180 mm / 0-7"
VCF30	0.02 mm / 0.001"	0-280 mm / 0-11"
VCF45	0.02 mm / 0.001"	0-430 mm / 0-17"
VCF60	0.02 mm / 0.001"	0-580 mm / 0-23"
VCF80	0.02 mm / 0.001"	0-780 mm / 0-31"
VCF100	0.02 mm / 0.001"	0-980 mm / 0-39"
VCF150	0.02 mm / 0.001"	0-1500 mm / 0-60"
VCF200	0.02 mm / 0.001"	0-2000 mm / 0-80"
