3205_1

  • Graduation 0.01mm

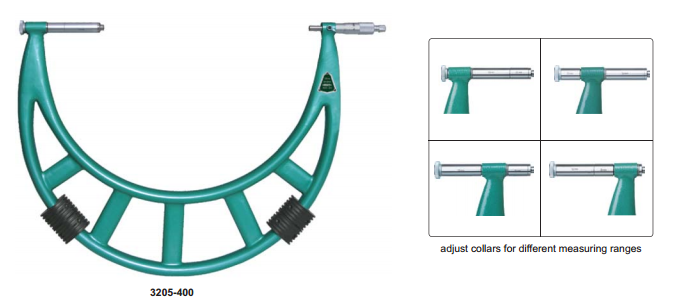

  • Adjust collars for different measuring ranges
  • Ratchet stop
  • Carbide measuring faces
  • Supplied with setting standards
 Code Rnage Type Accuracy L b
 3205-400 300-400mm  A  11μm 410 250
3205-500 400-500mm A 13μm 510 295
3205-600 500-600mm A 14μm 610 345
3205-700 600-700mm A 16μm 710 395
3205-800 700-800mm A 18μm 810 445
3205-900 800-900mm A 20μm 910 495
3205-1000 900-1000mm A 22μm 1010 545
3205-1200 1000-1200mm B 22μm 1210 645
3205-1400 1200-1400mm B 24μm 1410 745
3205-1600 1400-1600mm B 28μm 1610 845
3205-1800 1600-1800mm B 31μm 1810 945
3205-2000 1800-2000mm B 34μm  2010 1045
