- Resolution: 0.01mm/0.0005″
- Buttons: on/off, zero set, mm/in, data set
- Battery SR44 or LR44

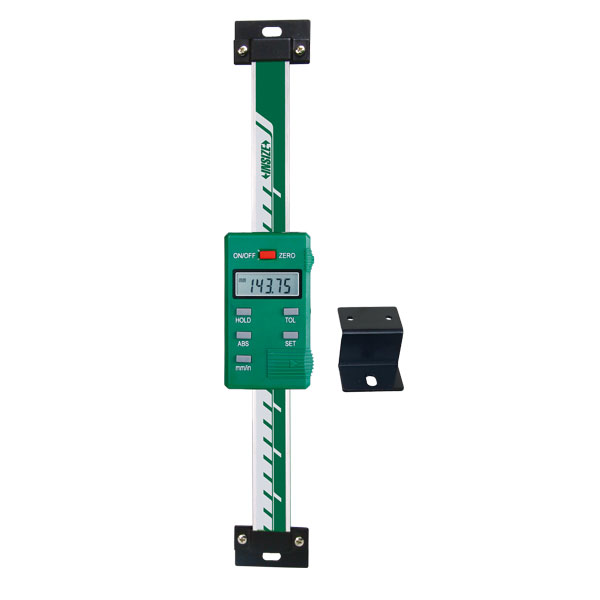

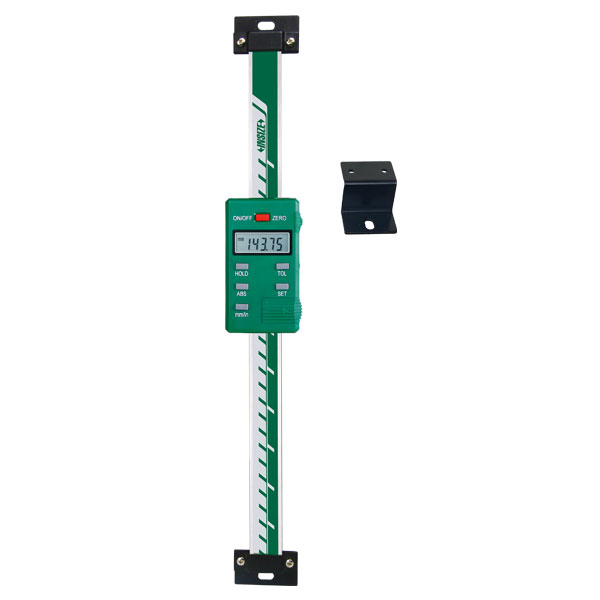

- Digital vertical scale made of stainless steel
- Digital vertical scale supplied with bracket to be mounted on the back
 |
 |
 |
| Code | Range | Accuracy | B | C | D | E | F | L(mm) |
| 7102-100 | 100mm | ±0.02mm | 4 | 20 | 6 | 24 | 40 | 245 |
| 7102-150 | 150mm | ±0.03mm | 4 | 20 | 6 | 24 | 40 | 296 |
| 7102-200 | 200mm | ±0.03mm | 4 | 20 | 6 | 24 | 40 | 345 |
| 7102-300 | 300mm | ±0.04mm | 4 | 20 | 6 | 24 | 40 | 445 |
| 7102-400 | 400mm | ±0.05mm | 4 | 20 | 6 | 24 | 40 | 545 |
| 7102-500 | 500mm | ±0.05mm | 5.5 | 24 | 8 | 32 | 45 | 685 |
| 7102-600 | 600mm | ±0.08mm | 5.5 | 215 | 8 | 32 | 45 | 785 |
| 7102-800 | 800mm | ±0.10mm | 5.5 | 215 | 8 | 32 | 45 | 985 |
| 7102-1000 | 1000mm | ±0.10mm | 5.5 | 215 | 8 | 32 | 45 | 1185 |
