MITUTOYO-SERIES 700-QUICK-MINI

Name: MITUTOYO-SERIES 700-QUICK-MINI
Brand: MITUTOYO
SKU: 700-QUICK-MINI

Code:

Lightweight and palm-sized. Highly suitable for quick dimensional inspection of small, thin and delicate objects. Functions: origin setting and zero-setting. Application examples Measurement of small objects: pearls, jewels, shims for engine tappets and screws. Measurement of thin objects: printing paper, polyethylene bags, sheet materials, foods including noodles, lenses for glasses, media substrates, foils, thin plates and medical products including filter

f in

Click to Expand

MITUTOYO-SERIES 700-QUICK-MINI

Product Overview

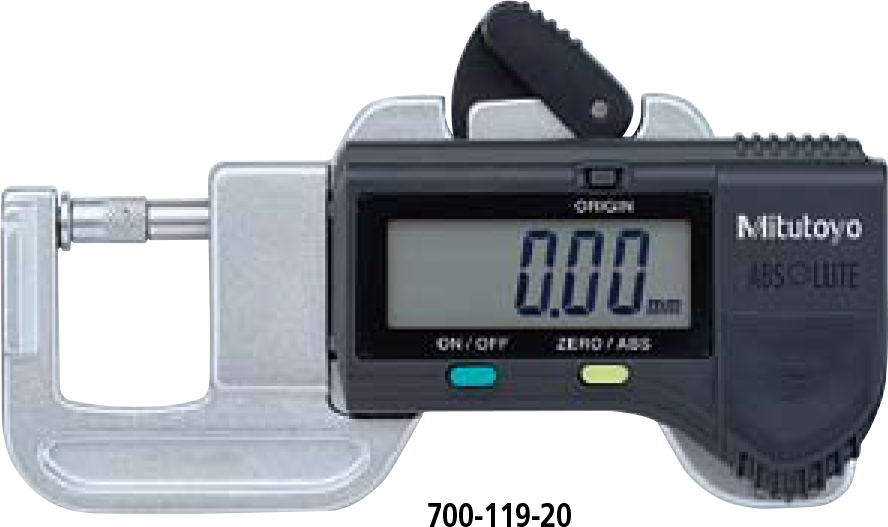

The Mitutoyo Series 700 Quick-Mini is a lightweight, palm-sized digital measuring instrument designed for rapid dimensional inspection. It is engineered for precision measurement of small, thin, and delicate objects.

Key Features & Capabilities

Absolute Measurement: Features origin setting and zero-setting functions.
Ergonomic Design: Lightweight and compact form factor for handheld operation.
Versatile Application: Suitable for a wide range of small and thin components.
Standard Accessory: Includes one SR44 battery (938882) for initial operational checks.

Technical Specifications

Parameter	Specification
Order No.	700-119-20
Range	0 – 12mm
Resolution	0.01mm
Accuracy*	±0.02mm
Mass	70g

\Excluding quantizing error*

Applications

Small Objects: Pearls, jewels, shims for engine tappets, and screws.
Thin Objects: Printing paper, polyethylene bags, sheet materials, food products (including noodles), lenses for glasses, media substrates, foils, thin plates, and medical products (including filter cloths).
Fine Lines and Bars: Fishing lines, dental reamers, pasta, drills for PCB, and hard wiring.
