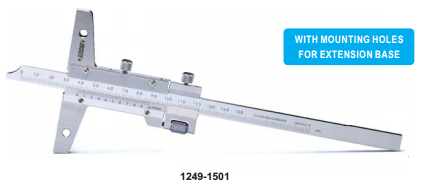

vernier depth gauge-1249_1

  • With fine adjustment
  • Made of stainless steel
  • Satin chrome plating finish on reading surface
  • Optional accessory: extension base (code 6141)

vernier depth gauge-1249_2

Graduation 0.02mm

Code Range Accuracy
1249-1501 0-150mm 0.03mm
1249-2001 0-200mm 0.03mm
1249-3001 0-300mm 0.04mm



Range L c d
0-150mm 256 16 100
0-200mm 306 16 100
0-300mm 406 16 100
