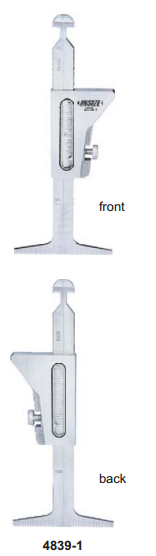

INSIZE PIPE WELDING GAGE (CODE – 4839)

Product Overview

The INSIZE Pipe Welding Gage (Code 4839-1) is a precision stainless steel measuring instrument designed for technical inspection and dimensional verification of pipe preparations and welds. It enables single-tool measurement across eight distinct parameters including bevel angle, pipe wall thickness, internal misalignment, fit-up gap, crown height, socket weld marking line distance, and fillet weld dimensions.

Key Features & Capabilities

Durable Construction: Manufactured entirely from stainless steel.
Multi-Parameter Inspection:
Bevel on end preparation
Pipe wall thickness
Internal misalignment
Fit-up gap determination
Crown height
Distance between socket weld marking lines
Fillet weld length and height
Dual Unit Markings: Incorporates metric and imperial graduations on the body for direct reading.

Technical Specifications

Measurement Parameter	Range	Graduation	Accuracy
Bevel on End Preparation	37.5°	—	±1°
Pipe Wall Thickness	0 – 45 mm (0 – 1-3/4")	1 mm (1/16")	±0.5 mm
Internal Misalignment	0 – 35 mm (0 – 1-3/8")	1 mm (1/32")	±0.5 mm
Fit-up Gap	1.6 mm, 2.4 mm	—	±0.1 mm
Crown Height	0 – 35 mm (0 – 1-3/8")	1 mm (1/32")	±0.5 mm
Distance Between Two Marking Lines of Socket Weld	0 – 60 mm (0 – 2-3/8")	1 mm (1/16")	±0.5 mm
Fillet Weld Length	0 – 30 mm (0 – 1-1/4")	1 mm (1/16")	±0.5 mm
Fillet Weld Height	0 – 35 mm (0 – 1-3/8")	1 mm (1/32")	±0.5 mm
