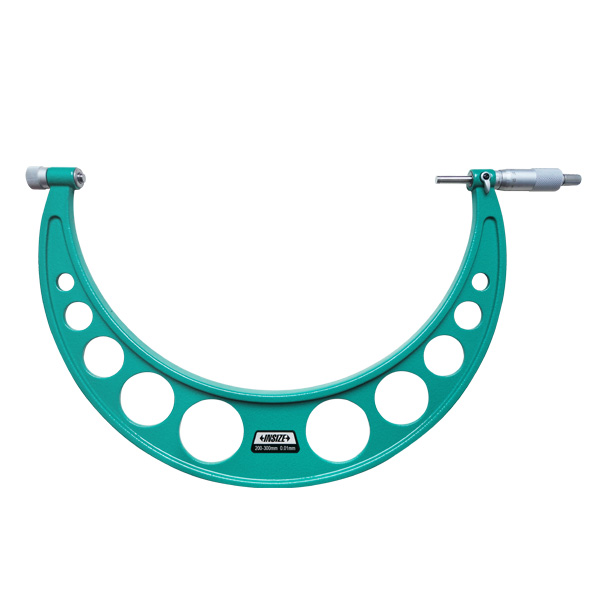

INSIZE OUTSIDE MICROMETER WITH INTERCHANGEABLE ANVILS (CODE – 3206)

Code:

▪Graduation 0.01mm
▪Ratchet stop
▪Carbide measuring faces
▪Supplied with setting standards

Click to Expand

INSIZE OUTSIDE MICROMETER WITH INTERCHANGEABLE ANVILS (CODE – 3206)

Product Overview

The INSIZE Outside Micrometer with Interchangeable Anvils (Series 3206) is a precision industrial measuring instrument designed for versatile external dimension verification across wide measuring ranges. Manufactured to meet DIN863-3 standards, this series incorporates carbide measuring faces for enhanced wear resistance and durability in shop-floor environments. Available in a comprehensive range from 0-50mm up to 900-1000mm, these micrometers are supplied with interchangeable anvils and corresponding setting standards to ensure accurate calibration across all configurations.

Key Features & Capabilities

Graduation: 0.01mm for precise reading
Ratchet Stop: Ensures consistent measuring force and repeatable readings
Carbide Measuring Faces: High-durability contact points for extended service life

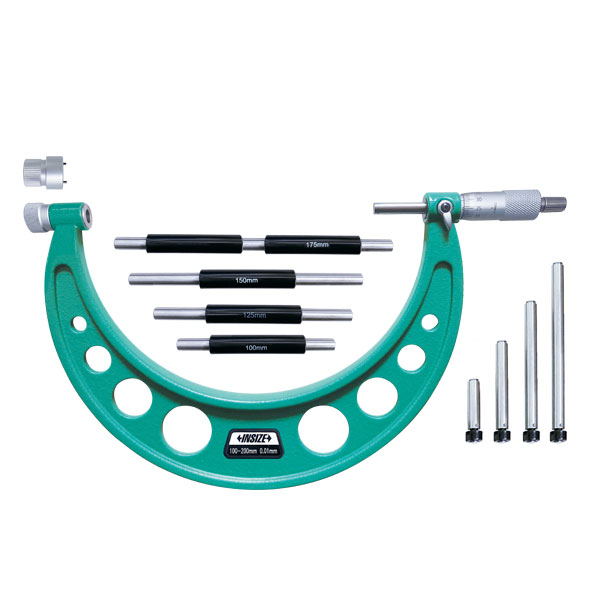

Interchangeable Anvils: Supplied with interchangeable anvils (included) to cover multiple measuring ranges per model
Standards Compliance: Meets DIN863-3 standards
Calibration Support: Supplied complete with setting standards for accurate zero-setting

Technical Specifications

Code	Range	Type	Accuracy	$L$ (mm)	$b$ (mm)	Setting standard (included)
3206-50A	0-50mm	A	4µm	58	35	25
3206-100A	0-100mm	A	5µm	108	57	25, 50, 75
3206-150A	0-150mm	A	6µm	158	82	25, 50, 75, 100, 125
3206-151A	50-150mm	A	6µm	158	82	50, 75, 100, 125
3206-200A	100-200mm	A	7µm	208	114	100, 125, 150, 175
3206-300A	150-300mm	A	9µm	308	165	150, 175, 200, 225, 250, 275
3206-301A	200-300mm	A	9µm	308	165	200, 225, 250, 275

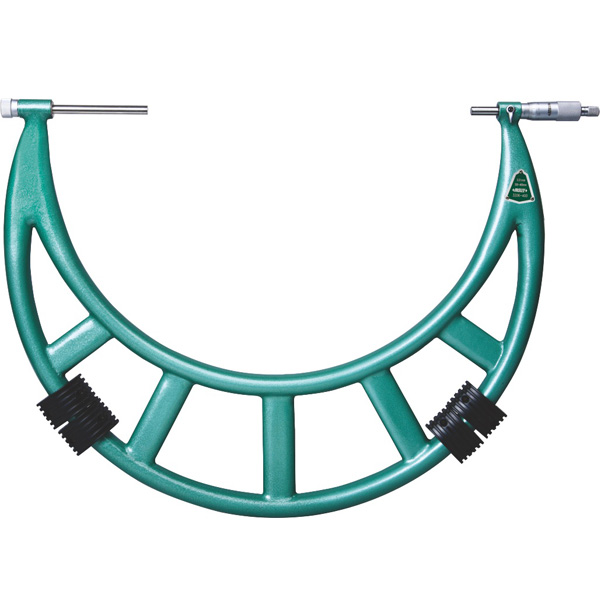

3206-400	300-400mm	B	11µm	409	224	325, 375
3206-500	400-500mm	B	13µm	509	275	425, 475
3206-600	500-600mm	B	14µm	609	321	525, 575
3206-700	600-700mm	B	16µm	709	371	625, 675
3206-800	700-800mm	B	18µm	809	426	725, 775
3206-900	800-900mm	B	20µm	909	476	825, 875
3206-1000	900-1000mm	B	22µm	1009	576	925, 975
