INSIZE UNIVERSAL MAGNETIC STAND (CODE – 6210)

Name: INSIZE UNIVERSAL MAGNETIC STAND (CODE – 6210)
Brand: INSIZE
SKU: 6210-81

Code:

For digital/dial indicators and dial test indicators

DOWNLOAD CATALOG

f in

Click to Expand

INSIZE UNIVERSAL MAGNETIC STAND (CODE – 6210)

Product Overview

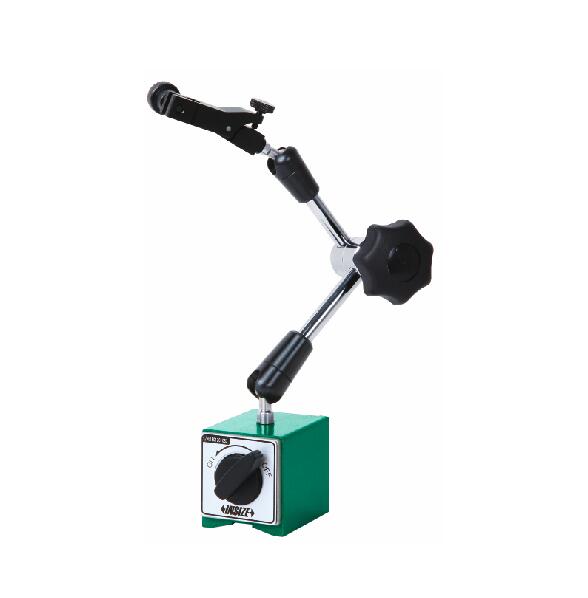

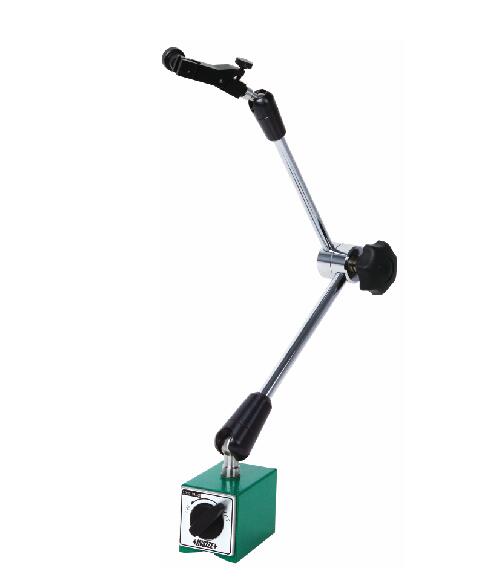

The INSIZE Universal Magnetic Stand (Code – 6210) is a precision holding system designed for digital/dial indicators and dial test indicators. Available in models 6210-81, 6210-80, and 6210-100, these universal magnetic stands feature fine adjustment and dovetail grooves for secure and versatile measurement setups in industrial and metrology applications.

Key Features & Capabilities

Designed for digital/dial indicators and dial test indicators
Equipped with fine adjustment mechanisms
Integrated dovetail groove for versatile indicator mounting
Magnetic base with on/off control for secure positioning on ferrous surfaces

Technical Specifications

Code	Magnetic Force	Applicable Holding Stem	Remark
6210-81	80kgf	Ø8mm	With fine adjustment and dovetail groove
6210-80	80kgf	Ø8mm	With fine adjustment and dovetail groove
6210-100	100kgf	Ø8mm	With fine adjustment and dovetail groove
