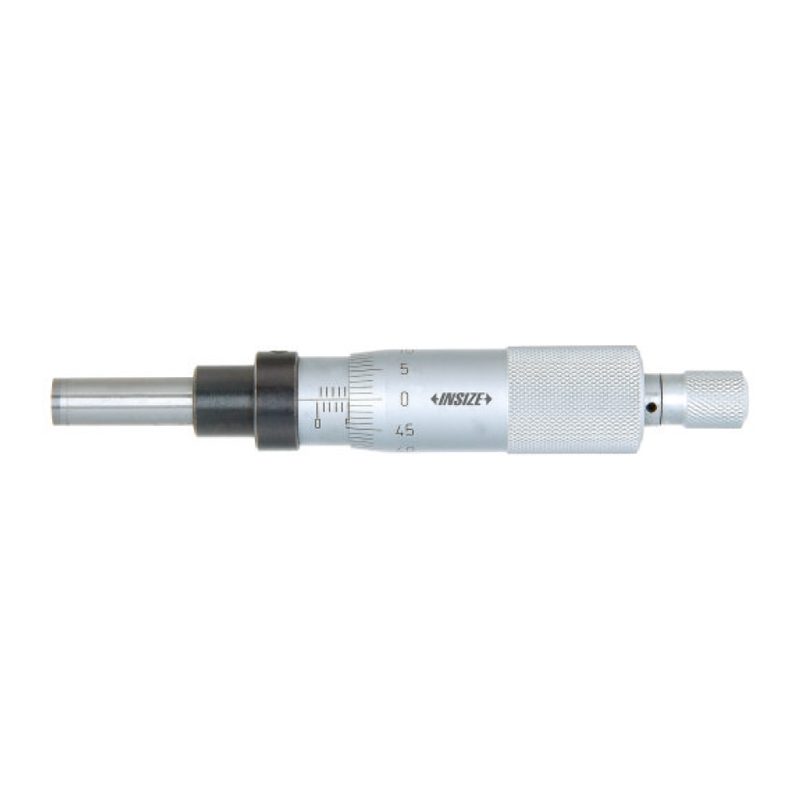

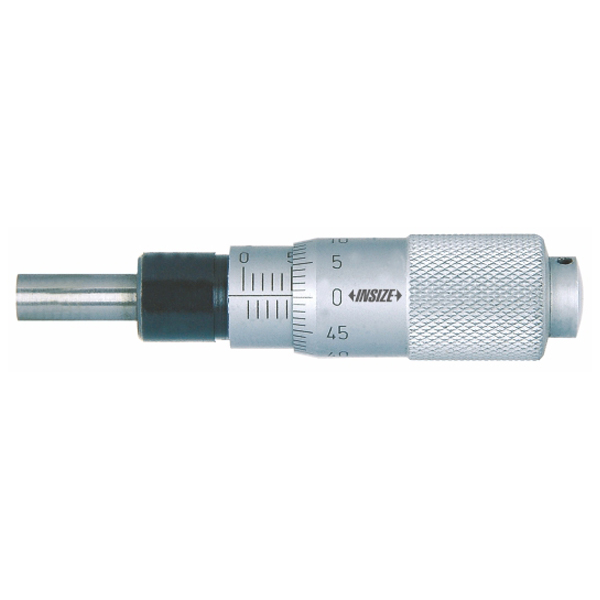

INSIZE MICROMETER HEAD (CODE – 6386)

Code:

▪Meet DIN863-2
▪Graduation 0.01mm

Click to Expand

INSIZE MICROMETER HEAD (CODE – 6386)

Product Overview

The INSIZE Micrometer Head (Code 6386) series is engineered for precision measurement applications, offering a range of 0-13mm with a graduation of 0.01mm. Built to meet DIN 863-2 standards, this professional measuring instrument is available in multiple model variants featuring plain or clamp nut stems, flat or spherical spindle tips, and optional spindle lock mechanisms.

Key Features & Capabilities

Meets DIN863-2 standards for quality and accuracy
Precision graduation of 0.01mm
Available in multiple configurations including plain stems, clamp nuts, and spindle locks
Spindle tip options include flat and spherical (SR5) designs

Technical Specifications

Model Specification Matrix

Code	Range	Stem	Spindle Tip	Remark	Accuracy
6386-13	0-13mm	with clamp nut	flat	—	3µm
6386-13W	0-13mm	plain	flat	—	3µm
6386-13S	0-13mm	with clamp nut	spherical (SR5)	—	3µm
6386-13WS	0-13mm	plain	spherical (SR5)	—	3µm
6386-13P	0-13mm	with clamp nut	flat	with spindle lock	3µm
6386-13WP	0-13mm	plain	flat	with spindle lock	3µm
