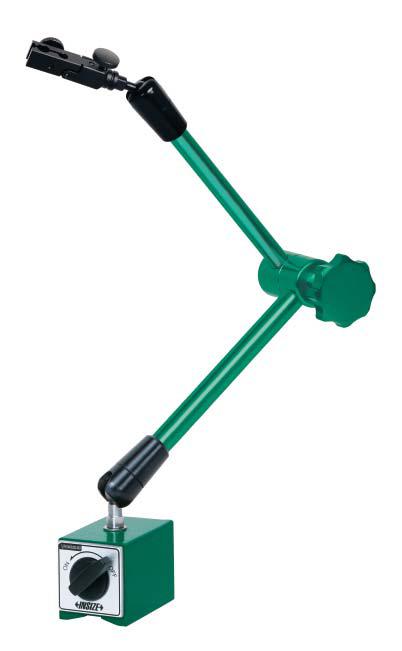

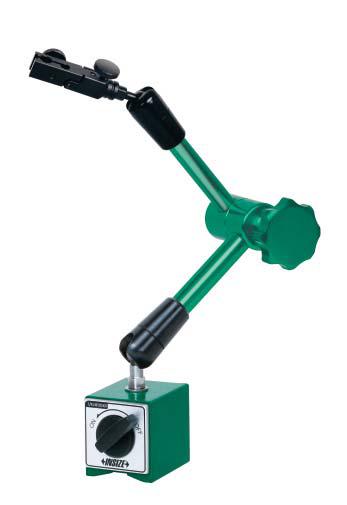

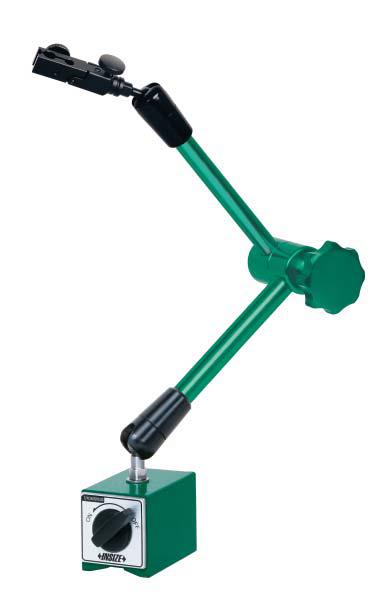

INSIZE HYDRAULIC UNIVERSAL MAGNETIC STAND (CODE – 6229)

Code:

▪Hydraulic pressure is adjustmnet
▪For digital/dial indicators and dial test indicators

Click to Expand

INSIZE HYDRAULIC UNIVERSAL MAGNETIC STAND (CODE – 6229)

Product Overview

The INSIZE Hydraulic Universal Magnetic Stand (Code – 6229) series is engineered for secure and precise positioning of digital indicators, dial indicators, and dial test indicators. Featuring an adjustable hydraulic pressure system, these stands provide stable multi-axis articulation and secure magnetic base mounting. Available in four distinct models (6229-60, 6229-80, 6229-100, and 6229-101), the series accommodates varying height and reach requirements with integrated dovetail grooves and stem holes.

Key Features & Capabilities

Hydraulic Adjustment: Integrated hydraulic pressure system for smooth and precise joint positioning and locking.
Indicator Compatibility: Designed for use with digital indicators, dial indicators, and dial test indicators.
Universal Articulation: Equipped with fine adjustment mechanisms and dovetail grooves across all models.
Holding Stem: Standardized 8mm applicable holding stem across the entire series.

Technical Specifications

Model Code	Magnetic Force	Applicable Holding Stem	Remark / Features
6229-60	60 kgf	Ø8mm	With fine adjustment and dovetail groove
6229-80	80 kgf	Ø8mm	With fine adjustment and dovetail groove
6229-100	100 kgf	Ø8mm	With fine adjustment and dovetail groove
6229-101	100 kgf	Ø8mm	With fine adjustment and dovetail groove

Dimensional Specifications by Model

Model Code	Base Dimensions [50(W) x 60(D) mm / 50(W) x 75(D) mm]	Vertical Height / Structure
6229-60	50(W) x 60(D) mm	Total height: 300 mm
6229-80	50(W) x 60(D) mm	Total height: 350 mm
6229-100	50(W) x 75(D) mm	Total height: 446 mm
6229-101	50(W) x 75(D) mm	Total height: 545 mm
