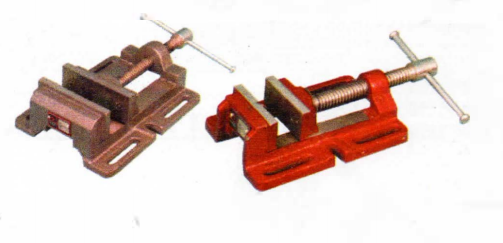

Drill vice heavy duty

CODE NO. 813 (Cl Body) CODE NO. 813S (SG Iron Body) SIZE IN INCHES 3 4 5 6 8 Width of Jaws 75 100 125 150 200 Opening of Jaws 40 45 50 50 70 Depth of Jaws 100 130 135 180 225 Height overall in mm 70 80 95 95 110 Approx. Weight 813

Download PDF

CODE NO. 813 (Cl Body)

CODE NO. 813S (SG Iron Body)

DRILL VICE HEAVY DUTY

SIZE IN INCHES	3	4	5	6	8
Width of Jaws	75	100	125	150	200
Opening of Jaws	40	45	50	50	70
Depth of Jaws	100	130	135	180	225
Height overall in mm	70	80	95	95	110
Approx. Weight 813 in kgs	4	6	8.5	12.5	23
Approx. Weight 813S in kgs	3	5	7	11	—
