• Data from tools with Digimatic output function can be sent to a PC via wireless communication.
• With functions and performance inherited from U-WAVE-T, the compact and thinner design provides better fitting to an instrument and improved operability, which enables further improvement of efficiency.
• The data interface function of the U-WAVE-R standard accessory software enables data input to commonly available software (Microsoft Excel, Notepad, etc.) by keyboard input.
• USB-ITPAK V2.1 supports U-WAVE! Loading multiple measurement data into separate Excel sheets, or simultaneous measurement using the special event drive is now available without the need for macro programming yourself. (Automatic loading in a certain interval is available with a timer function.)

U-WAVE fit system configuration

U-WAVE fit (U-WAVE-TC / TM) System Communication Specifications

• Wireless communication

Use of U-WAVE is allowed in the following countries :-

This product is a radio equipment classified in the 2.4 GHz Wide-band Low Power Data Communication System.
To use this product, conformity to the radio law of each country is required.

For use in countries other than those below, please contact your dealer or nearest Mitutoyo sales office. To use in countries other than the country where you purchased the product, please contact your dealer or nearest Mitutoyo sales office.

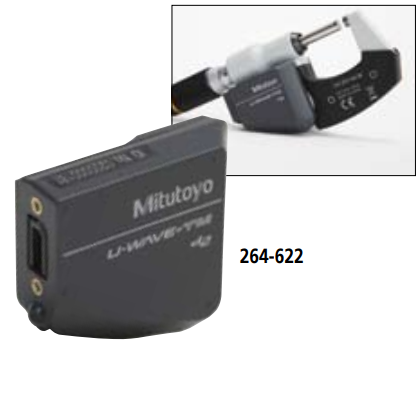

Measurement data wireless communication system U-WAVE-TC / TM (U-WAVE fit)

Type of transmission unit

SPECIFICATIONS

Transmits measurement data to U-WAVE-R. Select IP67 or buzzer model according to your application.

Note: IP67 model is water/dust-proofed suitable for the factory floor.

Compatibility of measuring tool and unit

Measurement data wireless communication system U-WAVE

• Data from Digimatic gages can be loaded to a PC easily.
• Wireless communication eliminates cabling, improving measuring operability.
• The Data Interface Function of the U-WAVE-R standard accessory software enables data input to commonly available software by keyboard input (Microsoft Excel, Notepad, etc.).
• USB-ITPAK V2.1 supports U-WAVE Loading multiple measurement data into separate Excel sheets, or simultaneous measurement using the special event drive is now available without the need for macro programming. (Automatic loading in a certain interval is available with the timer function.)

U-WAVE system configuration

U-WAVE-T System Communication Specifications

Wireless communication

Use of U-WAVE is allowed in the following countries :-

This product is a radio equipment classified in the 2.4 GHz Wideband Low Power Data Communication System. To use this product, conformity to the radio law of each country is required.

For use in countries other than those below, please contact your dealer or nearest Mitutoyo sales office.

To use in countries other than the country where you purchased the product, please contact your dealer or nearest Mitutoyo sales office.

Measurement data wireless communication system U-WAVE

Data format

Notes on identification of measurement data and multiple systems operation

Following the above format, the U-WAVE data format starts with a 4-digit code where the first two digits
represent receiver channels and the last two are transmitter channels. The large number of transmitter/ receiver combinations possible with this scheme ensures that the receivers in a factory measurement system only accept data from the intended transmitters, even when several receivers are all within communication range of different transmitters using the same channel.

Different frequency bands (up to 15 available) may also be used to further ensure that there are no communication
problems between adjacent U-WAVE-R units.

Optional Accessories for U-WAVE-T

U-WAVE-T mounting plate

Since the standard cable clip is not sufficient to support the U-WAVE-T on a Digimatic gage, a mounting plate is provided. The mounting plate can be fixed to the gage by the easily detachable hook-and-eye type fasteners provided. Batteries can be replaced without needing to detach the U-WAVE-T from the gage.

1. To avoid damaging the threaded holes in the plastic body of the U-WAVE-T unit, the mounting screws should be tightened only just sufficiently to grip. Repeated removal of these screws should also be avoided for the same reason.
2. In order to avoid loss of adhesion, do not allow oil or coolant to come into contact with the bonding surfaces of the detachable fasteners.

U-WAVE-T mounting plate for QM-Height Order No.02AZE990

Standard accessories :-
• Detachable fasteners: 1 set
• Mounting screw: 4 pcs

Mounting diagram for QM-Height (02AZE990)

Application examples of the mounting plate

Data request support from PC. Special order U-WAVEPAK (Event drive)

For standard type U-WAVE, the currently displayed data can be sent by pressing the data switch. This is called “button drive mode”.

In the “event drive mode”, the measurement value is checked every 0.5 seconds and measurement data is automatically sent if there is a change. At this time, the data switch is disabled. The sent data is written in the U-WAVE-R memory, and only the latest data is kept, it is not output to the PC. The data is loaded to the PC from the U-WAVE-R memory when the data request command is sent. The mode switching between “button drive” and “event drive” is enabled by the special order U-WAVEPAK (Event drive).

n the event drive mode, pressing the data switch on the Digimatic gage is not necessary. PC operation enables loading data from multiple gages at once.

To perform simultaneous measurement using USB-ITPAK V2.1, a special order U-WAVEPAK (Event drive) is required.

When using the event drive please note :-

• The battery life is shorter than in normal mode. The battery lasts approximately 20 days with continuous use.
  Switching to the button mode when the battery is not in use extends the battery life.
• When using several Digimatic gages (U-WAVE-T), communication errors may occur because of radio interference in simultaneous measuring. Therefore, it is required to add U-WAVE-R and set different frequencies (15ch) to avoid radio wave interference.
