BAKER NPTF, ANPT Thread Gauges

Product Overview

Baker NPTF and ANPT gauges are precision instruments designed for the inspection of Dryseal pipe threads. These threads are engineered to form a leak-proof joint without the requirement of additional sealants. The gauge system utilizes a combination of plug and ring gauges to verify thread size, taper, and crest truncation.

Key Features & Capabilities

Dryseal Compatibility: Specifically designed for NPTF threads that eliminate the need for joint sealants.

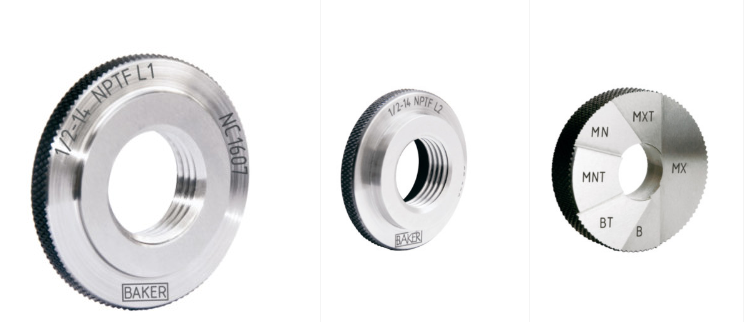

Comprehensive Verification: System includes L1 and L3 plug gauges, L1 and L2 ring gauges, and 6-step crest check gauges.
Precision Inspection: Enables verification of component thread size and taper along the entire thread length.
Crest Truncation Control: 6-step crest check gauges are utilized to ensure the crest diameter and truncation of component threads remain within specified limits.

Technical Specifications

Type	Standard	Plug Gauges	Ring Gauges
NPTF	ANSI/ASME B 1.20.5	L1 & L3 (Basic Step or Min/Max Step), 6 Step Crest Check Plug	L1 & L2 (Basic Step or Min/Max Step), 6 Step Crest Check Ring
ANPT	SAE AS71051B	L1 & L3 (Basic Step or Min/Max Step), 6 Step Crest Check Plug	L1 & L2 (Basic Step or Min/Max Step), 6 Step Crest Check Ring

Technical Notes

NPTF and ANPT threads require additional gauging to ensure truncation is maintained within specified limits.
L1 & L3 plug gauges and L1 & L2 ring gauges are used in combination to verify the size and taper of component threads.
6-step crest check gauges are used to verify the crest diameter and truncation of component threads along the thread length.
