BAKER ELECTRONIC GAUGE: TWIN CHANNEL: 945 COLUMN

Product Overview

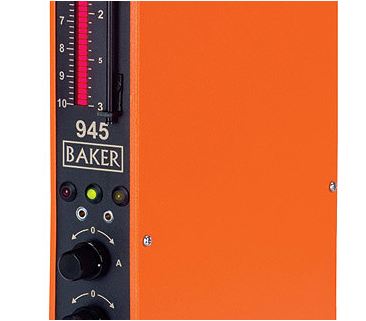

The Baker Electronic Gauge: Twin Channel: 945 Column is a precision twin channel electronic gauging unit designed for industrial shop floor environments. It features a 254 mm tall analogue red LED bar graph display with 100 segments and variable bar graph intensity selection. The unit offers multiple metric and inch measurement ranges to support demanding quality control and dimensional inspection tasks.

Key Features & Capabilities

Twin channel gauge units with selectable probe combinations of +A, -A, +B, -B, +A +B, +A -B, -A +B, -A -B
Inch and metric measuring ranges
Red, green, and yellow tolerance lamps for REJECT, ACCEPT, and REWORK indications
RS232 data output
Comprehensive outputs for further processing
Compatible with half-bridge and LVDT type inductive measuring probes
Sturdy, ergonomic design suitable for shop floor environments
Splash proof and sealed against dust
Add-on modules available for various applications (e.g., Light Grading Module, Relay Module, etc.)
Mains supply: 220 volts AC

Technical Specifications

Parameter	Specification
Metric Ranges	$\pm$10, $\pm$30, $\pm$100, $\pm$300, $\pm$1000 µm
Resolution (Metric)	0.2, 1, 2, 10, 20 µm
Inch Ranges	$\pm$0.0003, $\pm$0.001, $\pm$0.003, $\pm$0.01, $\pm$0.03 inch
Resolution (Inch)	0.00001, 0.00002, 0.0001, 0.0002, 0.001 inch
Display Type	254 mm tall analogue red LED bar graph with 100 segments
