BAKER MICROPROCESSOR BASED TWIN CHANNEL: 2045 COLUMN

Name: BAKER MICROPROCESSOR BASED TWIN CHANNEL: 2045 COLUMN
Brand: Baker Gauges
SKU: 2045

Code:

Microprocessor based Twin Channel: 2045 Column 101 segment, 3 colour LED bar-graph column type measurement display Column can be configured to originate from the centre or one end of scale 8-character alphanumeric dot-matrix digital type display shows measurements either in absolute or comparative form Exclusive 8 character alphanumeric dot-matrix digital type display for menu setting

DOWNLOAD CATALOG

f in

Click to Expand

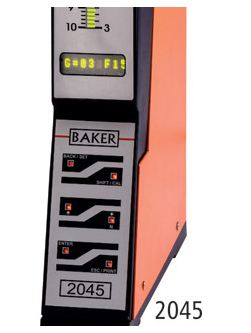

BAKER MICROPROCESSOR BASED TWIN CHANNEL: 2045 COLUMN

Product Overview

The Baker 2045 Column is a microprocessor-based twin channel electronic gauge designed for precision industrial measurement and quality control. Featuring a 101-segment, 3-color LED bar-graph column display, it provides intuitive visual feedback that can be configured to originate from the center or one end of the scale. It incorporates two separate 8-character alphanumeric dot-matrix displays: one for showing measurements in absolute or comparative form, and an exclusive display dedicated to menu settings.

Key Features & Capabilities

Display Systems: 101-segment 3-color LED bar-graph column measurement display; 8-character alphanumeric dot-matrix digital display for absolute or comparative measurements; exclusive 8-character alphanumeric dot-matrix display for menu settings.
Scale Configuration: Column can be configured to originate from the center or one end of the scale.
Security & Access: Two-level password protection to prevent unauthorized alteration.
Operator Comfort: Multiple-level display intensity settings.
Measurement Modes: Static and dynamic measurement capabilities.
Probe Compatibility: Compatible with half-bridge and LVDT type inductive measuring probes.
Formulas & Calculations: Permits incorporation of complex formulae for probe combination.
Quality Control: Display of tolerance and control limit status; classifies tolerance bands into uniform or non-uniform tailor-made grades.
Memory & Preset: Permits menu entries up to 16 different settings for quick application changeover.
Calibration: Auto calibration functionality.
Automation & Outputs: Wide range of process control-based electrical outputs to facilitate automation.
Connectivity: RS232-based interface with real-time tagged measurements; USB interface to PC and flash drive.
Build Quality: Aesthetically appealing, sturdy, and ergonomic design suitable for shop-floor applications.

Technical Specifications

Parameter	Specification
Model	2045 Column
Metric Ranges	±10 µm, ±30 µm, ±100 µm, ±300 µm, ±1000 µm
Metric Resolution	Bar graph: 0.2, 1, 2, 10, 20 µm<br>Digital Display: 0.1, 0.1, 0.1, 1, 1 µm
INCH Ranges	±0.0003 inch, ±0.001 inch, ±0.003 inch, ±0.01 inch, ±0.03 inch
INCH Resolution	Bar graph: 0.00001, 0.00002, 0.0001, 0.0002, 0.001 inch<br>Digital Display: 0.00001, 0.00001, 0.00001, 0.0001, 0.0001 inch
