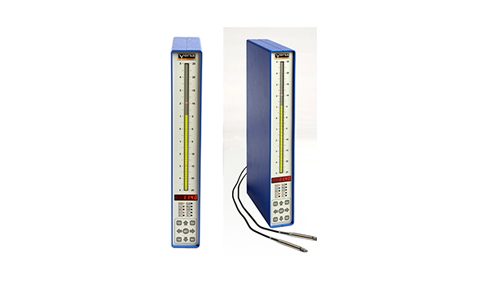

Microprocessor Electronic Piezo based Column Gauge
FEATURES:

Air electronic Units are a combination of two highly reliable Systems to give combined advantages of non-contact, self-cleaning and advantage of high precision electronics
Accommodates all BAKER jet diameter of Air Plug Gauges, Air Ring Gauges & Air Calipers
Improved linearity
Faster response
Easy to calibrate
The slim design makes it very convenient for
multi-gauging as they can be banked within a small space
Supplied with quick connecting adaptors to suit all BAKER Air Plugs/Air Rings/Air Cali-pers
With Calibration certificate



microprocessor-electronic-piezo-based-column-gauge_01 microprocessor-electronic-piezo-based-column-gauge_02 microprocessor-electronic-piezo-based-column-gauge_03



Scale Reading Maximum Usable Range
+/- 0.03 mm 0.0001/ 0.001 mm +/- 0.030 mm
+/- 0.1 mm 0.001 mm +/- 0.040 mm



Check the PDF



Microprocessor Electronic Probe based Column Gauge
FEATURES:
  • Air electronic Units are a combination of two highly reliable Systems to give combined advantages of non-contact, self-cleaning and advantage of high precision electronics
  • The 2045-AE and 2045-AED have all features of the microprocessor based 2045 electronic column
  • In addition, they have an in-built Air to Electronic converter which allows it to be used as an Air-Electronic read out with enhanced capability on the shop floor
  • These gauges are virtually maintenance free and have a slim design that makes it very convenient for multi-gauging applications within a small space
  • The 2045 AED works on a differential principle and can be adapted very easily for Match gauging or relation gauging applications in a multi-gauging environment
  • Suitable for 2045-AE and 2045-AED
    • Air Plugs (APG) / Air Rings (ARG) / Air Calipers (AC) with 2.07 mm jet diameter
    • Supplied with quick connecting adaptors for connecting Air Plugs / Air Rings / Air Calipers
  • NOTE: – If Air Plugs / Air Rings / Air Calipers require jet diameter of 1.5 or 0.6 mm, then it should specified accordingly



microprocessor-electronic-probe-based-column-gauge_01 microprocessor-electronic-probe-based-column-gauge_02 microprocessor-electronic-probe-based-column-gauge_03



Scale Reading Maximum Usable Range
+/- 0.03 mm 0.0001/ 0.001 mm +/- 0.022 mm
+/- 0.1 mm 0.001 mm +/- 0.040 mm



Check the PDF
