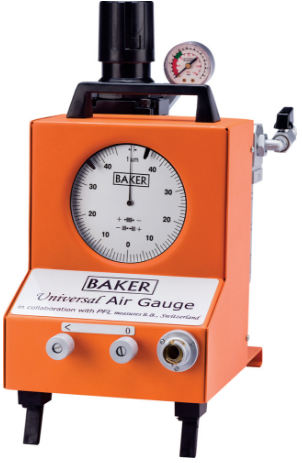

Air Gauge Unit – Universal
FEATURES:
  • Every gauge carries a calibration certificate giving actual values
  • Accommodates all jet diameters of Air Plug Gauges, Air Ring Gauges & Air Calipers
  • Facilitates quick & easy setting through Mag & Zero knobs
  • Supplied with a fixed adaptor which fits all types of connectors
  • Foldable feet for better Readability
  • High pressure system: high speed of response and self cleaning of gauging area ensures accurate reading of size, taper and ovality at a time
  • Non-contact Gauging: long life due to minimal frictional wear
  • Two Setting Masters: ensures correct magnification of reading at all times
  • System pressure check gauge: provides a constant check on the system pressure i.e. 3 bars (45 psi) regulated by a high precision regulator built into the unit
  • Minimum line pressure required 4.5 bars (67 psi)
  • Air consumption 46 LPM



air-gauge-unit-universal_01 air-gauge-unit-universal_02



Reading Range Graduation
0.0005 mm ±0.020 mm 20-0-20
0.001 mm ±0.040 mm 40-0-40
0.00005″ ±0.002″ 2-0-2
