Product Overview

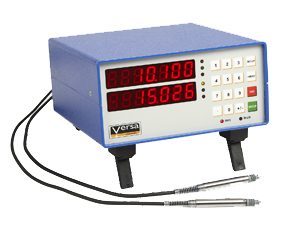

The Versa Controls 2 Channel LVDT Digital Readout (DRO) is a high-precision electronic gauging instrument designed for dual-channel dimensional measurement. Featuring a tricolour 2-line, 7-digit seven-segment display, this unit provides clear, real-time visual feedback for metrology and inspection setups. It supports multiple measurement modes, mathematical functions (A, B, A+B, A-B), and tolerance indications (Reject, Ok, Rework) to streamline quality control processes.

Key Features & Capabilities

• Dual-Channel Input: Supports 2 independent input channels (A and B) for LVDT sensor probes.
• Selectable Resolution: Offers high-resolution measurement options down to 0.1µm (5µm / 1µm / 0.5µm / 0.1µm).
• Versatile Measurement Modes: Configurable for Current, Minimum (Min), Maximum (Max), and Differential measurements.
• Mathematical Functions: Built-in formulas for A, B, A+B, and A-B combinations to facilitate differential or sum gauging.

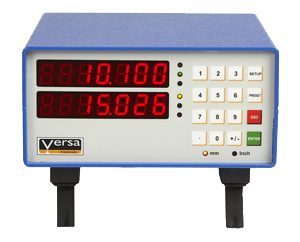

• Tricolour Display & Status Indications: Features a 2-line, 7-digit seven-segment display with integrated LED indicators for Reject, Ok, and Rework status.
• Flexible Calibration: Supports both Single and Double calibration procedures.

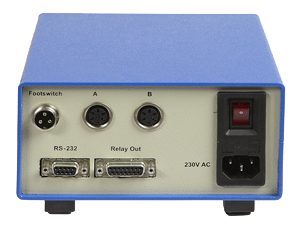

• Industrial Connectivity: Equipped with an RS-232 communication port, 6 open collector outputs, and a dedicated footswitch interface.

Technical Specifications
