Micrometer with Add on Extension Anvil NOTE: Setting Standards – Both End Spherical The 500-1000mm micrometers are made with lightweight Aluminum Cast I-Section frame design which offers sufficient strength, resistance to bending moment and are easy to use as compared to the pipe construction frame. In I-Section more than 90% of the bending moment is resisted due to I-shape. I-Section design has higher moment of resistance because the area of flanges is away from the neutral axis.

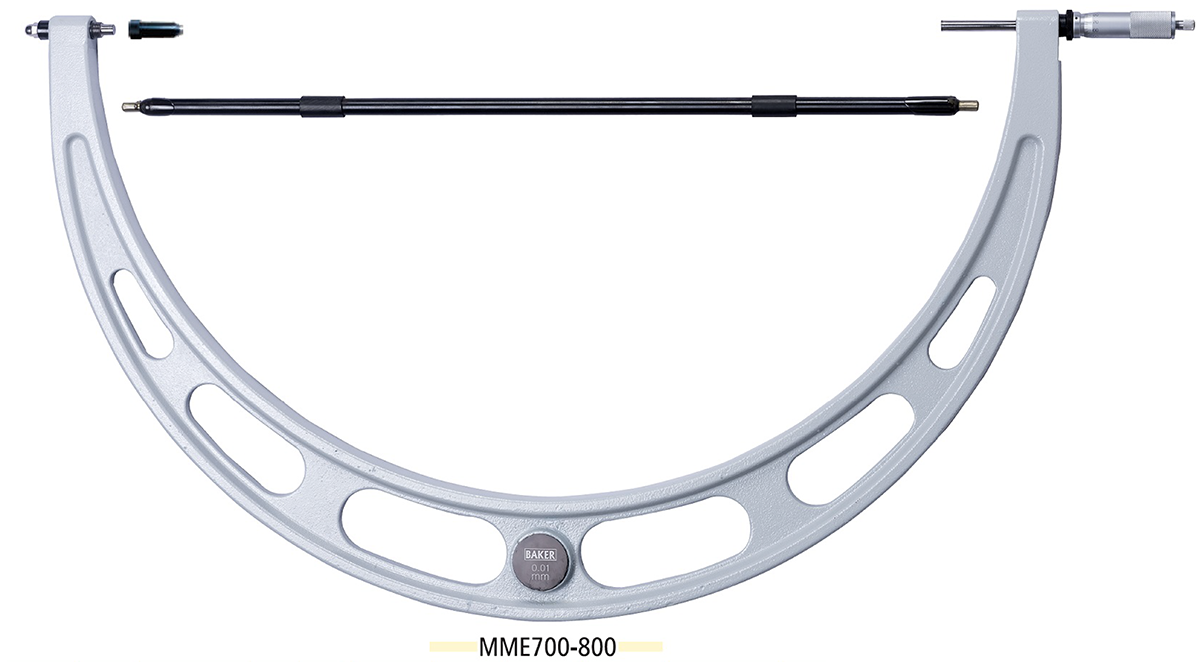

The Baker Large Mechanical External Micrometer (with Add-on Extension Anvil) is designed for large-scale external precision measurements across a 500 mm to 1000 mm range. Featuring a sturdy, lightweight aluminum cast I-section frame design, it offers superior strength, enhanced resistance to bending moments, and reduced heat transfer from handling compared to traditional pipe construction frames. The I-section design achieves higher moment of resistance by positioning the flange area away from the neutral axis. Each unit comes delivered in a wooden box with an add-on extension, setting standard, spanner, and calibration certificate.
