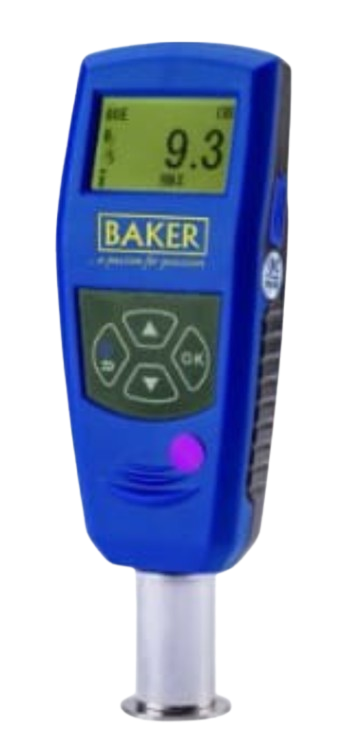

BAKER HIGH QUALITY DIGITAL SHORE HARDNESS TESTER

Baker make (Store-A & Store-D) is a high-precision digital shore hardness tester. This digital shore hardness tester adopts a high-precision displacement sensor and spring design with high test accuracy.

DOWNLOAD CATALOG

f in

Click to Expand

BAKER HIGH QUALITY DIGITAL SHORE HARDNESS TESTER

Product Overview

The Baker Digital Shore Hardness Tester is a high-precision testing instrument designed for measuring the hardness of various materials. Featuring a high-precision displacement sensor and spring design, this device delivers high test accuracy and is available in Shore A and Shore D configurations to suit different material testing requirements.

Key Features & Capabilities

Conforms to standards: ASTM D 2240, GB/T 531.1, and 1507619-1
Graphic LCD with an extended keypad and backlight for a user-friendly interface
Measurement modes include Averaging mode, Max mode, and Max-Average mode
Storage capacity for up to 500 data readings
Data management features include browsing, storing, and batch printing via wireless printer and USB communication
Rechargeable Ni-HM power source

Technical Specifications

Technical Parameter	Shore A Specification	Shore D Specification
Application	Soft vulcanized rubber, natural thermoplastic elastomers, elastic polyacrylic and thermosetting plastics, wax, felt, and leather	Hard rubber, thermoplastic elastomers, harder plastics, and moderately hard thermoplastics
Resolution	0.1 H	0.1 H
Indenter	Blunt Taper Cone 35°	Sharp Point Cone 30°
Range	0–100 H	0–100 H
Communication	Wireless Printer & USB	Wireless Printer & USB
Memory	500 Data readings	500 Data readings
Power Supply	Ni-HM Rechargeable	Ni-HM Rechargeable
Working Conditions	Temperature: 5°C – 50°C; Humidity: ≤85%	Temperature: 5°C – 50°C; Humidity: ≤85%
Weight	170 gm	170 gm
Dimensions	153 × 50 × 29 mm	153 × 50 × 29 mm
Calibration	Std. Hardness Block	Std. Hardness Block
