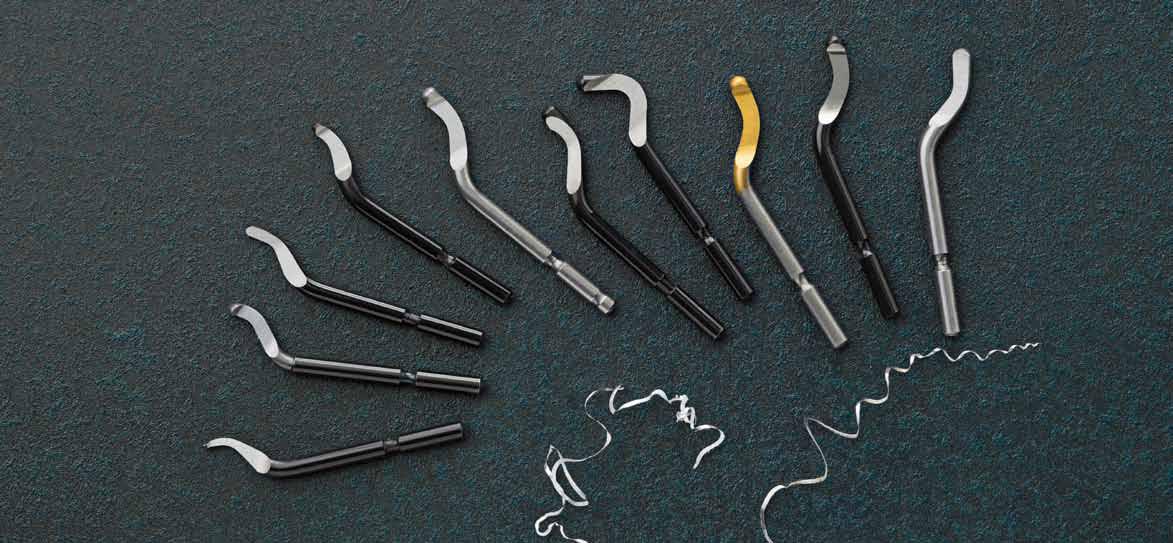

NOGA HEAVY DUTY 3.2 MM SWIVEL BLADES

Heavy Duty 3.2mm Swivel blades. For fast and easy removal of burrs from Straight edge, Curved edge, Holes, Cross holes and Deep holes. A comprehensive program to cover all your heavy duty deburring needs. Choose the right blade for your workpiece material and dimensions.Some blades are available for right hand or left hand operation, and some are for both. Some blades are made of M35 Super H.S.S. or Tungsten Carbide and certain blades can be obtained Tin-coated for longer tool life.
Blades Order No Incl. Angle  (degrees) Package Weight (g) Package Quantity Works Best On

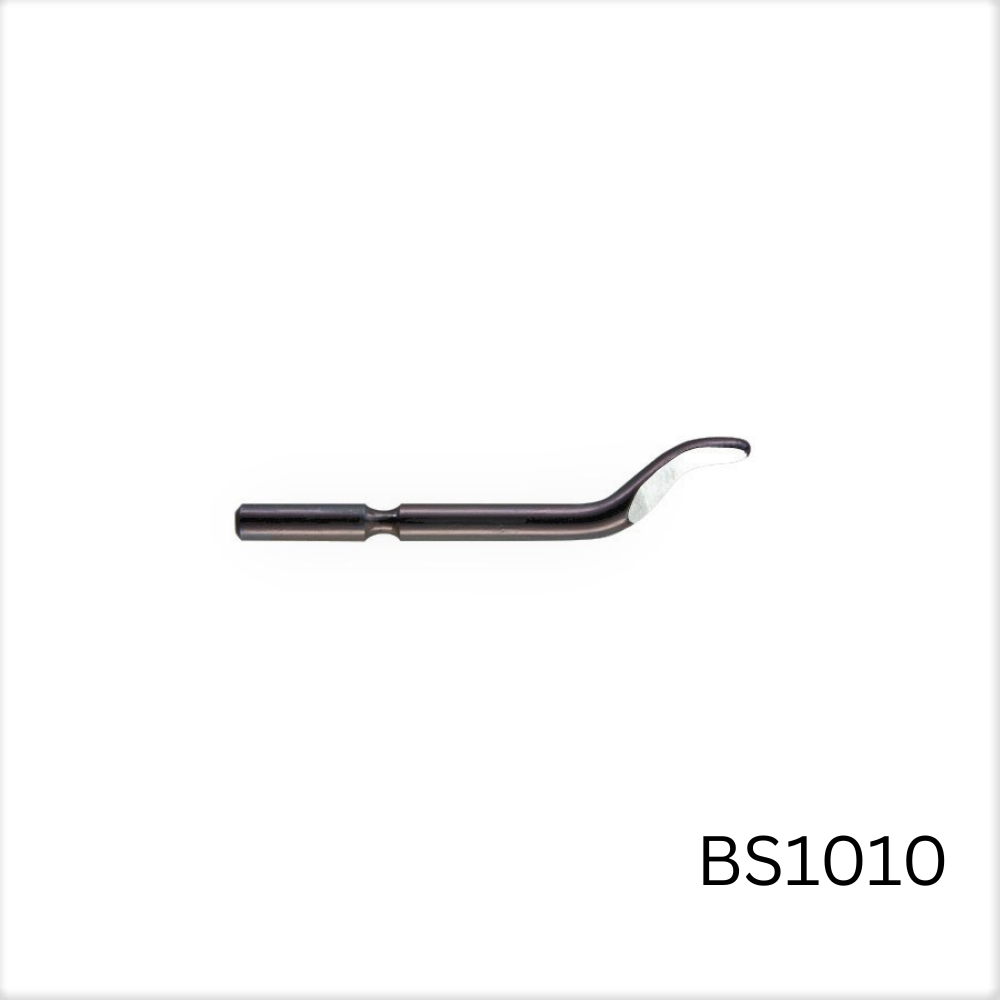

S10 BS1010 40 42 10 steel, aluminium and plastic

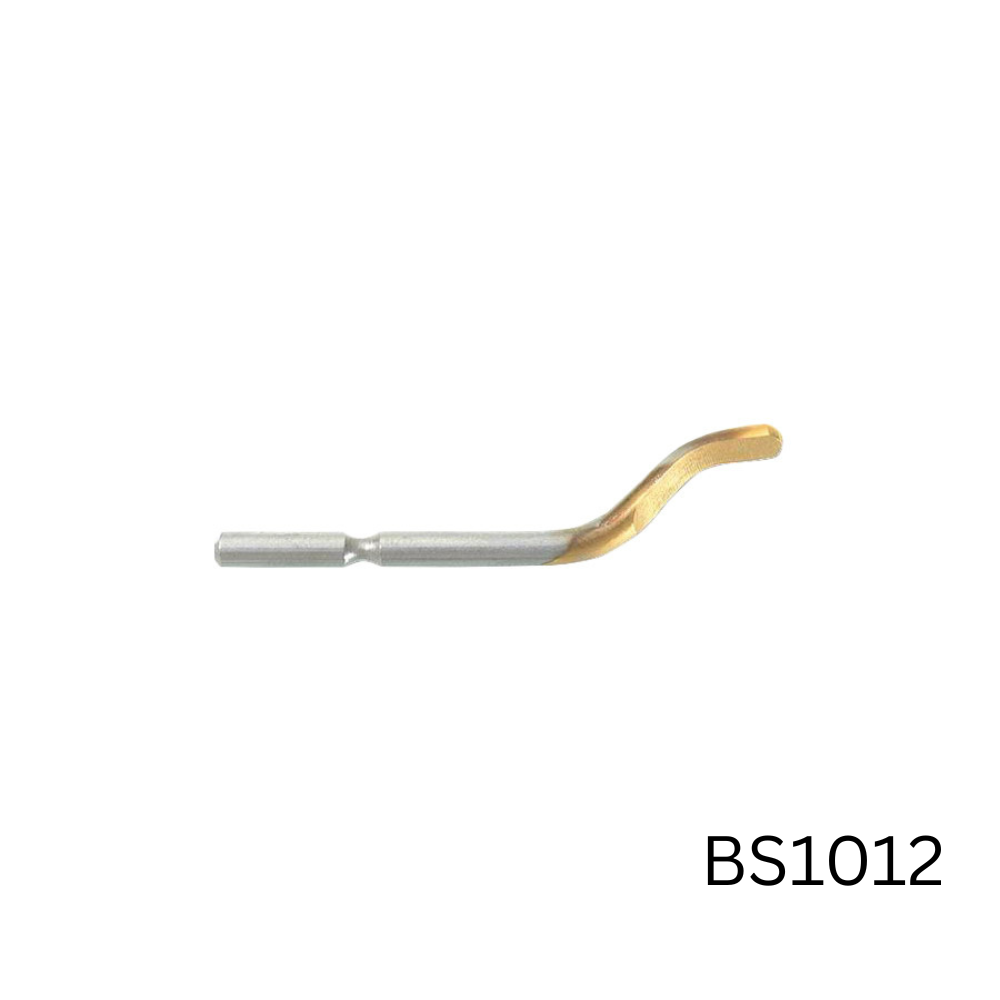

S10Tin BS1012 40 42 10 abrasive material
S20 BS2010 60 43 10 brass and cast iron

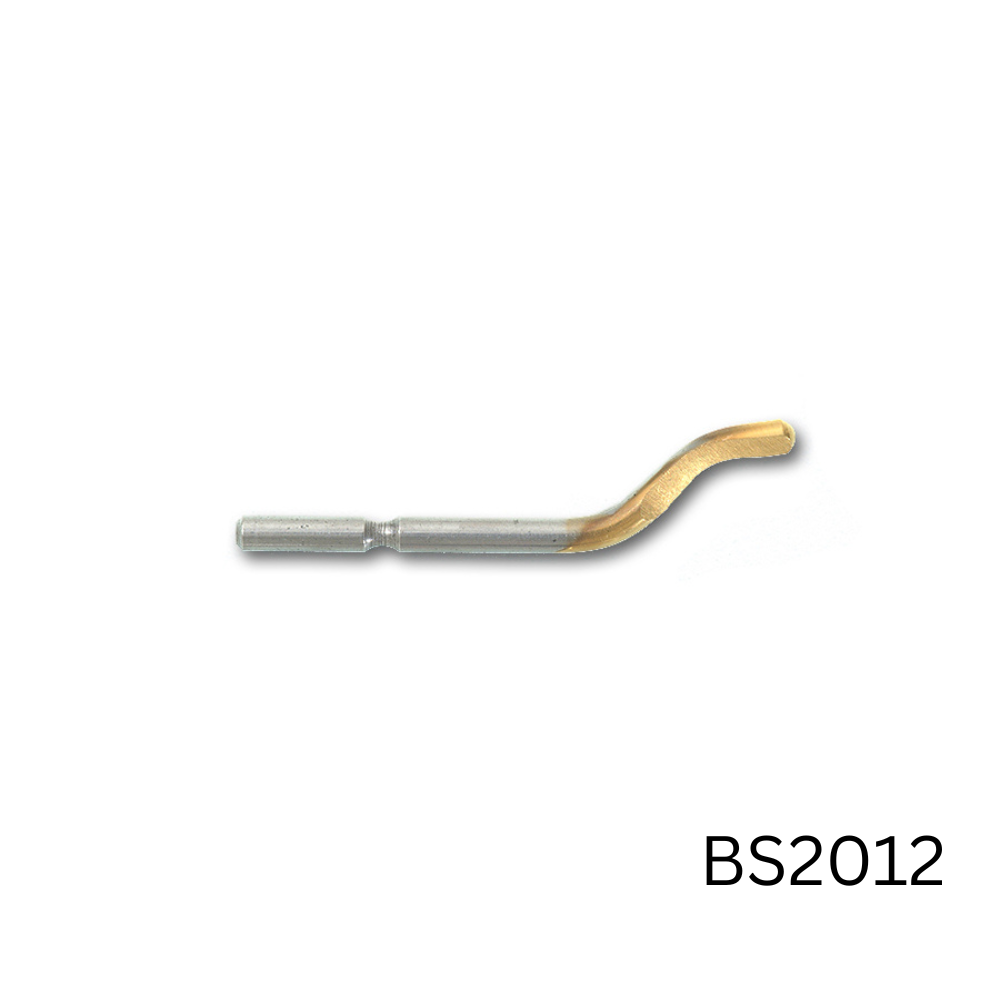

S20Tin BS2012 60 43 10 stainless steel

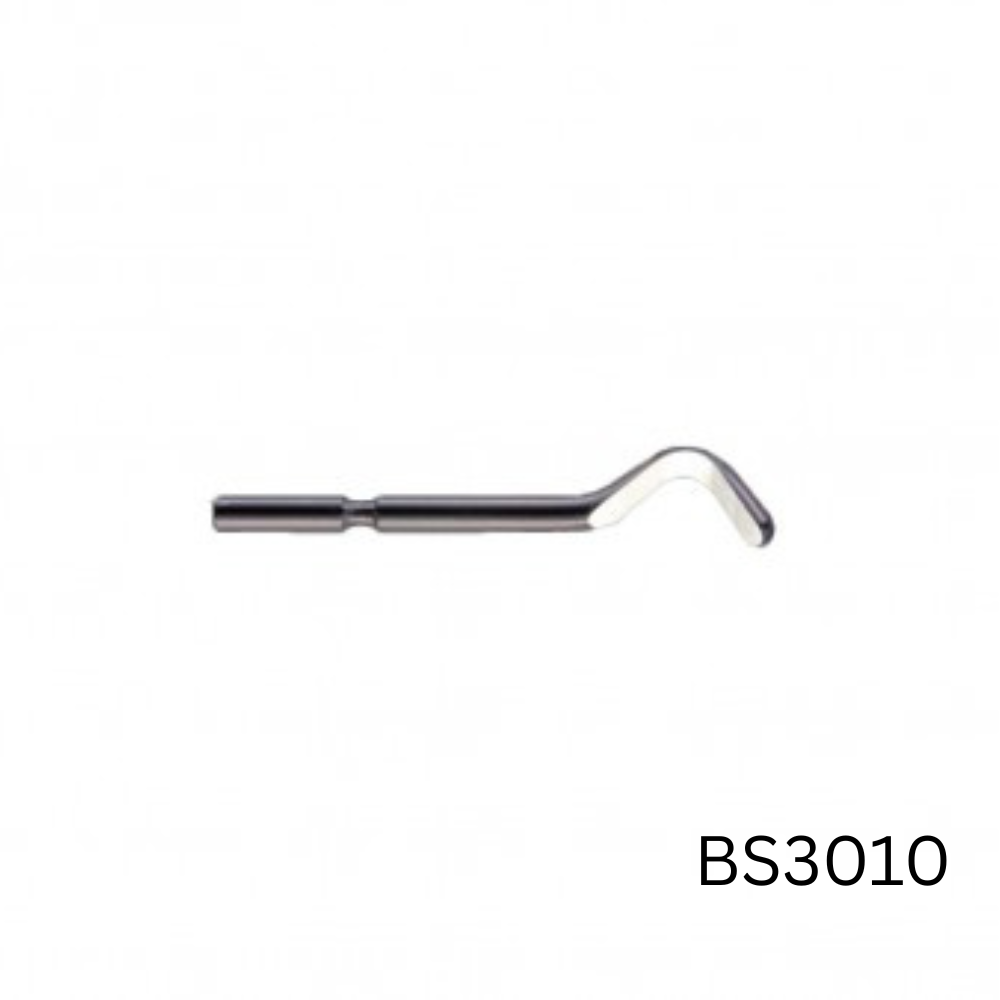

S30 BS3010 40 40 10 both int. & ext. burrs

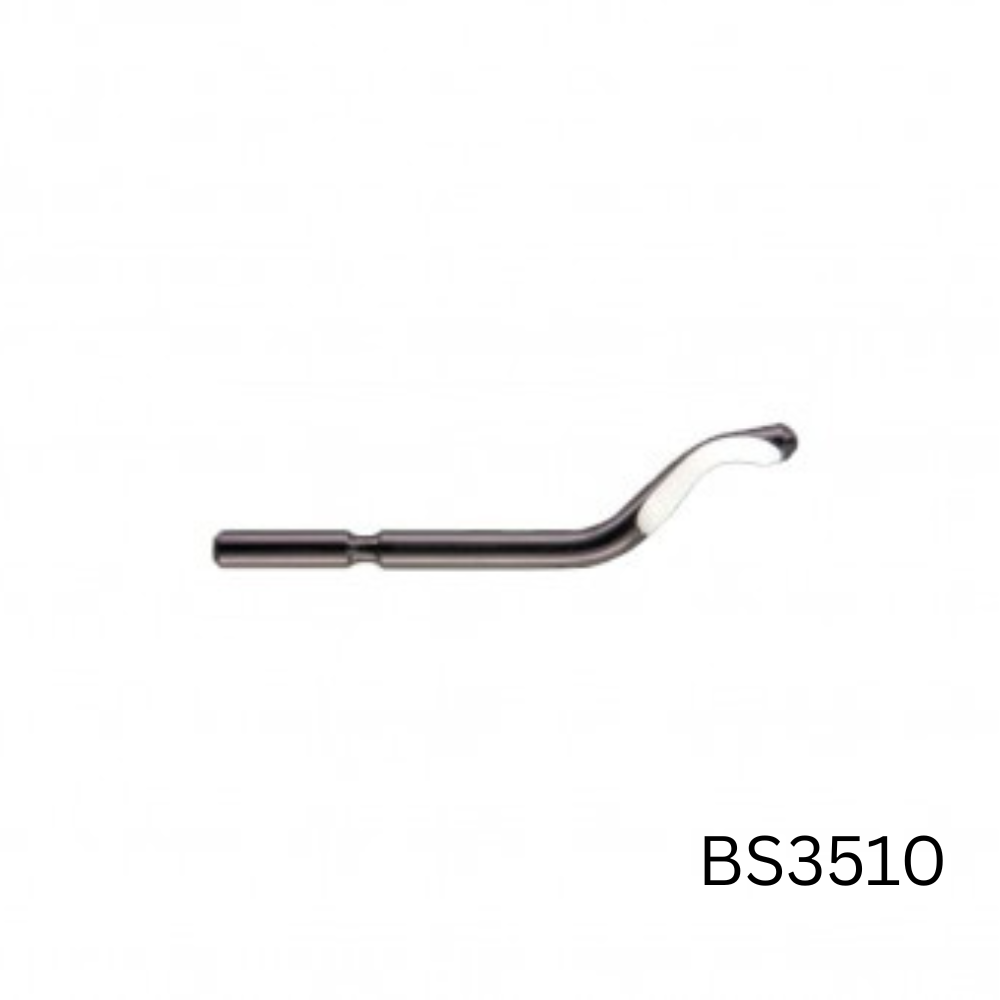

S35 BS3510 55 44 10 straight edges on most materials

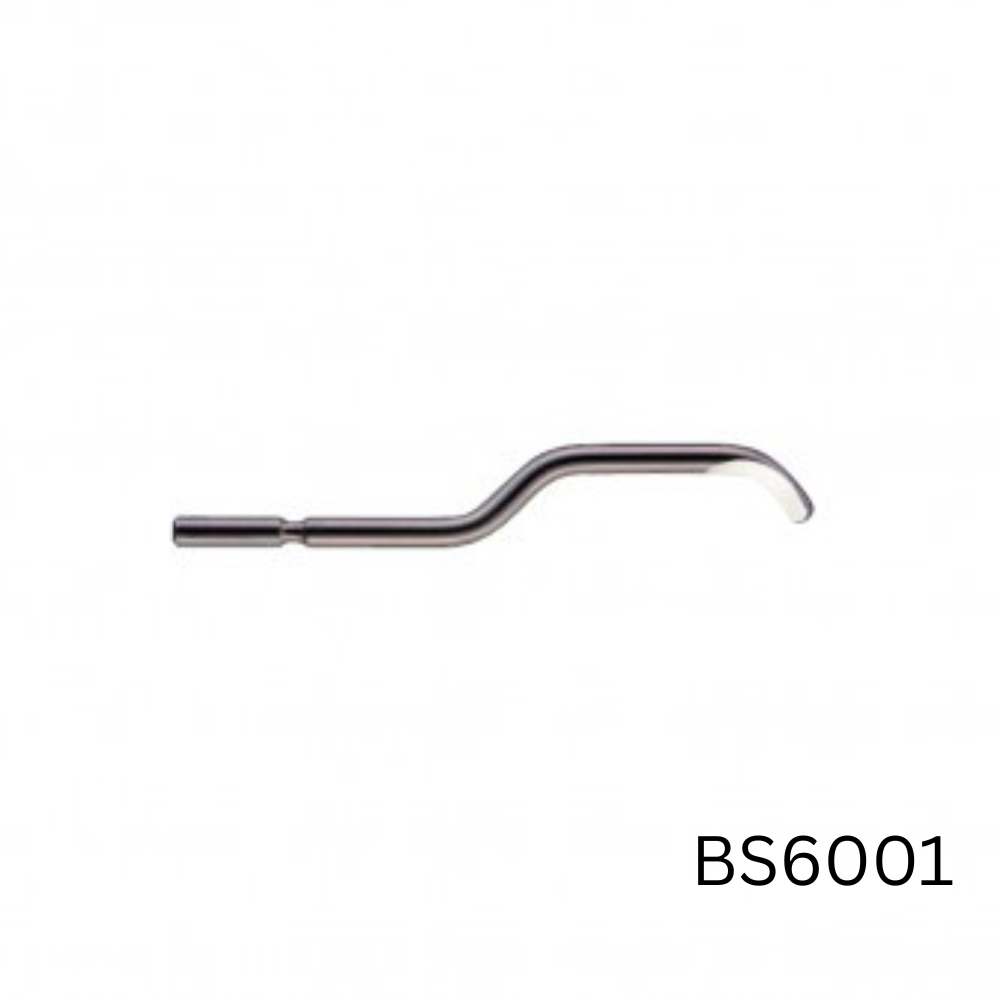

S60 BS6001 40 9 1 cross holes in difficult to reach places

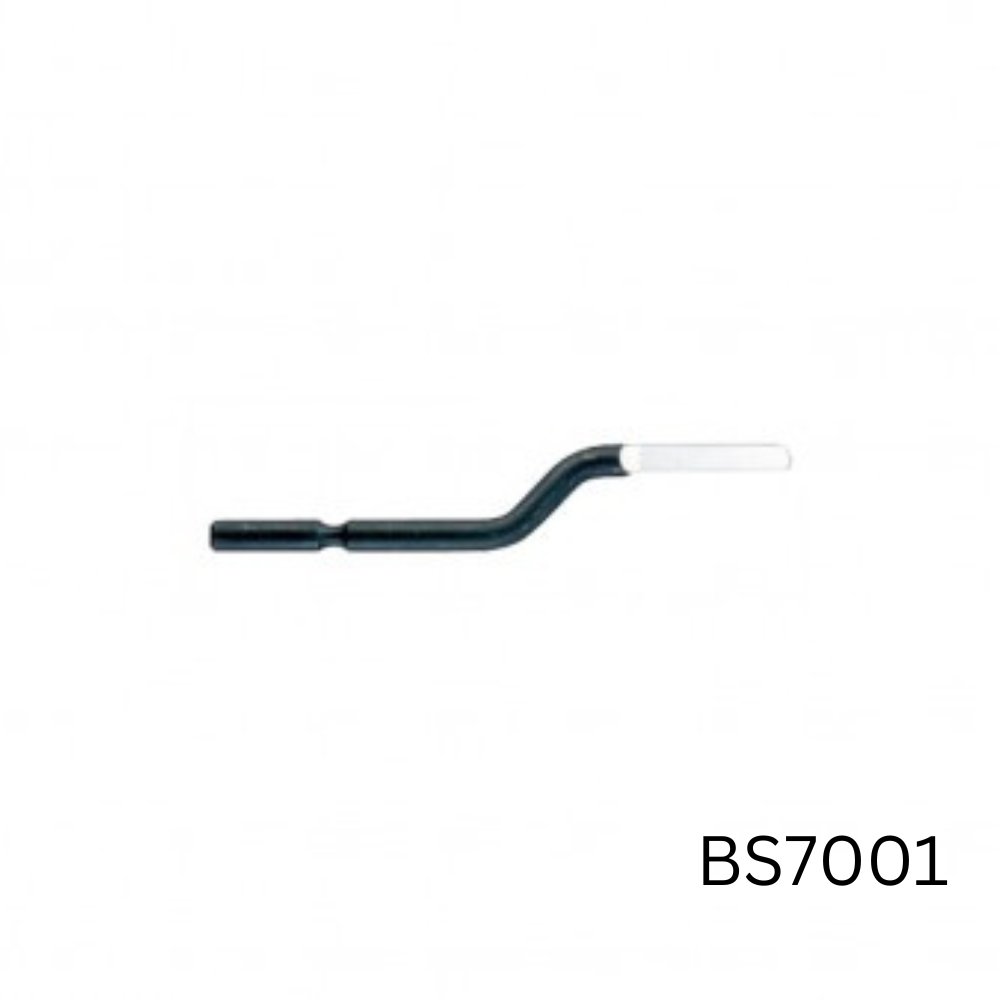

S70 BS7001 45 8 1 straight edges and flat surfaces

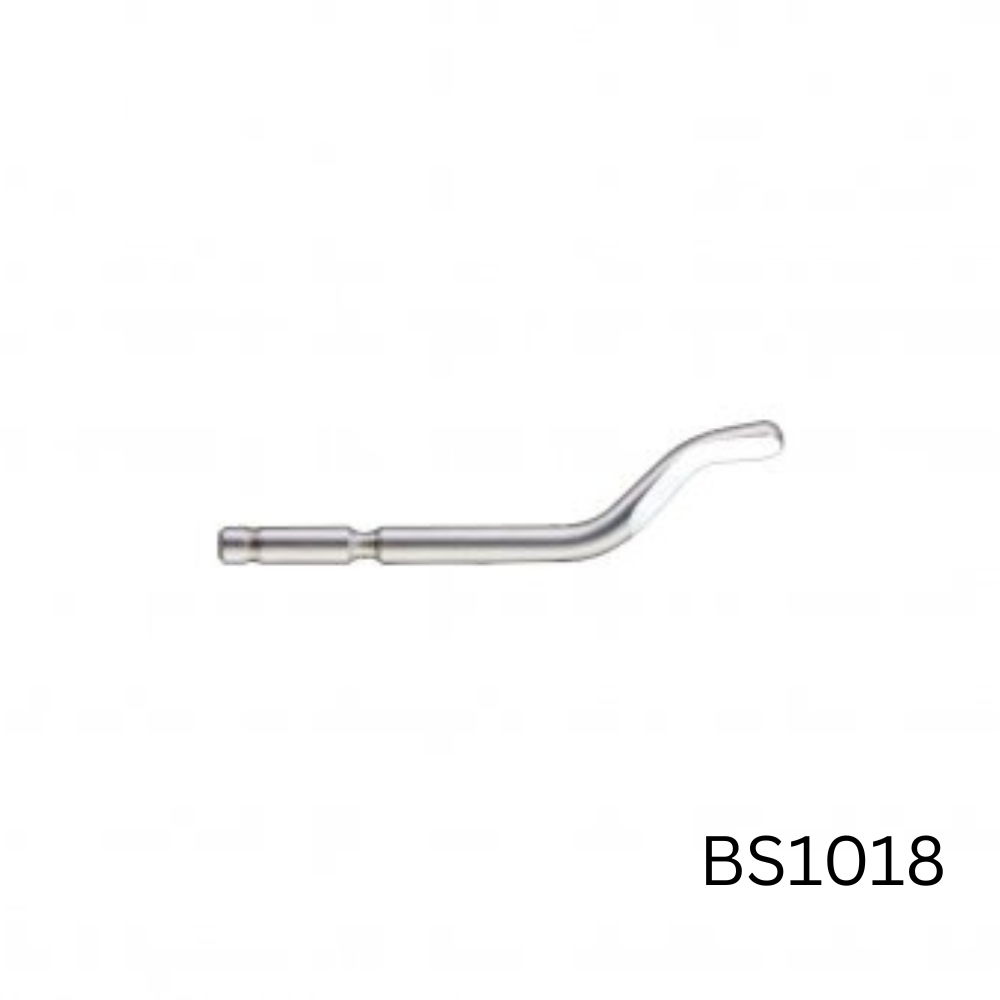

S100 Cobalt BS1018 45 42 10 plastic and hard material

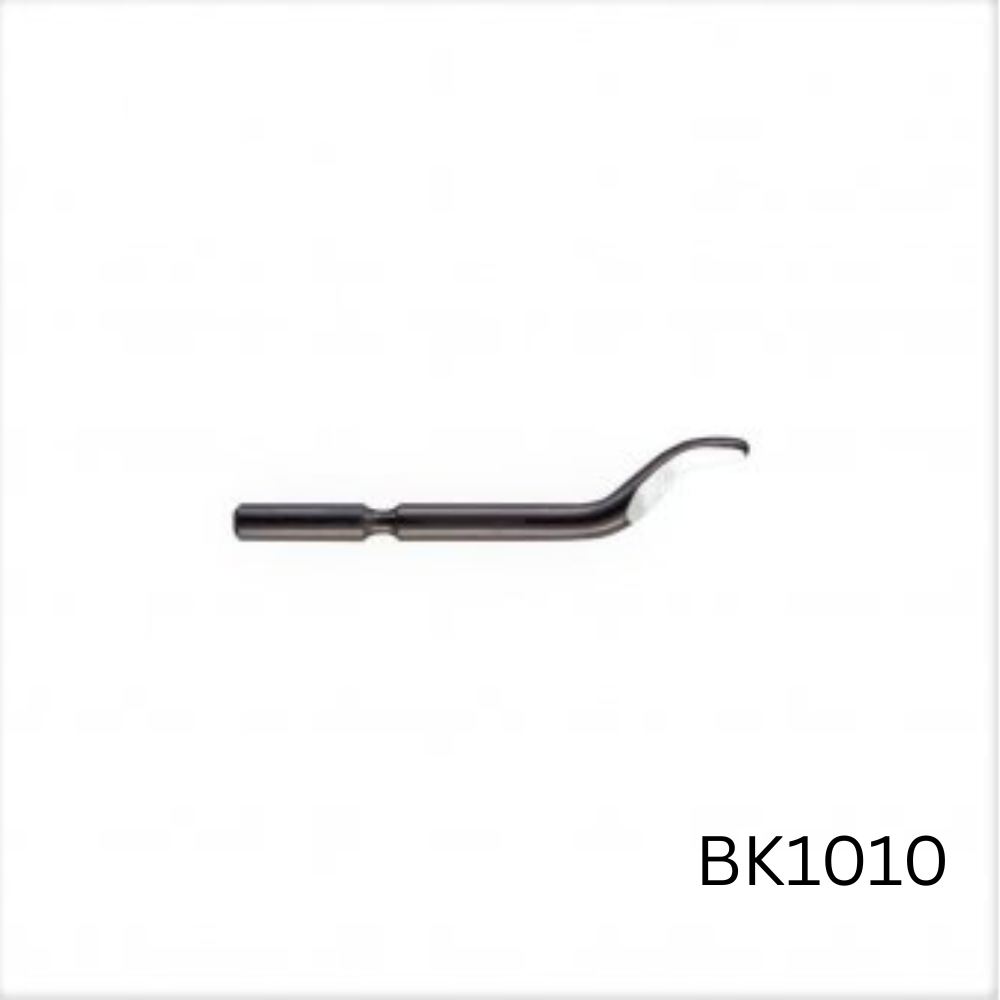

S101 BK1010 40 39 10 fine edges on all material

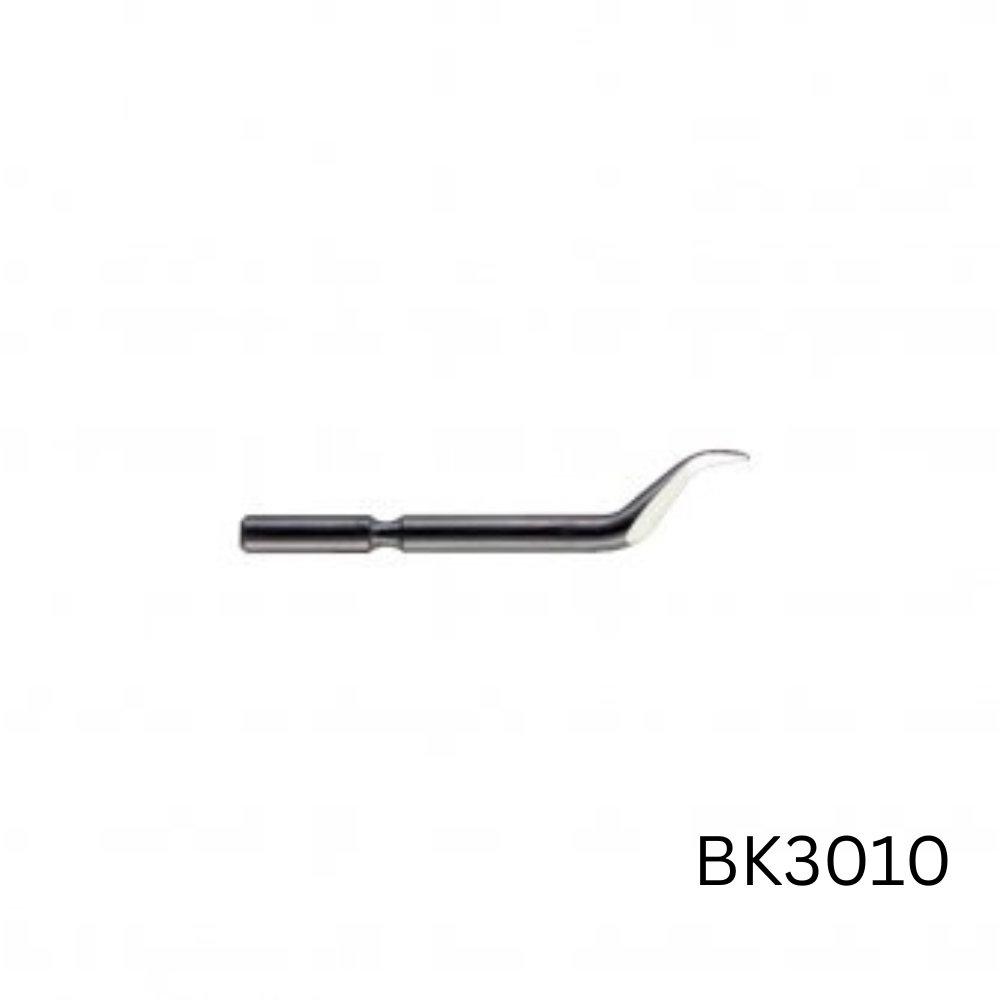

S150 BK3010 45 37 10 holes as small as 1.5 mm dia.

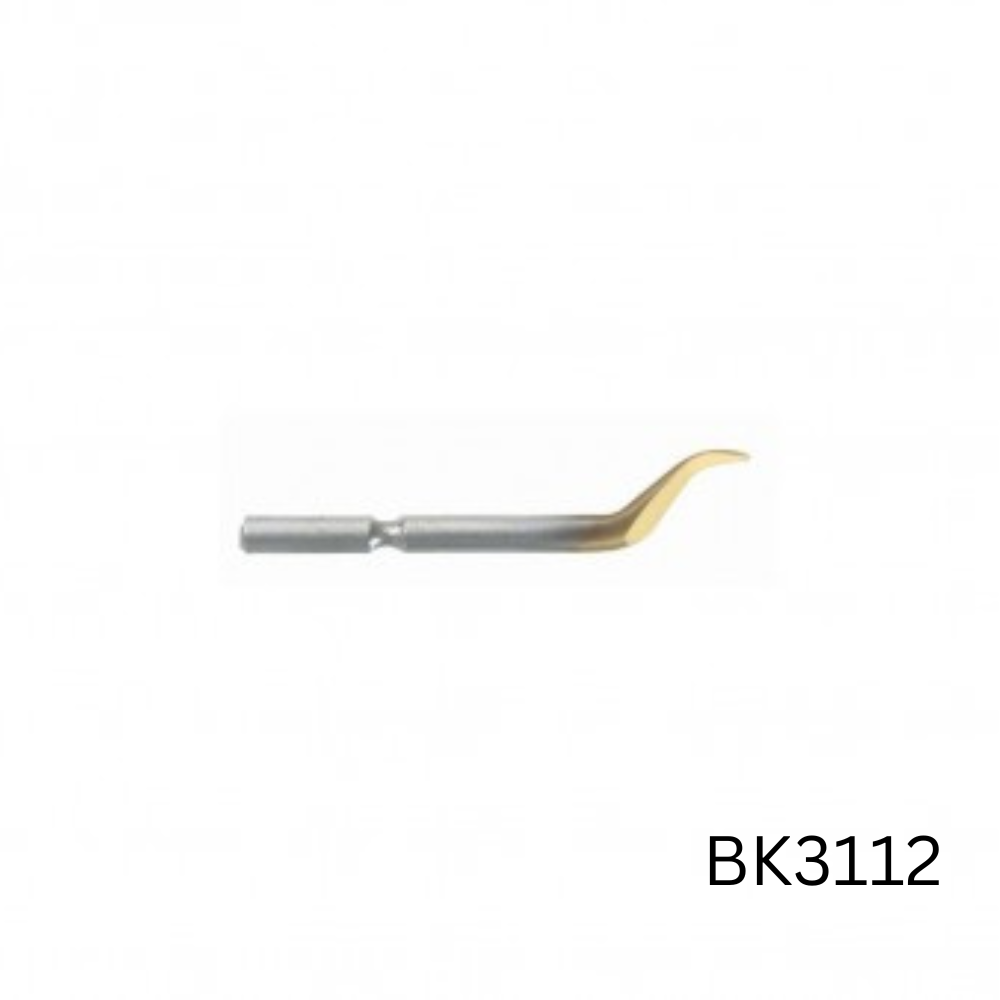

S150 Tin BK3112 45 37 10 holes as small as 1.5 mm dia. For long life

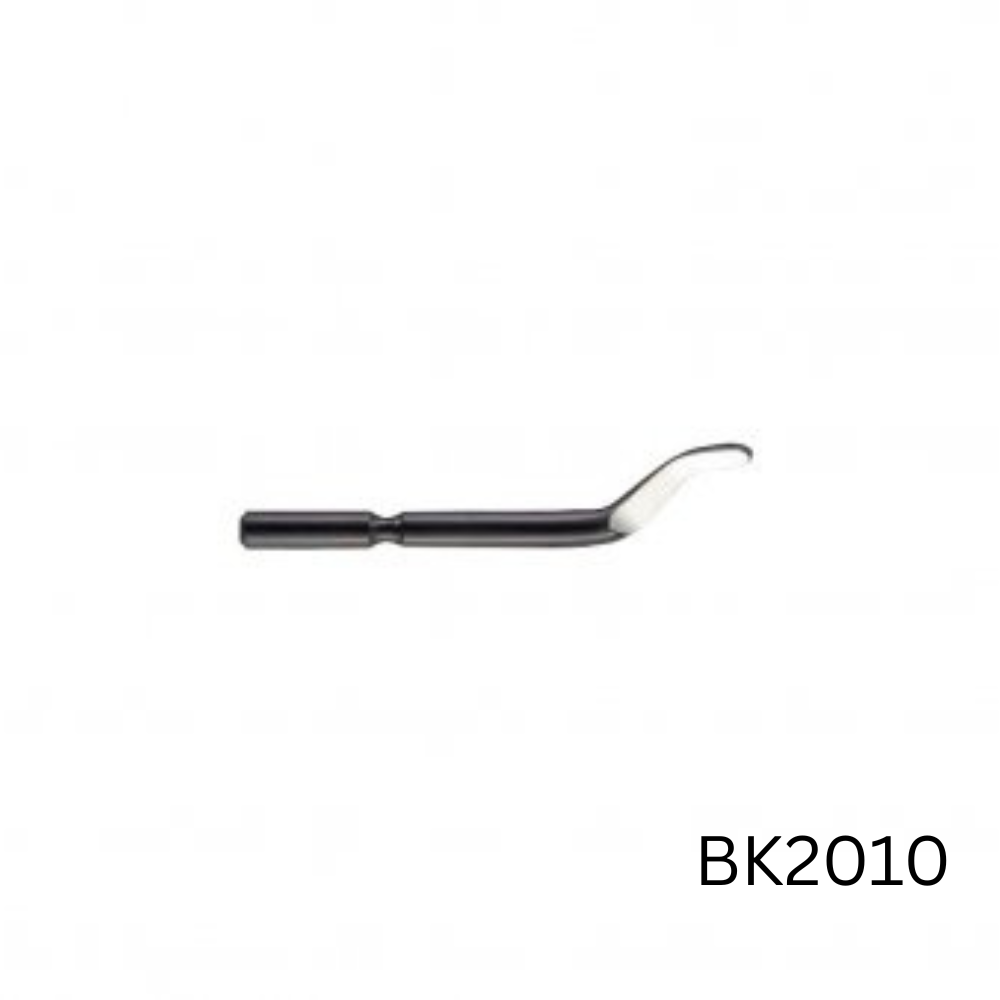

S202 BK2010 55 40 10 brass and cast iron fine edges
