CP 0 Flute Countersinks | Gokul Traders | Pune

CP 1 FLUTE COUNTERSINKS

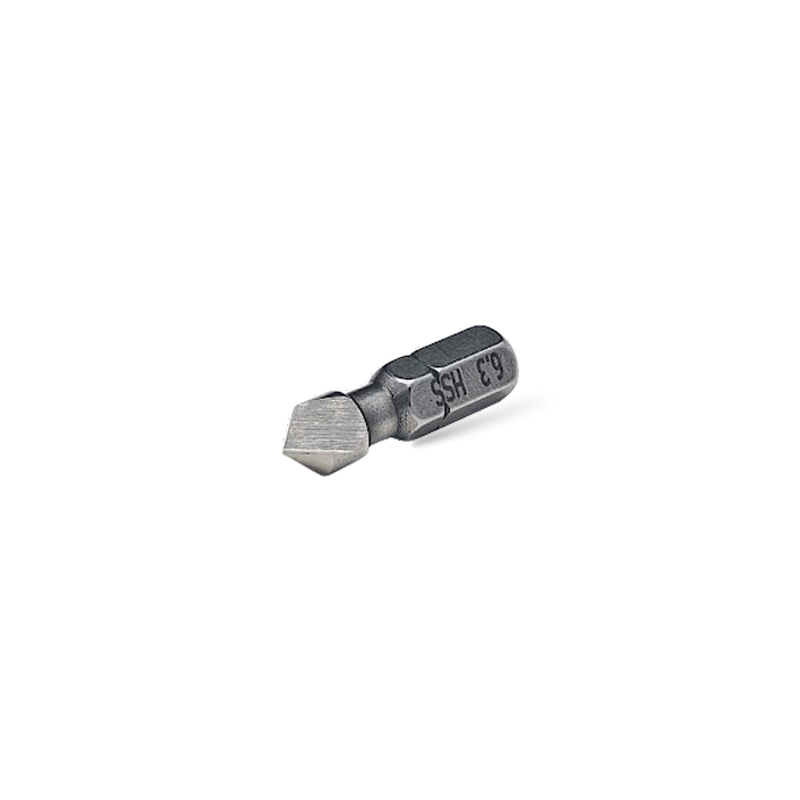

F63 (48630)

Material	Countersink – HSS
Range covered	Ø7 to 19mm
Dimension in mm	Max Dia = 6.35, Shank = 1/4″ Hex, L = 23.6, Included angle: 90°
Packaging	Plastic Box
Pack Qty.	1
Packing Wt. in gms	8

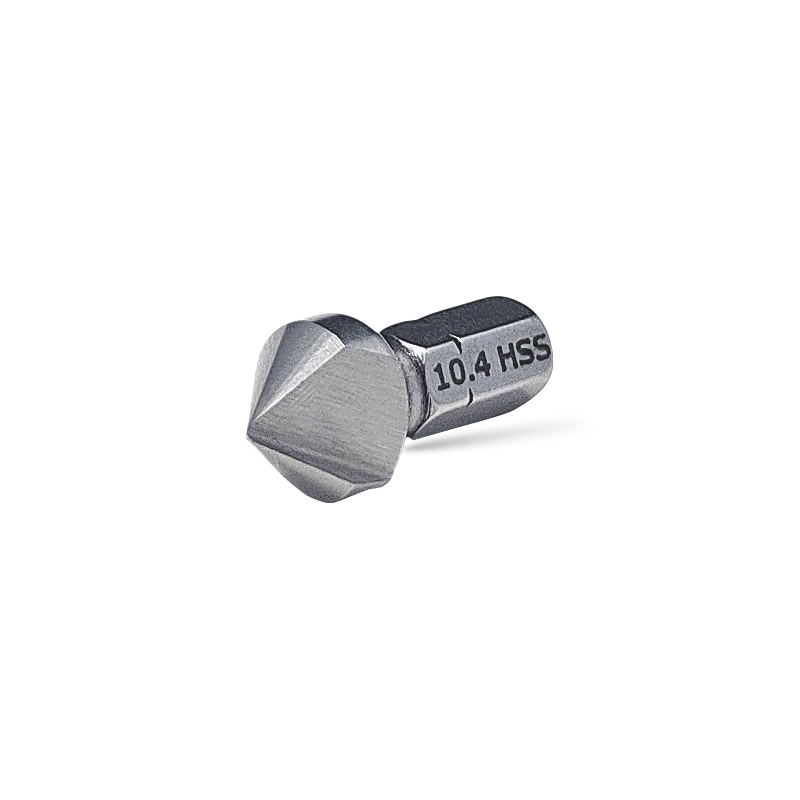

F104 (48104)

Material	Countersink – HSS
Range covered	Ø2 to 10mm
Dimension in mm	Max Dia = 10.5, Shank = 1/4″ Hex, L = 23.6, Included angle: 90°
Packaging	Plastic Box
Pack Qty.	1
Packing Wt. in gms	10

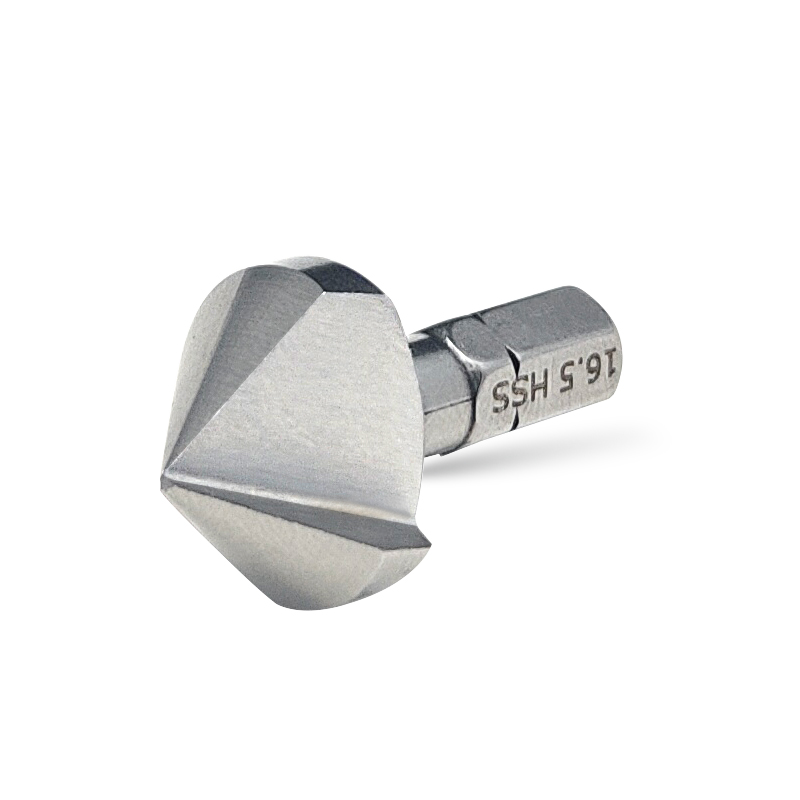

F165 (48165)

Material	Countersink – HSS
Range covered	Ø2 to 16mm
Dimension in mm	Max Dia = 16.5, Shank = 1/4″ Hex, L = 30.5, Included angle: 90°
Packaging	Packaging: Card Box; Optional : Plastic Box
Pack Qty.	1
Packing Wt. in gms	17

F63 (48630)

For chatter-free and smooth Hole deburring / Chamfering on small and micro sized holes.
For hole size from 1 to 6 mm.
Suitable for chamfering/deburring holes on Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Can be used manually with the CG-2 Handle (58044) and Crank Holder (62092) or on Electric Drivers/Lathe/Drill/VMC machines.
Clockwise Direction use.

F104 (48104)

For chatter-free and smooth Hole deburring / Chamfering on small and micro sized holes.
For hole size from 2 to 10 mm.
Suitable for chamfering/deburring holes on Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Can be used manually with the CG-2 Handle (58044) and Crank Holder (62092) or on Electric Drivers/Lathe/Drill/VMC machines.

F165 (48165)

For chatter-free and smooth Hole deburring / Chamfering on small and micro sized holes.
For hole size from 2 to 16 mm.
Suitable for chamfering/deburring holes on Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Can be used manually with the CG-2 Handle (58044) and Crank Holder (62092) or on Electric Drivers/Lathe/Drill/VMC machines.
Clockwise Direction use
