NOGA Specialty Tools is a professional-grade hand deburring and tooling series designed for industrial machining, metalworking, tool and die making, and finishing applications. Manufactured by NOGA, this product line features versatile universal sets, scratch-free deburring solutions, ergonomic handles, telescopic blade holders, and high-precision chuck holders engineered to handle diverse materials including steel, aluminum, stainless steel, brass, cast iron, plastics, glass, and ceramics.
---
Multiburr RG1000
- Design: Universal deburring set featuring four folding shafts that lock into position during operation and fold neatly into the handle for portability.
- Actuation: Features an opening lever for each tool and a single spring lock to release and close all tools.
- Included Blades & Applications:
- S10 Blade: Optimized for steel, aluminum, and plastic.
- D50 Scraper Blade: Designed for tool and die makers.
- 10.4 mm Rotodrive Countersink Blade: Quick chamfering solution with a working range of 1β10.4 mm.
- N2 Blade: Optimized for brass and cast iron.

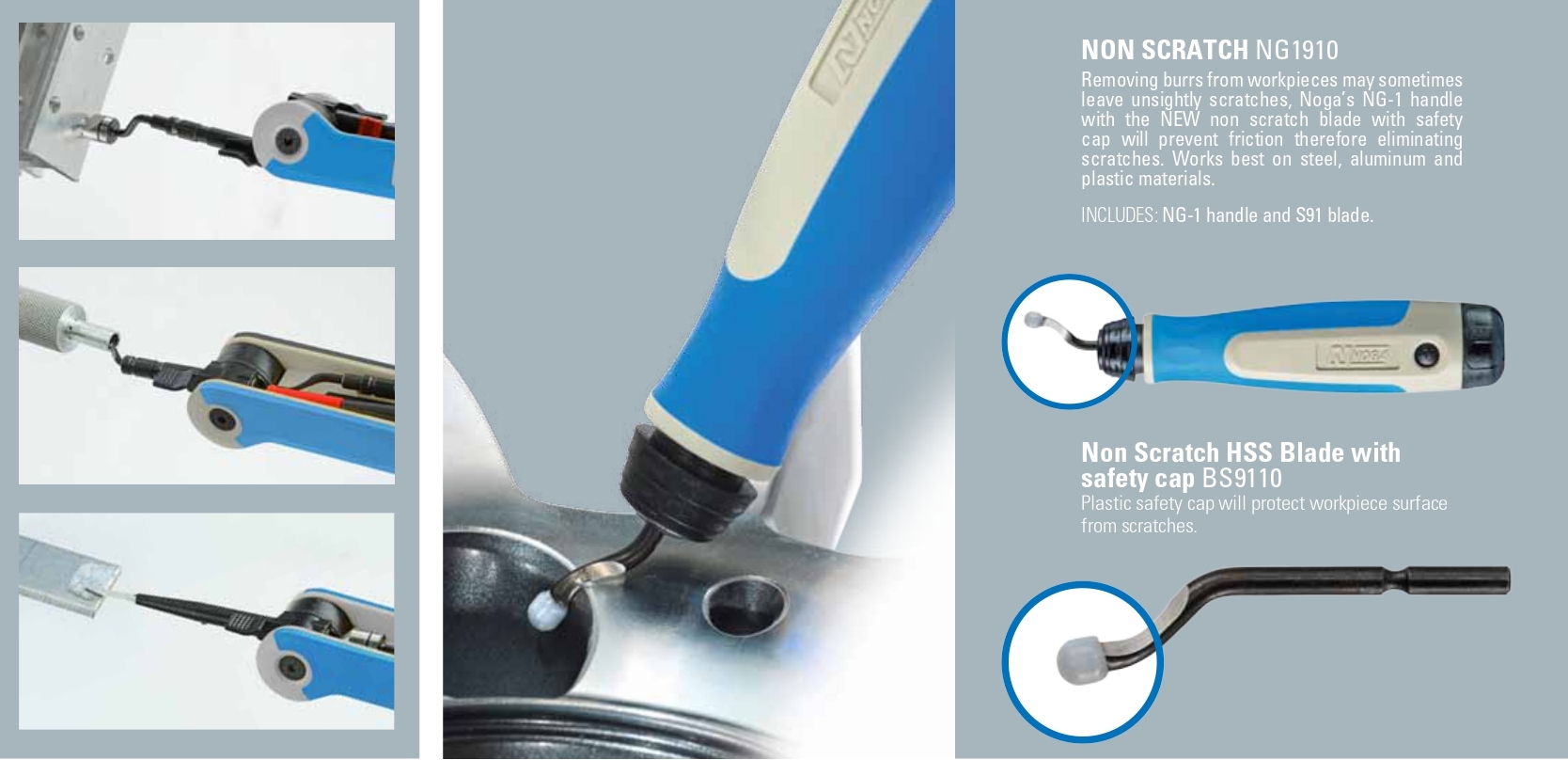

Non Scratch NG1910
- Design: Equipped with an NG-1 handle and a specialized non-scratch blade featuring a plastic safety cap to prevent friction and eliminate workpiece surface scratches.
- Material Compatibility: Works best on steel, aluminum, and plastic materials.
- Included Components: NG-1 handle and S91 blade (BS9110).

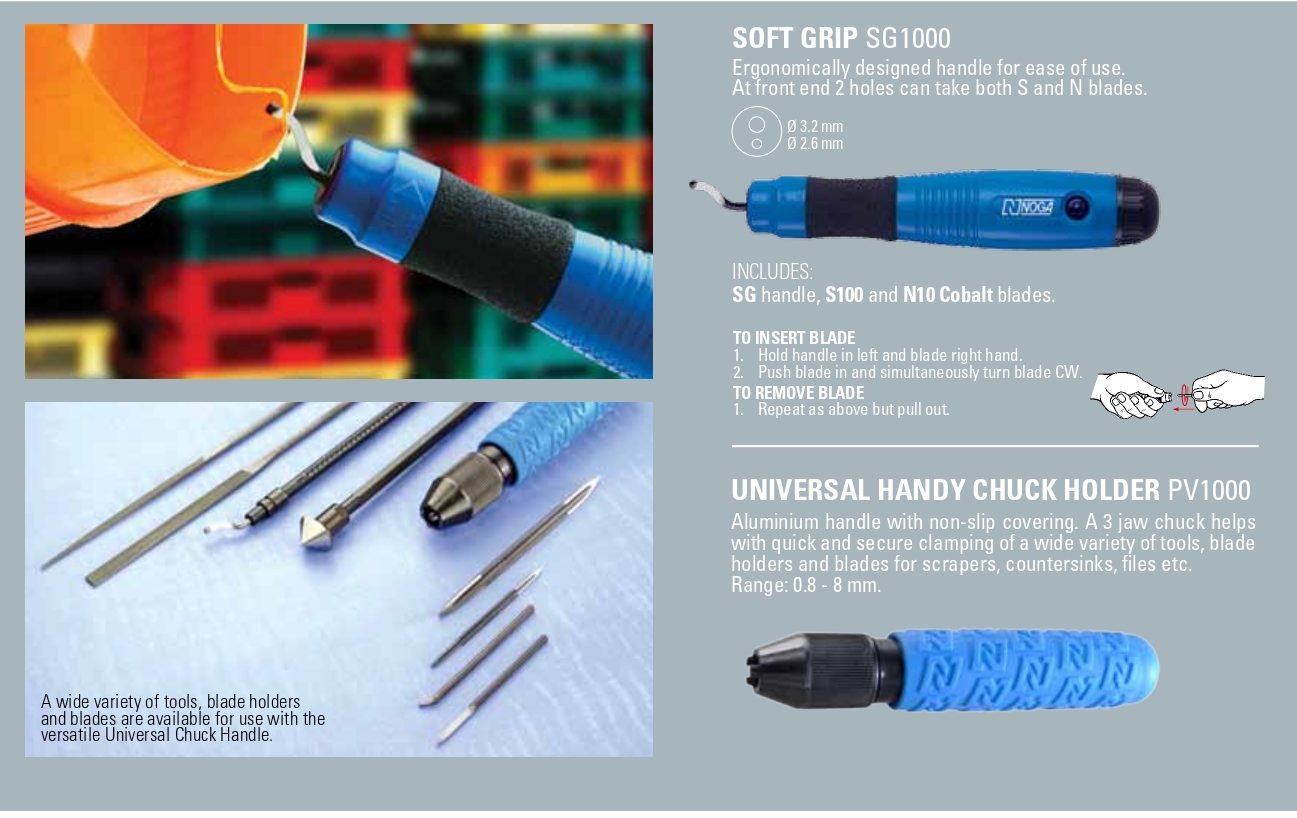

Soft Grip SG1000
- Design: Ergonomically designed handle with a non-slip grip for user comfort and control.
- Front End Capacity: Features two front-end holes ($ΓΈ\,3.2\text{ mm}$ and $ΓΈ\,2.6\text{ mm}$) capable of housing both S and N series blades.
- Included Components: SG handle, S100 blade, and N10 Cobalt blade.
- Blade Insertion/Removal Mechanism:
- Insertion: Hold handle in left hand and blade in right hand, push blade in while simultaneously turning clockwise (CW).
- Removal: Repeat insertion steps and pull out.
Universal Handy Chuck Holder PV1000
- Design: Aluminium handle featuring a non-slip covering and a 3-jaw chuck mechanism.
- Functionality: Provides quick and secure clamping for a wide variety of tools, blade holders, and blades including scrapers, countersinks, and files.
- Clamping Range: $0.8 - 8\text{ mm}$.

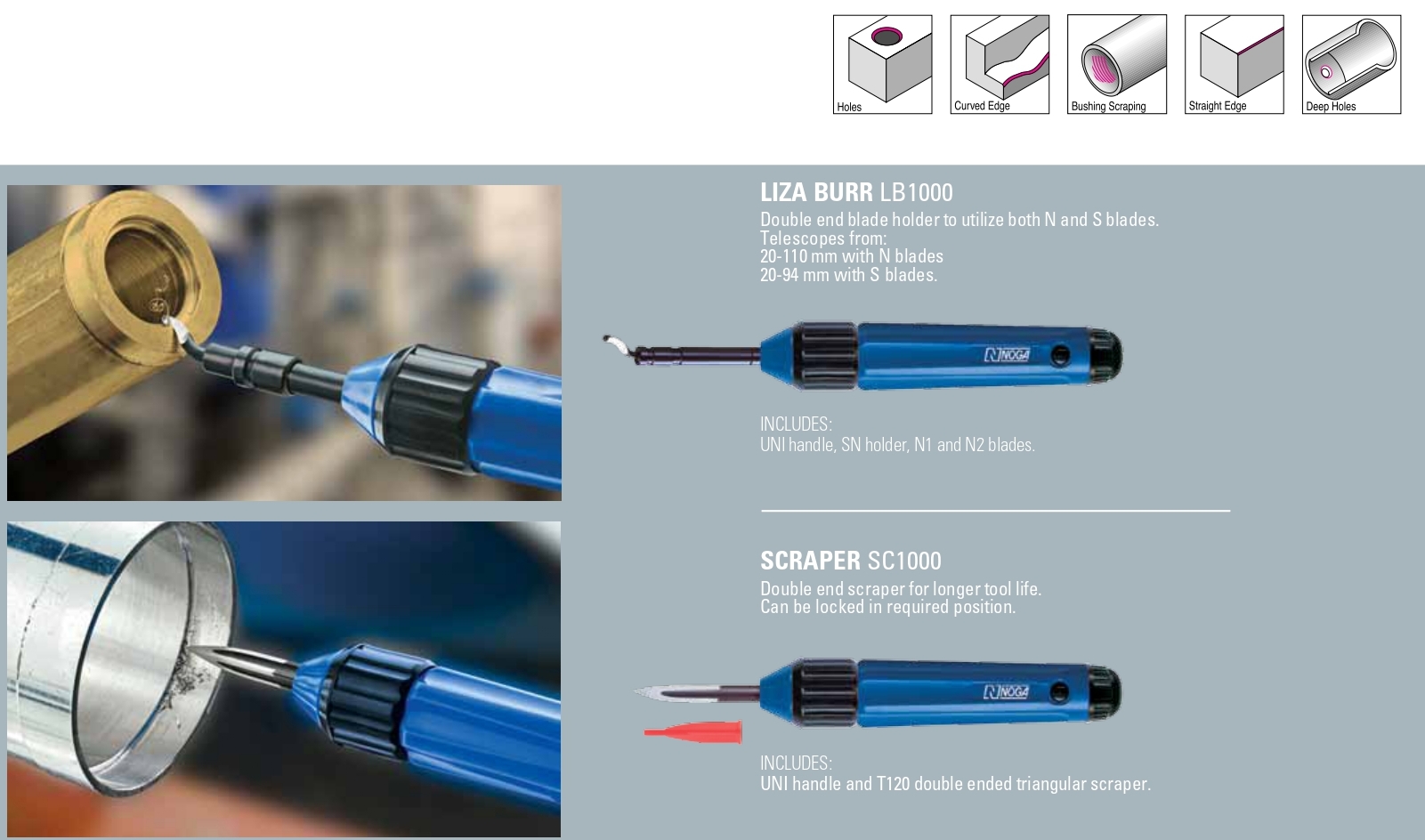

Liza Burr LB1000
- Design: Double-end blade holder engineered to accommodate both N and S series blades.
- Telescopic Range:
- $20 - 110\text{ mm}$ with N blades.
- $20 - 94\text{ mm}$ with S blades.
- Included Components: UNI handle, SN holder, N1 blade, and N2 blade.
Scraper SC1000
- Design: Double-end scraper designed for extended tool life with lockable positioning.
- Included Components: UNI handle and T120 double-ended triangular scraper.
---
Specialty S Blades Matrix
Specialty N Blades Matrix
Note: Standard blades are manufactured from High-Speed Steel (H.S.S.) with a hardness of 62β64 Rc, except for S10/S20/N1/N2 Carbide blades (1400β1700 HV) and S100 Cobalt blades (65β66 Rc).
