CP HEAVY DUTY DEBURRING TOOLS WITH MULTI CUTTING EDGE 3.2 MM BLADES

Download Catalog

MC – 2 (38043)

Material	Handle – Metal with soft grip; Blade – HSS (M2 Grade)
Blade Hardness	62-64 HRC
Dimension in mm	L = 130 ; Handle Ø = 12, End Cap Ø = 18
Packaging	Card Box
Pack Qty.	1
Packing Wt. in gms	56

MC – 4 (38123)

Material	Handle – Polyacetal; Blade – HSS (M2 Grade)
Blade Hardness	62-64 HRC
Dimension in mm	L = 122 ; Handle Ø = 19.8, End Cap Ø = 21.7
Packaging	Card Box
Pack Qty.	1
Packing Wt. in gms	38.5

DT – MC (38233)

Material	Handle – Polyacetal; Blade – HSS (M2 Grade)
Blade Hardness	62-64 HRC
Dimension in mm	L = 143 ; Handle Ø = 23.7, End Cap Ø = 24
Packaging	Card Box
Pack Qty.	1
Packing Wt. in gms	59

DT – 5 – MC (38223)

Material	Handle – Polyacetal; Holder – Steel; Blade – HSS (M2 Grade)
Blade Hardness	62-64 HRC
Dimension in mm	L =163 mm min./ 230 mm max, Handle Dia. = 23.7
Packaging	Card Box
Pack Qty.	1
Packing Wt. in gms	105

Promo Set 3 (88020)

Material	Handle – Polyacetal; Blade – HSS (M2 grade)
Dimension in mm	Size = 129 x 183 x 30 mm
Packaging	Packaging: Card Box; Optional : Plastic Box
Pack Qty.	1
Packing Wt. in gms	105

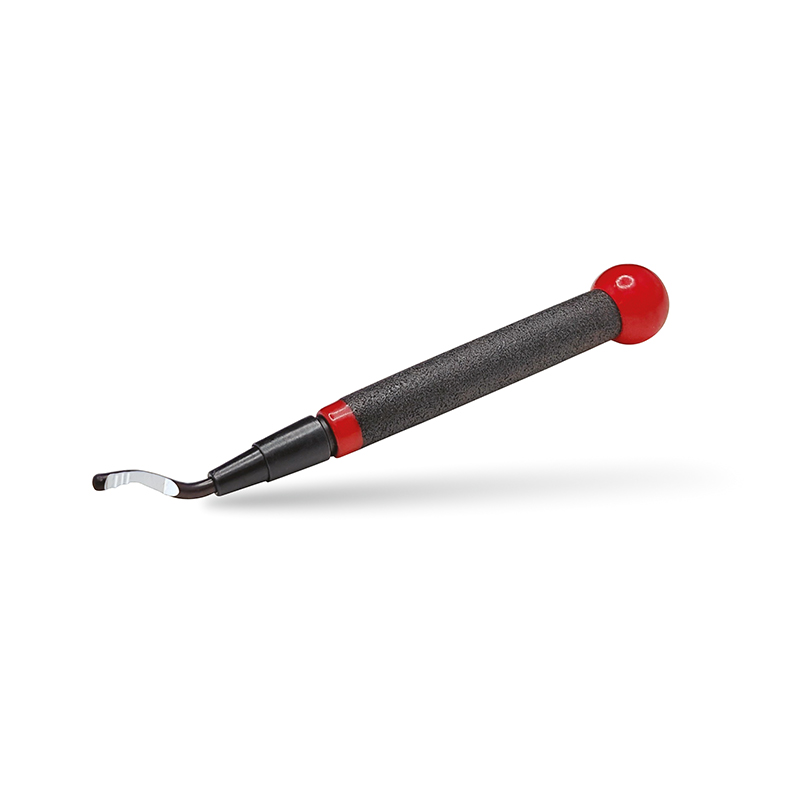

MC – 2 (38043)

Metallic handle with soft grip and Ball end cap.
Holds the Ø3.2mm MC-10 blade.
Works best on metals forming spiral chips such as Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Laser marked for easy identification purpose.
For right hand users only.

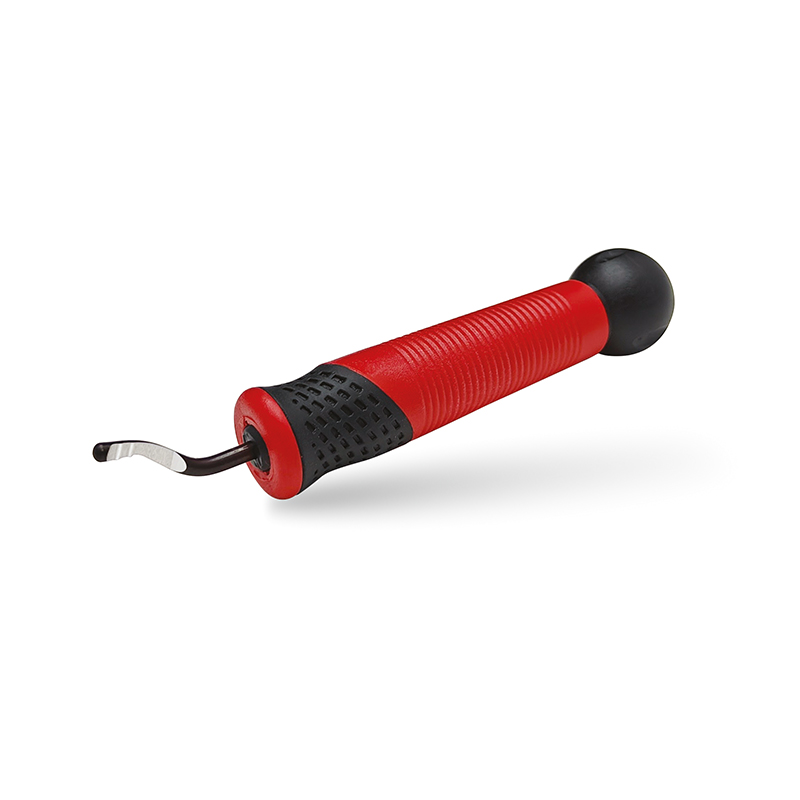

MC – 4 (38123)

Poly Acetal Body Handle with Soft Grip & Ball End Cap.
Holds the Ø3.2mm MC-10 blade. Spring loaded collet action for Blade holding.
Works best on metals forming spiral chips such as Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Laser marked for easy identification purpose.
For right hand users only.

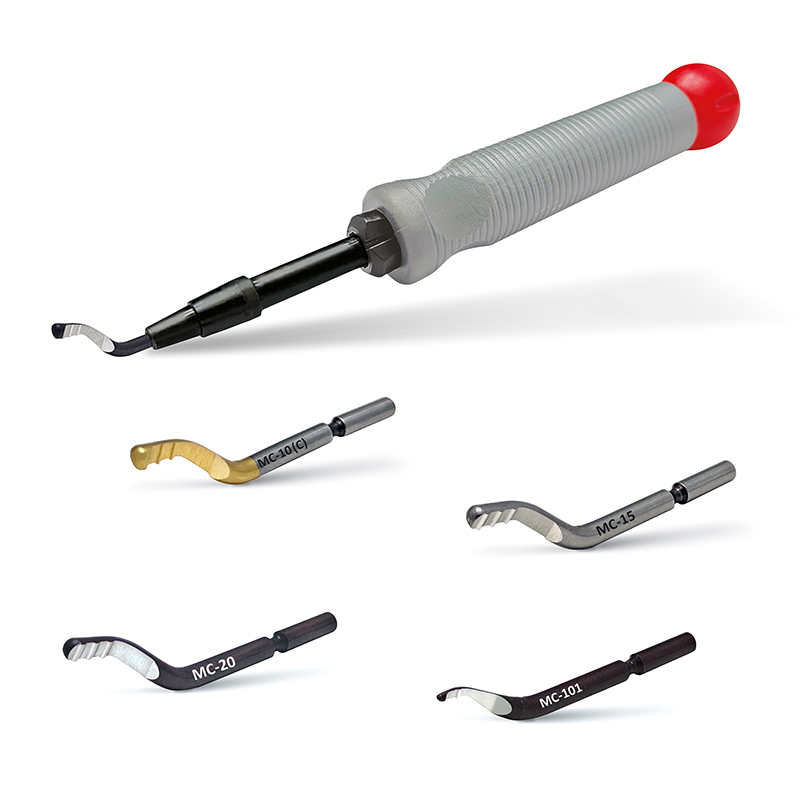

DT – MC (38233)

Poly Acetal Body T-SD (Yellow/Black) Handle with Telescopic Holder DT(C) & Ball End Cap.
Holds the Ø3.2mm MC-10, MC-20, MC-15, MC-101 and MC-10(C) blades.
Collet Action ensures firm grip of Plain Surface holder which can be telescoped to reach at depth.
Ideal to use on metals such as Steel, Aluminum, Copper, C.I, Brass, Stainless Steel and hardened metals. The blades can also be used on other metals (hardness<35 HRC) and plastics.
Laser marked for easy identification purpose.

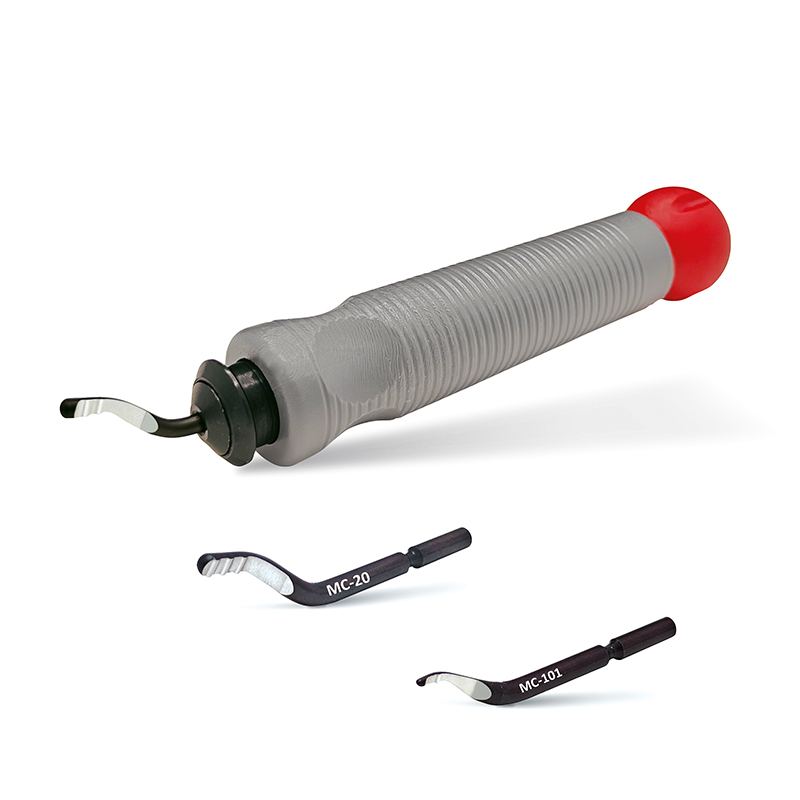

DT – 5 – MC (38223)

Poly Acetal Body T-SD (Yellow/Black) Handle with Telescopic Holder DT(C) & Ball End Cap.
Holds the Ø3.2mm MC-10, MC-20, MC-15, MC-101 and MC-10(C) blades.
Collet Action ensures firm grip of Plain Surface holder which can be telescoped to reach at depth.
Ideal to use on metals such as Steel, Aluminum, Copper, C.I, Brass, Stainless Steel and hardened metals. The blades can also be used on other metals (hardness<35 HRC) and plastics.
Laser marked for easy identification purpose.

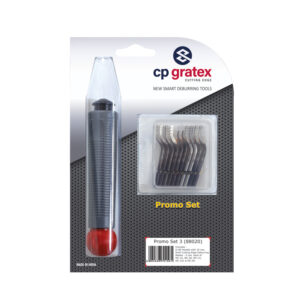

Promo Set 3 (88020)

Included contents:- ‘D-SD’ handle with 10 nos. Multi-Cutting Edge Deburring Blades : 2 nos. each of MC-10, MC-20, MC-15, MC-101 & MC-40.
Suitable for deburring on Steel, Aluminum and Copper, Cast Iron & Brass, Stainless Steel etc. Can also be used on all other metals (hardness<35 HRC) and plastics.
Deburring Set with Polyacetal handle and 10 Multi-Cutting Edge Deburring Blades.
