NOGA CERAMICS APPLICATIONS & CR BLADES

Name: NOGA CERAMICS APPLICATIONS & CR BLADES
Brand: NOGA
SKU: CR2200

Code:

NOGA Ceramics Applications & CR Blades are specially designed for precision deburring and finishing of ceramic, plastic, and delicate materials. The high-quality CR ceramic blades offer excellent wear resistance, long life, and smooth cutting performance without damaging surfaces. Ideal for fine edge finishing, light deburring, and precision applications in industrial and engineering environments.

BUY NOW DOWNLOAD CATALOG

f in

Click to Expand

NOGA CERAMICS APPLICATIONS & CR BLADES

Product Overview

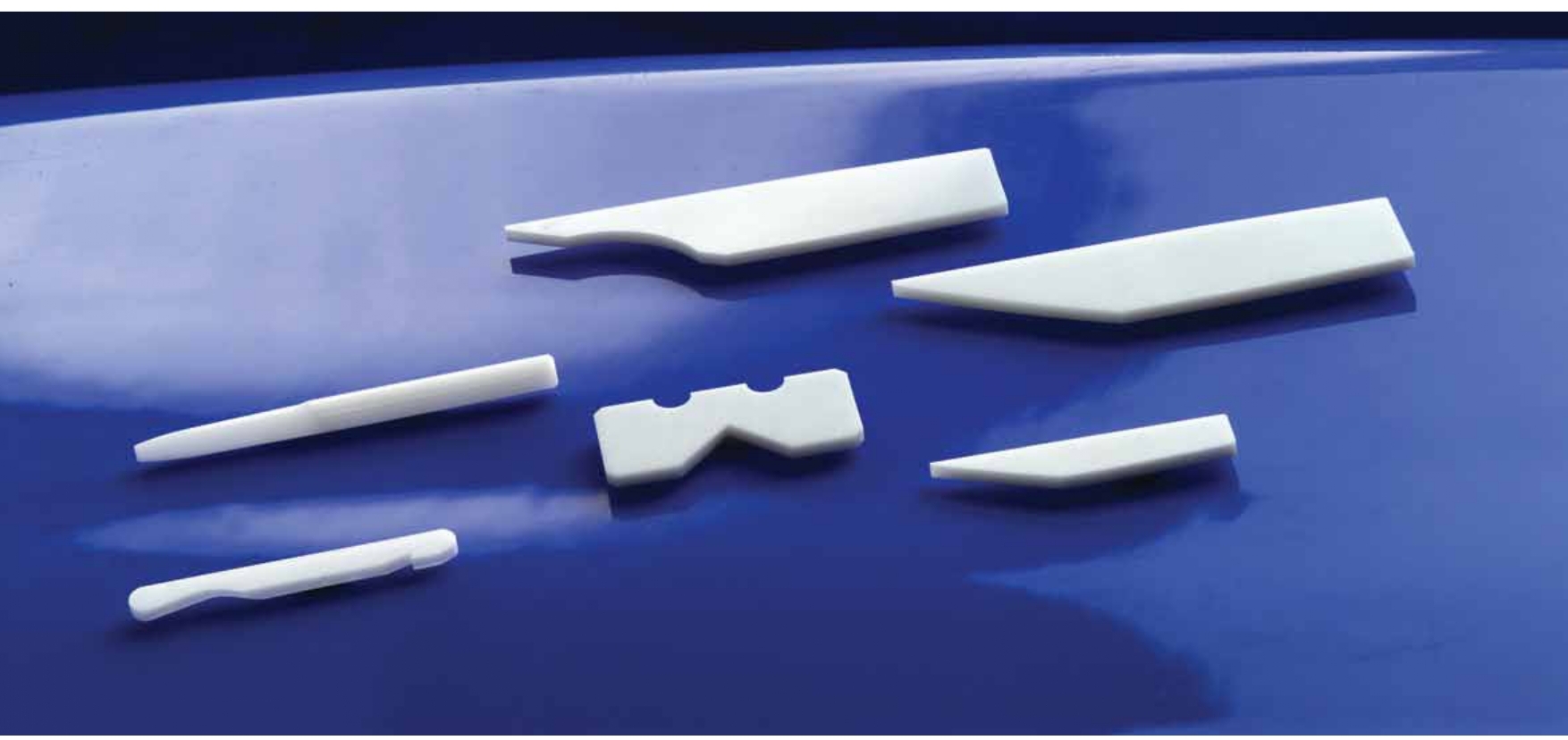

NOGA Ceramic Applications and CR Blades represent a comprehensive line of industrial deburring tools and replacement blades engineered for precision finishing on plastics, soft metals, and abrasive materials. Constructed from high-hardness Ceramic 1250HV, the blades deliver extended working life, safety features, and specialized edge profiles for intricate deburring, surface scraping, parting line deflashing, and double-edge burr removal.

Key Features & Capabilities

Blade Material: Manufactured from Ceramic 1250HV for high wear resistance and extended service life.
Tool Variants & Sets: Available in complete handheld deburring configurations, adjustable scrapers, double-edge burr removers, and dedicated replacement blades.
Specialized Blade Geometries: Includes Convexed, Concaved, Mini Convexed, Mini Scraper, Soft Cut (65°), Hard Cut (75°), and V-Shaped blade configurations.
Handle Options: Compatible with specialized ergonomic handles including NogaCut Handle (NC5000), Cera-Cut Handle (CR2100), Ceramic Mini Handle (CR1400), and Ceramic Mini Scraper Handle (YT10004) utilizing self-gripping tapers and spare blade storage.

Technical Specifications

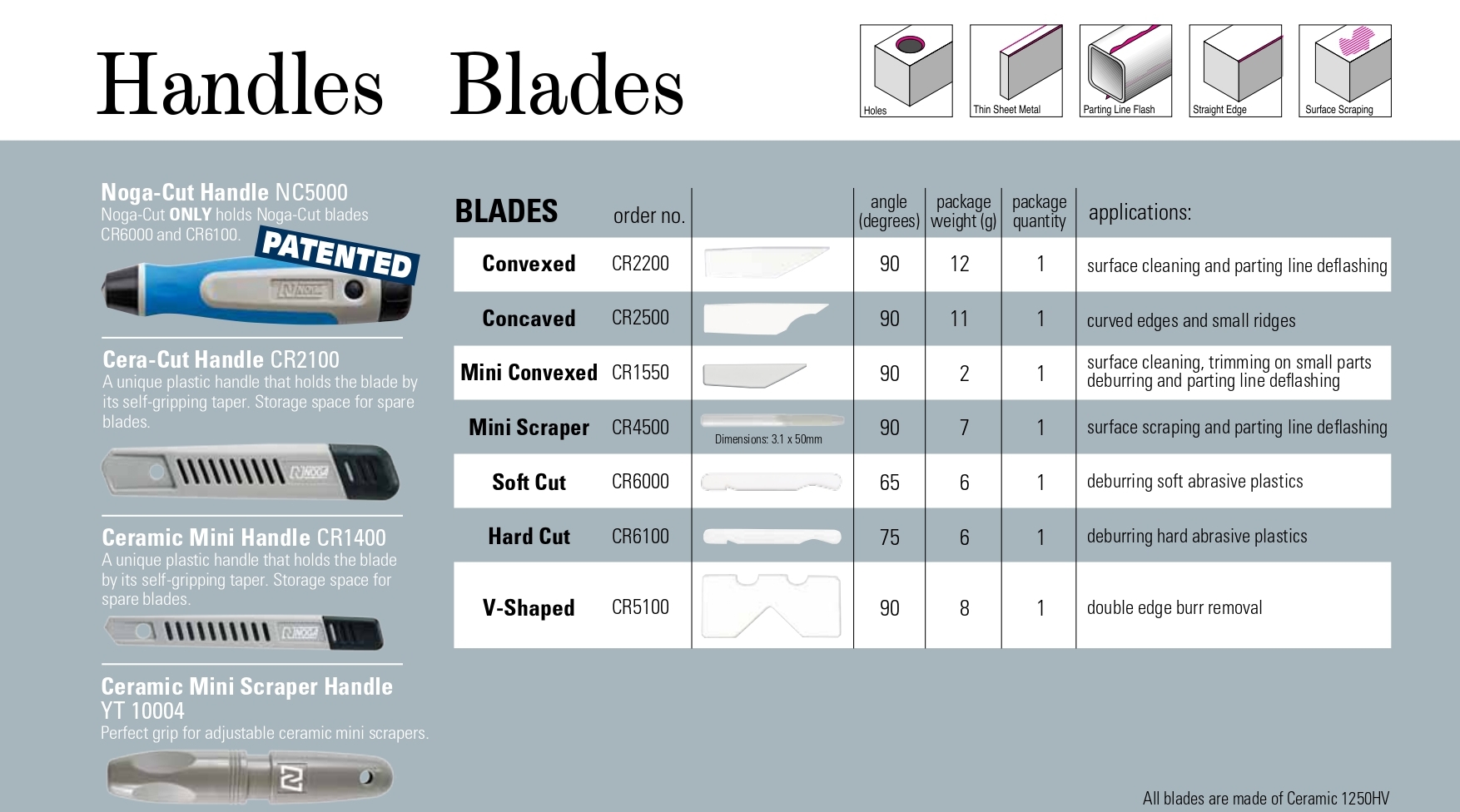

Ceramic CR Blades Matrix

BLADES	Order No.	Angle (Degrees)	Package Weight (g)	Package Quantity	Applications
Convexed	CR2200	90	12	1	Surface cleaning and parting line deflashing
Concaved	CR2500	90	11	1	Curved edges and small ridges
Mini Convexed	CR1550	90	2	1	Surface cleaning, trimming on small parts, deburring and parting line deflashing
Mini Scraper	CR4500	90	7	1	Surface scraping and parting line deflashing
Soft Cut	CR6000	65	6	1	Deburring soft abrasive plastics
Hard Cut	CR6100	75	6	1	Deburring hard abrasive plastics
V-Shaped	CR5100	90	8	1	Double edge burr removal

Note: Mini Convexed blade dimensions: 3.1 x 50 mm.

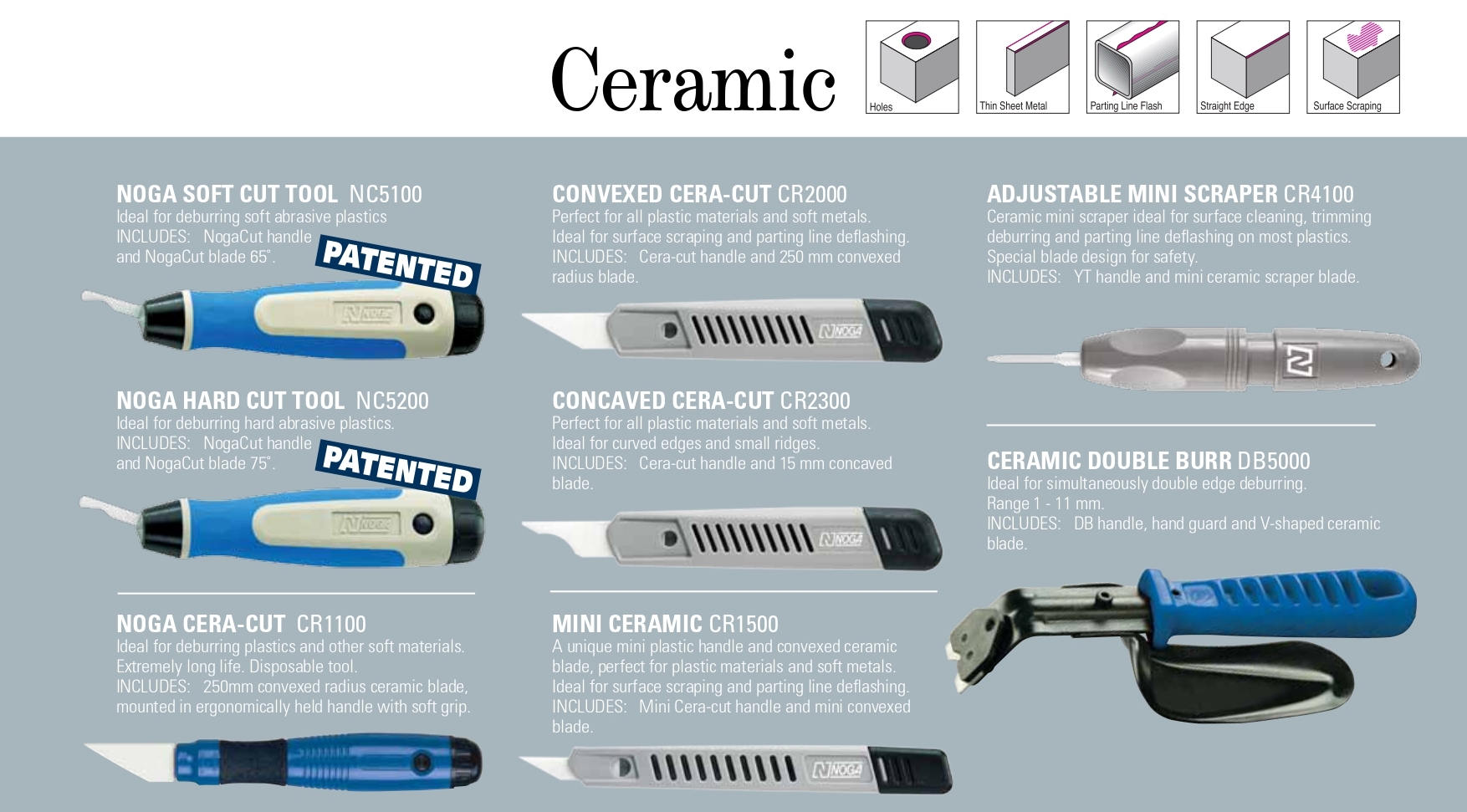

Tool Systems & Included Components

Model Code	Product Name	Included Components & Configuration
NC5100	Noga Soft Cut Tool	NogaCut handle and NogaCut blade 65°
NC5200	Noga Hard Cut Tool	NogaCut handle and NogaCut blade 75°
CR1100	Noga Cera-Cut	250mm convexed radius ceramic blade, mounted in ergonomically held handle with soft grip (Disposable tool)
CR2000	Convexed Cera-Cut	Cera-cut handle and 250 mm convexed radius blade
CR2300	Concaved Cera-Cut	Cera-cut handle and 15 mm concaved blade
CR1500	Mini Ceramic	Mini Cera-cut handle and mini convexed blade
CR4100	Adjustable Mini Scraper	YT handle and mini ceramic scraper blade
DB5000	Ceramic Double Burr	DB handle, hand guard, and V-shaped ceramic blade (Range 1 - 11 mm)
CR3000	Noga Cera-Cut Set	Cera-Cut handle (CR2100), 1 pc. Convexed blade (CR2200), 1 pc. Concaved blade (CR2500)
CR5500	NogaCut Set	NogaCut handle (NC5000), 5 pcs. Soft Cut blades 65° (CR6000), 5 pcs. Hard Cut blades 75° (CR6100)
