The NOGA Heavy Duty Countersink Handles & Tools program is designed for heavy-duty deburring, chamfering, and countersinking applications. Engineered for maximum user comfort with the NG-3 handle, the system utilizes heavy-duty cranked RotoDrive holders combined with specialized interchangeable blades (C12, C20, C20TiN, C30, and EX28) to efficiently process holes and outer diameters (O.D.) on bars and tubes.
- NG-3 Handle (NG3000): Ergonomically designed NogaGrip-3 provides maximum comfort and securely holds all heavy-duty blade holders.

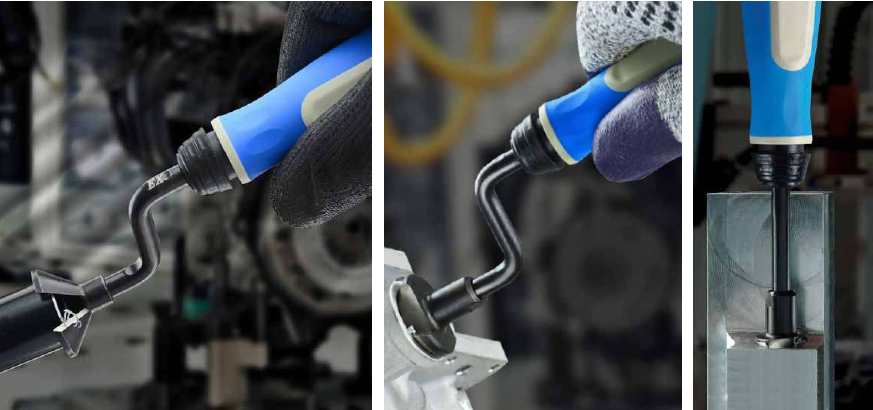

- Heavy Duty RotoDrive Holders: Cranked holders featuring an external M7 thread with a working diameter of 80 mm, providing 40 mm displacement for heavy-duty burr removal and continuous rotation for fast chamfering.
- Blade Material: All blades are manufactured from High-Speed Steel (H.S.S.) with a hardness of 62–64 Rc.
- TiN-Coated Option: TiN-coated variant (C20TiN) provides a vastly extended blade life.
- Material Compatibility: Optimized for work on steel, aluminum, and plastic.
Blade Matrix
System Configurations & Included Components
- Countersink NG3100: Includes NG-3 handle, C holder, and C20 countersink (20 mm). Designed for standard countersinking and deep hole chamfering.

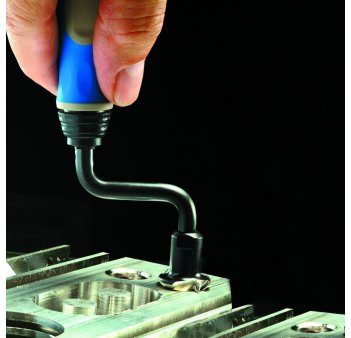

- Heavy Duty RotoDrive NG3400: Includes NG-3 handle, H.D. cranked RotoDrive holder, and C20 countersink (20 mm).
- Heavy Duty External RotoDrive NG3500: Includes NG-3 handle, H.D. external RotoDrive holder, and EX28 countersink (Range: 8-28 mm for O.D. on bars and tubes).
- H.D. Rotodrive Holder (EL0802): Heavy-duty cranked holder with external M7 thread; holds C12, C20, and C30 countersinks (Working diameter: 80 mm).
- H.D. Ex. Rotodrive Holder (EL0902): Heavy-duty cranked holder; accepts EX28 external countersink (Working diameter: 80 mm).
- C Holder (CH3000): Holds C12, C20, and C30 countersinks with M7 external thread. Features a hexagonal cross section to prevent rotation inside the handle (Length: 131 mm).
