CP 2 FLUTE COUNTERSINKS

Code:

▪For Hole Deburring / Chamfering with a higher MRR(Material Removal Rate).
▪For hole size from 4 to 11 mm.
▪Suitable for chamfering/deburring holes on Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
▪Can be used manually with the R-SD Handle (54034), CS-R Revolving Holder (62090) or on Electric Drivers/Lathe/Drill/VMC machines.
▪For Clockwise direction use.
▪For Hole Deburring / Chamfering with a higher MRR(Material Removal Rate).

Click to Expand

CP 2 FLUTE COUNTERSINKS

Product Overview

The CP 2 Flute Countersinks by CP Gratex are engineered for hole deburring and chamfering operations requiring a higher Material Removal Rate (MRR). Designed for versatility, these tools can be used manually with compatible revolving holders or mounted on machine tools such as lathes, drills, and VMCs for clockwise operation.

Key Features & Capabilities

Designed for hole deburring and chamfering with a higher Material Removal Rate (MRR).
Suitable for hole sizes ranging from 4 mm to 29 mm depending on the model.
Includes complete sets and revolving holders such as the F Set (48210) and Countersink Set - Revolving (48032).
Can be used manually or on machines.

Technical Specifications

Type / Model	$d_1$	$t$	$D$	$@$	$L_1$	$L_2$	Range	SKU
CS-12	12.5	M6x1	12.5	45°	23	29.25	4 – 11	48120
CS-20	12.2	M6x1	21	45°	15	29	4 – 19	48200
CS-30	12.2	M6x1	31	45°	17.5	36.5	5 – 29	48300

Sets & Kits

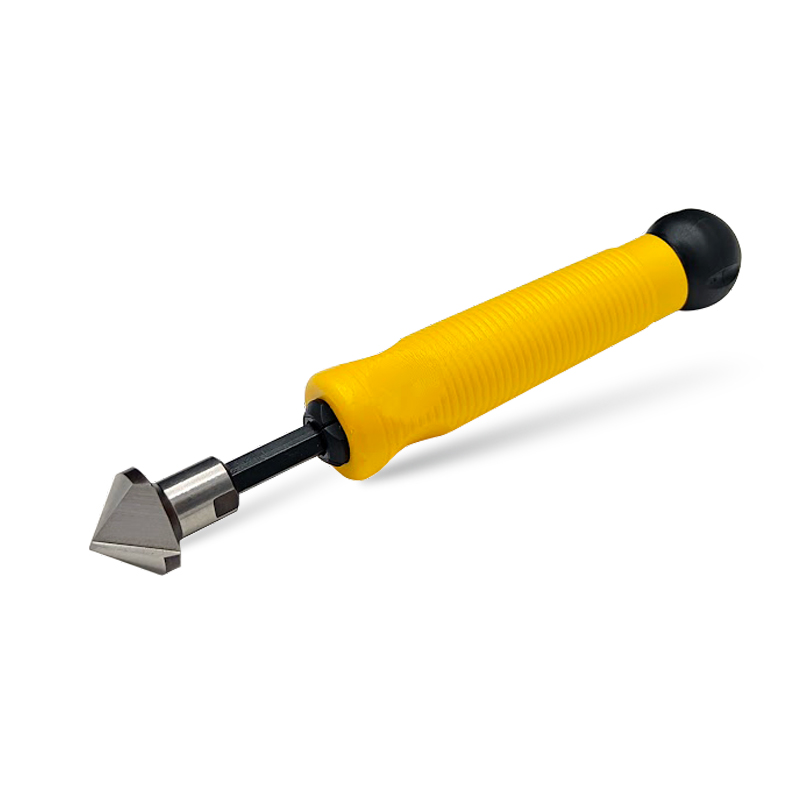

F Set (48210): Includes T-SD handle, CS-Long telescopic holder, and CS-20 countersink.

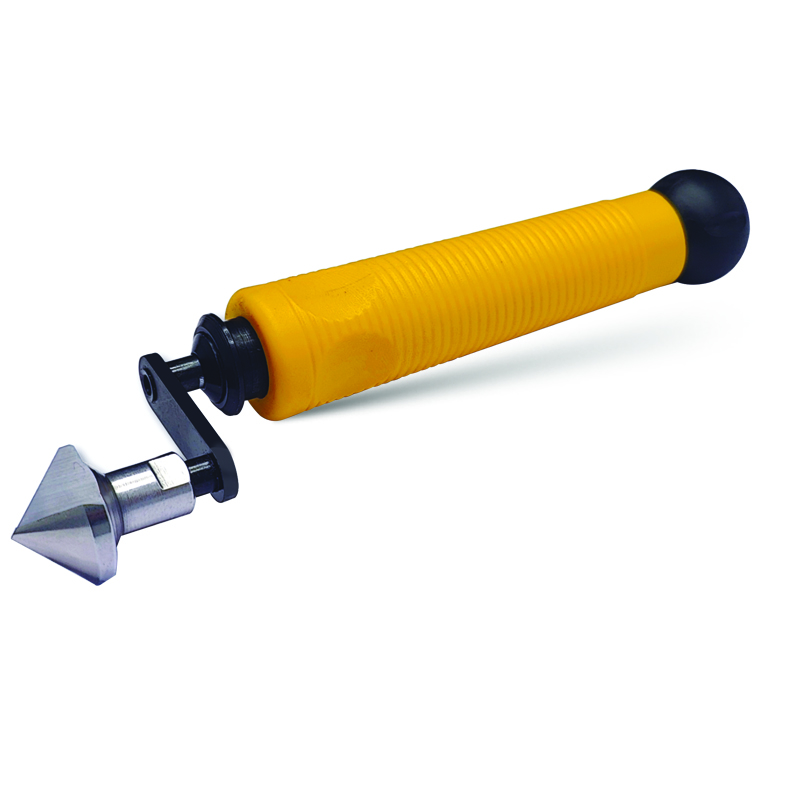

Countersink Set - Revolving (48032): Includes CS-20 countersink with CS-revolving handle.
