CP 0 FLUTE COUNTERSINKS

CP 0 FLUTE COUNTERSINKS

Download Catalog

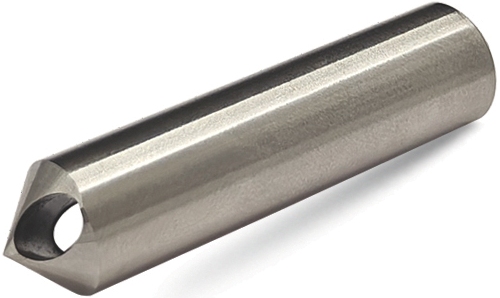

CZ-129 (48129)

Material	Countersink – HSS
Range covered	Ø2 to 10mm
Dimension in mm	Max Dia = 13, Shank Dia = 12.5, L = 55.5, Included angle: 90°
Packaging	Packaging: Card Box; Optional : Plastic Box
Pack Qty.	1
Packing Wt. in gms	53

CZ-126 (48126)

Material	Countersink – HSS
Range covered	Ø4 to 10mm
Dimension in mm	Max Dia = 13, Shank Dia = 12.5, L = 58, Included angle: 90°
Packaging	Packaging: Card Box; Optional : Plastic Box
Pack Qty.	1
Packing Wt. in gms	54

CZ-259 (48259)

Material	Countersink – HSS
Range covered	Ø4 to 22mm
Dimension in mm	Max Dia = 25, Shank Dia = 12, L = 79.6, Included angle: 90°
Packaging	Packaging: Card Box; Optional : Plastic Box
Pack Qty.	1
Packing Wt. in gms	100

CZ-256 (48256)

Material	Countersink – HSS
Range covered	Ø10 to 22mm
Dimension in mm	Max Dia = 25, Shank Dia = 12, L = 79.6, Included angle: 60°
Packaging	Packaging: Card Box; Optional : Plastic Box
Pack Qty.	1
Packing Wt. in gms	108

CZH-289 (48289)

Material	Countersink – HSS
Range covered	Ø2 to 8mm
Dimension in mm	Max Dia = 10.5, Shank 1/4″ Hex, L = 27.5, Included angle: 90°
Packaging	Plastic Box
Pack Qty.	1
Packing Wt. in gms	10.5

CZH-719 (48719)

Material	Countersink – HSS
Range covered	Ø4 to 10mm
Dimension in mm	Max Dia = 21, Shank = 1/4″ Hex, L = 34.9, Included angle: 90°
Packaging	Plastic Box
Pack Qty.	1
Packing Wt. in gms	27

CZ-129 (48129)

For Hole deburring / Chamfering at higher speeds with no vibrations and chatter-free results.
For hole size from 2 to 10 mm.
Suitable for chamfering/deburring holes on Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Only for use on Electric Drivers/Lathe/Drill/VMC machines.

CZ-126 (48126)

For Hole deburring / Chamfering at higher speeds with no vibrations and chatter-free results.
For hole size from 4 to 10 mm.
Suitable for chamfering/deburring holes on Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Only for use on Electric Drivers/Lathe/Drill/VMC machines.

CZ-259 (48259)

For Hole deburring / Chamfering at higher speeds with no vibrations and chatter-free results
For hole sizes from 4 to 22 mm.
Suitable for chamfering/deburring holes on Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Only for use on Electric Drivers/Lathe/Drill/VMC machines.

CZ-256 (48256)

For Hole deburring / Chamfering at higher speeds with no vibrations and chatter-free results.
For hole size from 10 to 22 mm.
Suitable for chamfering/deburring holes on Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Only for use on Electric Drivers/Lathe/Drill/VMC machines.

CZH-289 (48289)

For Hole deburring / Chamfering at higher speeds with no vibrations and chatter-free results
For hole size from 2 to 8 mm.
Suitable for chamfering/deburring holes on Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Can be used manually with the CG-2 Handle (58044) and Crank Holder (62092) or on Electric Drivers/Lathe/Drill/VMC machines.
Clockwise Direction use.

CZH-719 (48719)

For Hole deburring / Chamfering at higher speeds with no vibrations and chatter-free results.
For hole size from 7 to 19 mm.
Suitable for chamfering/deburring holes on Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Can be used manually with the CG-2 Handle (58044) and Crank Holder (62092) or on Electric Drivers/Lathe/Drill/VMC machines.
Clockwise Direction use.
