CP LIGHT DUTY DEBURRING TOOLS WITH 2.6 MM BLADES

Download Catalog

ET – 1 (38030)

Material	Material: Handle – Metal Body with Soft Sleeve; Blade – HSS (M2 Grade)
Blade Hardness	62-64 HRC
Dimension in mm	L = 177, Handle Ø = 12, End Cap Ø = 18
Packaging	Card Box
Pack Qty.	1
Packing Wt. in gms	53

CG – 1 (38114)

Material	Material: Handle – Polyacetal Handle with Rubber Grip; Blade – HSS (M2 Grade)
Blade Hardness	62-64 HRC
Dimension in mm	L = 114, Handle Ø = 19.8, End Cap Ø = 21.7
Packaging	Card Box
Pack Qty.	1
Packing Wt. in gms	37

DT – 52 – SD (34522)

Material	Material: Handle – Polyacetal; Holder – Steel; Blade – HSS (M2 Grade)
Blade Hardness	62-64 HRC
Dimension in mm	L = 148 min, 213 max; Handle Ø = 23.7, End Cap Ø = 24
Packaging	Card Box
Pack Qty.	1
Packing Wt. in gms	94

ET – 1 (38030)

Metallic handle with soft grip and Ball end cap.
Holds the Ø2.6mm P-1 blade.
Works best on metals forming spiral chips such as Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Laser marked for easy identification purpose.
For right hand users only.

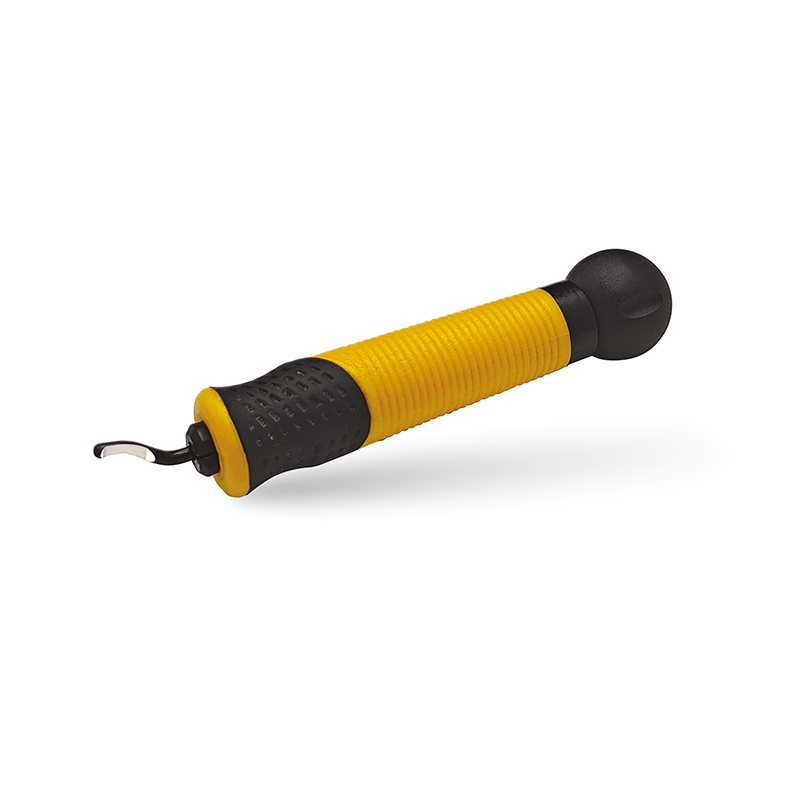

CG – 1 (38114)

Poly Acetal Body Handle with Soft Grip & Ball End Cap.
Holds the Ø2.6mm P-1 blade.
Works best on metals forming spiral chips such as Steel, Aluminum and Copper. Can also be used on all other metals (hardness<35 HRC) and plastics.
Laser marked for easy identification purpose.
For right hand users only.

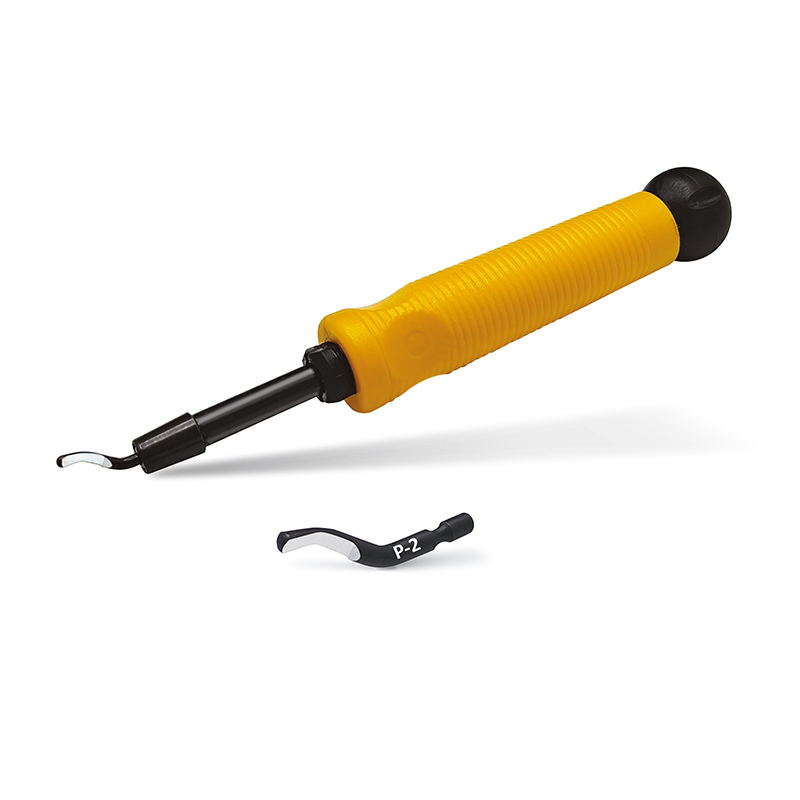

DT – 52 – SD (34522)

Poly Acetal Body T-SD (Yellow/Black) Handle with Telescopic Holder DT(P) & Ball End Cap.
Holds the Ø2.6mm P-1 & P-2 Blades.
P-1 blade works best on metals forming spiral chips such as Steel, Aluminum and Copper whereas P-2 blade is suitable for metals forming brittle burr such as Cast Iron, Brass. Both the blades can also be used on other metals (hardness<35 HRC) and plastics.
Collet Action ensures firm locking of Plain Surface Holders.
For right and left hand users only
