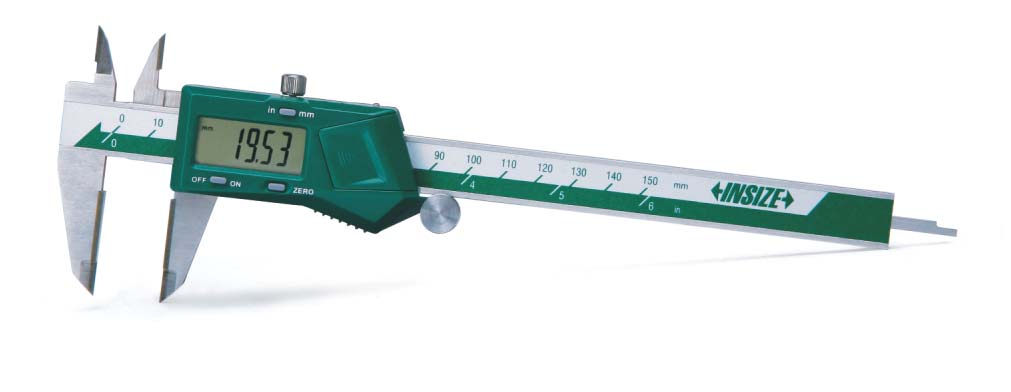

INSIZE Digital Caliper with Carbide Tipped Jaws

INSIZE DIGITAL CALIPER WITH CARBIDE TIPPED JAWS (CODE – 1110)

Carbide tipped jaws for inside and outside measurements Resolutions: 0.01mm/0.0005* Buttons : zero, mm/inch, on/off After power off, move the digital unit to turn on power Battery CR2032 Data Output Meet DIN862 Made of stainless steel Optional accesory: data output system Supplied with manufaturer calibration certificate

Download Catalog

Non waterproof, with data interface (data output cable code 7315-21 need receiver)

Code	Range	Accuracy	L	a	b	c	d	Remark
1110-150A*	0-150mm/0-6*	±0.03mm	236 mm	21 mm	16 mm	16 mm	40 mm	Cardide tipped upper and lower jaws
1110-200A*	0-200mm/0-8*	±0.03mm	286 mm	24 mm	19 mm	16 mm	50 mm	Cardide tipped upper and lower jaws
1110-300A*	0-300mm/0-12*	±0.03mm	400 mm	25 mm	20.5 mm	16 mm	60 mm	Cardide tipped upper and lower jaws
1110-150B*	0-150mm/0-6*	±0.03mm	236 mm	21 mm	16 mm	16 mm	40 mm	Cardide tipped lower jaws
1110-200B*	0-200mm/0-8*	±0.03mm	286 mm	24 mm	19 mm	16 mm	50 mm	Cardide tipped lower jaws
1110-300B*	0-300mm/0-12*	±0.03mm	400 mm	25 mm	20.5 mm	16 mm	60 mm	Cardide tipped lower jaws

Non waterproof, built-in wireless (receiver code 7315-2/3/6/7/8/9 is required)

Code	Range	Accuracy	L	a	b	c	d	Remark
1110-150AWL*	0-150mm/0-6*	±0.03mm	236 mm	21 mm	16 mm	16 mm	40 mm	Cardide tipped upper and lower jaws
1110-200AWL*	0-200mm/0-8*	±0.03mm	286 mm	24 mm	19 mm	16 mm	50 mm	Cardide tipped upper and lower jaws
1110-300AWL*	0-300mm/0-12*	±0.03mm	400 mm	25 mm	20.5 mm	16 mm	60 mm	Cardide tipped upper and lower jaws
1110-150BWL*	0-150mm/0-6*	±0.03mm	236 mm	21 mm	16 mm	16 mm	40 mm	Cardide tipped lower jaws
1110-200BWL*	0-200mm/0-8*	±0.03mm	286 mm	24 mm	19 mm	16 mm	50 mm	Cardide tipped lower jaws
1110-300BWL*	0-300mm/0-12*	±0.03mm	400 mm	25 mm	20.5 mm	16 mm	60 mm	Cardide tipped lower jaws

IP67 dust/waterproof, without data interface

Code	Range	Accuracy	L	a	b	c	d	Remark
1110-150C*	0-150mm/0-6*	±0.03mm	236 mm	21 mm	16 mm	16 mm	40 mm	Cardide tipped upper and lower jaws
1110-150D*	0-150mm/0-6*	±0.03mm	236 mm	21 mm	16 mm	16 mm	40 mm	Cardide tipped lower jaws
