Asker hand held durometer measure hardness from sponge to hard rubber and plastics, covering the range of Shore D, Shore A, Asker C and Asker F hardness scales.
They are easy-to-use, portable and very accurate with a high degree of repeatability. Measurements are non-destructive. Asker durometers offer optional peak indicators to more closely monitor the difference between the peak reading and the tendency of the measurement to “creep” back as time elapses.
Durometer test stands offer greater accuracy by ensuring constant speed, weight and angle, which tend to vary in hand held hardness testing.
Handheld Durometers
The EX Series durometer is available in Shore A, Shore D and Asker C hardness scales with an accuracy of ± 1 point.
The X Series durometer is available in Shore A, Shore D, Asker C, and Asker F hardness scales with an accuracy of ±0.75 points. The X Series also offers a model with a long presser foot for small or recessed areas.
Both durometers are available with an optional peak indicator.
EX Durometer / Hardness Tester
Series EX
EX-A Type Shore A Normal Rubber
EX-D Type Shore D Hard Rubber & Plastics
EX-C Type Asker C Soft Rubber
Durometer Selection
EX Durometer Selection
Model | EX-C | EX-A | EX-D |
Scale | Asker C | Shore A | Shore D |
Indentor | Hemispherical | Flat point | Cone point |
Material | Soft rubber | Normal rubber | Hard rubber & plastic |
Standard | JIS K-7312 | ASTM D-2240 | ASTM D-2240 |
Measuring Force | 1 kgf | 1 kgf | 5 kgf |
Durometer Standards
Type | Standards | Measuring Force |
Asker C | JIS K-7312 | 1 kgf |
Shore A | ASTM D-2240 | 1 kgf |
Shore D | ASTM D-2240 | 5 kgf |
X Durometer / Hardness Tester
Series X
X Series Scales
X Series Common Scales | |||
Standard Model | ‘L’ Model | Application | Standard |
X-A | X-AL | Normal rubber & softer plastics | ASTM D 2240 |
X-C | X-C1L | Soft rubber, sponge, textile windings | JIS K 7312/Asker C |
X-D | X-DL | Hard rubber & plastics | ASTM D 2240 |
X-F | — | Urethane foam, non-woven fabric | Asker F |
X Series Special Scales | |||
Standard Model | ‘L’ Model | Application | Standard |
X-JA | X-JAL | Normal rubber & softer plastics | JIS K 6301 |
X-B | X-BL | Semi rigid rubber & plastics | ASTM D 2240 |
X-C2 | X-C2L | Soft rubber & sponge | Asker C2 |
X-CS | — | Polystyrene foam | Asker CS |
X-E | X-EL | Soft & cellular rubber | JIS K 6253 |
Durometer Selection
X Durometer Selection
Scale | Asker F | Asker C | Shore A | Shore D |
Indentor | Rectangular | Hemispherical | Flat point | Cone point |
Material | Urethane foam & non-woven fabric |
Soft rubber | Normal rubber | Hard rubber & plastic |
Standard | Asker F | JIS K-7312 | ASTM D-2240 | ASTM D-2240 |
Measuring Force | ???? | 1 kgf | 1 kgf | 5 kgf |
Constant Load Stand
Durometer constant load stands eliminate speed and load variables which occur when hardness testing rubber and plastic samples by hand.E Series uses a standard weight and rigid coupling.CL-150 uses a standard weight and pneumatic speed control. CLE-150 uses standard weight and adjustable speed control.For durometer Types Shore A, Shore D and Asker C hardness scales.
e Series Constant Load Stand with Rigid Coupling
e Series Constant Load Stand
e-1000 for Shore A & Asker C Durometers
e-5000 for Shore D Durometers
Durometer sold seperately
Specifications
e Series Specifications
Model | Durometer | Weight |
e-1000 | Shore A and Asker C | 1000g |
e-5000 | Shore D | 5000g |
CL-150 Constant Load Stand with Flexible Coupling
Standard Models
CL-150L (for Shore A and Asker C Durometers)
CL-150H (for Shore D Durometer)
CL-150M (for Shore A, D and Asker C Durometers)
Special Model
CL-150R1 with Print Roller Holder (for Shore A and Shore C Durometers)
Durometer sold seperately
Specifications
CL-150 Specifications
Model | Durometer | Weight |
CL-150L | Shore A and Asker C | 1000g |
CL-150H | Shore D | 5000g |
CL-150M | Shore A, D and Asker C | 1000g/5000g |
Standard Features
- Test speed and weight are constant
- Test speed is adjustable with pneumatic damper
- Unique flexible coupling system automatically aligns the presser foot to the surface of sample

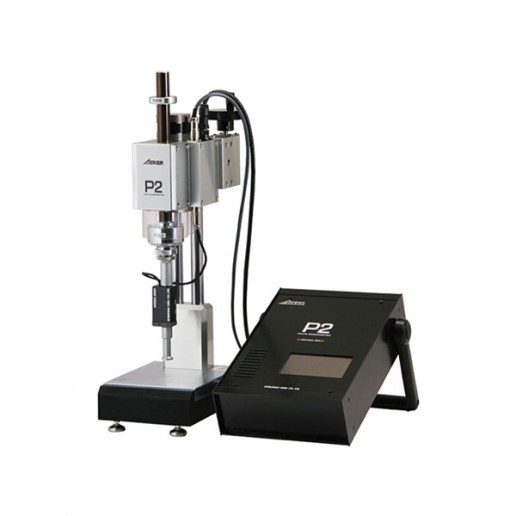

Auto Loading Durometer
P2 Auto Loading Durometer
Model P2-A Shore A scale, Normal rubber (ASTM D-2240)
Model P2-D Shore D scale, Hard rubber and plastics (ASTM D-2240)
Model P2-D0 Shore D0 scale, Dense textile windings (ASTM D-2240)
Model P2-C Asker C scale, Soft rubber (JISK-7312)
Model P2-E Asker E scale, Soft rubber and sponge (JIS K-6253)
Standard Features
- Dual Timer Peaks, Peak and Real time Modes
- Unique flexible coupling automatically aligns to surface of sample to provide super stable reliable reading
- Digital speed control
- Precision stepping motor
- RS-232 Output
- Optional data acquisition software available
Durometer Accessories
Durometer accessories are intended to ensure correct durometer operation. They should not be used for calibration.
Indentor Height Gauge
IHG-AD for Shore A and Shore D Model Durometers
IHG-C for Asker C Model Durometers
Durometers can be checked for proper operation using an indentor height gauge to check the height of the indentor point. Available for models A, D and Asker C. Two gauges measure 2, 50 and 100 points.
Note: These should not be used for calibration, only to ensure the durometer is working correctly.
Reference Specimens
RS-A (60 points)
RS-C (55 points)
RS-D (80 points)
These test block specimens are convenient references to the Durometer’s operating condition. Available for type A, type C and type D.
