dial thickness gauges - review | Gokul Traders

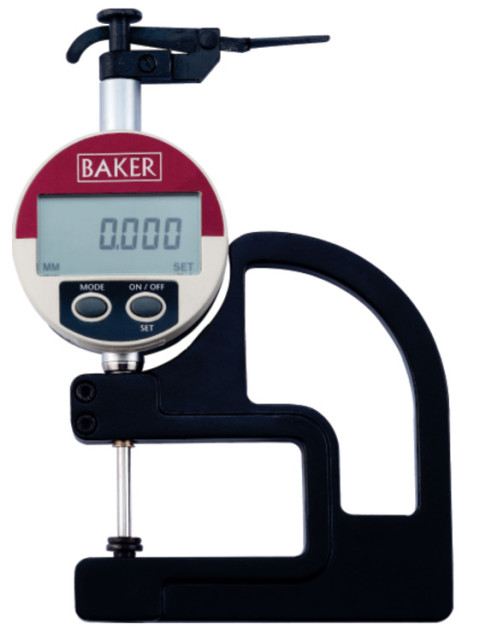

Dial Thickness Gauges use for quick measurement of thickness of sheets, paper, leather etc

Buy Now

TYPE	RANGE	Reading	Throat Depth
K130/D	25 mm / 0.5″	0.001 mm / 0.00005″	30 mm
K142/D	12.5 mm / 0.5″	0.001 mm / 0.00005″	100 mm
K138/D	25 mm / 1.0″	0.001 mm / 0.00005″	50 mm
K145/D	12.5 mm / 0.5″	0.001 mm / 0.00005″	200 mm
K150/D	25 mm / 1.0″	0.001 mm / 0.00005″	200 mm

Every gauge carries a calibration certificate giving actual values
Dial Thickness Gauges use for quick measurement of thickness of sheets, paper, leather etc
In series K130, K138/L and K142, K145, K150 measurement pressure is independent of the user, resulting in accurate readings of thickness
K138 ‘Push Down Type’ thickness gauge is particularly useful where fine measurement is not required – for example plywood
Well-balanced frames and handgrips coupled with lightweight make these gauges easy to use for measurement
Supplied with Ø10 mm flat anvil as standard. Can also be supplied with Ø20 mm flat anvil on request
