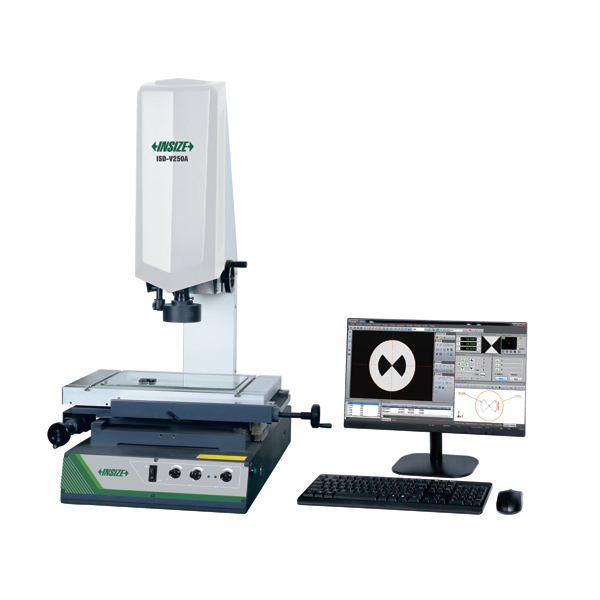

| Code | ISD-V150A | ISD-V250A | ISD-V300A | ISD-V400A | ||||
|---|---|---|---|---|---|---|---|---|
| Measuring range (X×Y×Z) | 150x100x150 mm | 250x150x150 mm | 300x200x150 mm | 400x300x150mm | ||||
| Stage size | 354×228 mm | 450×280 mm | 500×330 mm | 606×466 mm | ||||
| Glass stage size | 210×160 mm | 306×196 mm | 350x250mm | 450×350 mm | ||||
| Resolution of X/Y/Z axis | 0.5μm | |||||||
| Accuracy of X/Y axis | ≤(3.5+L/100)μm (L is the measuring length in mm) | |||||||
| Repeatability of X/Y axis | 2μm | |||||||
| Objective | 0.7X~4.5X (Zoom) | |||||||
| Working distance | 92 mm | |||||||
| Magnification | 33X~195~ (on 19″ monitor) | |||||||
| Camera | 1/3″ color CCD, 0.3M pixel | |||||||
| Illumination | surface and contour with adjustable LED | |||||||
| Max. height of workpiece | 105 mm | |||||||
| Max. weight of workpiece | 20 kg | |||||||
| Operation system | Windowa 7/8/10 | |||||||
| Drive method | manual | |||||||
| Power supply | 110/220V, 50/60Hz | |||||||
| Dimension (LxWxH) | 560x540x850 mm | 760x600x900 mm | 760x600x900 mm | 970x670x940 mm | ||||
| Weight | 100kg | 120kg | 140kg | 240kg | ||||
