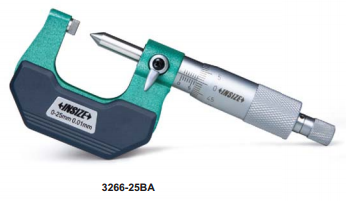

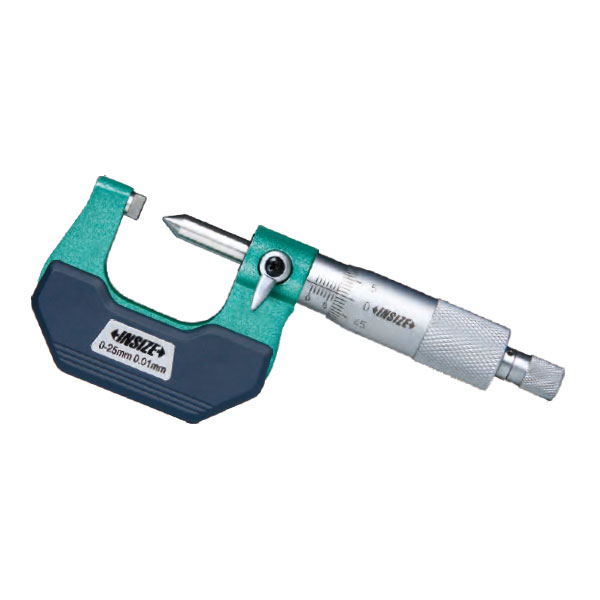

INSIZE CRIMP HEIGHT MICROMETERS (CODE – 3266)

Measure the height of crimp contact Graduation 0.01mm Ratchet stop Supplied with setting standards (except 0-25mm)
Code Range Type Accuracy L (mm) b (mm)
3266-25BA 0-25mm B ±4μm 34.5 25
3266-25CA 0-25mm C ±4μm 34.5 25
3266-50CA 25-50mm C ±4μm 59.5 32
3266-75CA 50-75mm C ±5μm 84.5 44.5
3266-100CA 75-100mm C ±5μm 109.5 57
3266-25DA 0-25mm D ±4μm 34.5 25



crimp height micrometer-3266_1

  • Measure the height of crimp contact
  • Graduation 0.01mm
  • Ratchet stop
  • Supplied with setting standards (except 0-25mm)
