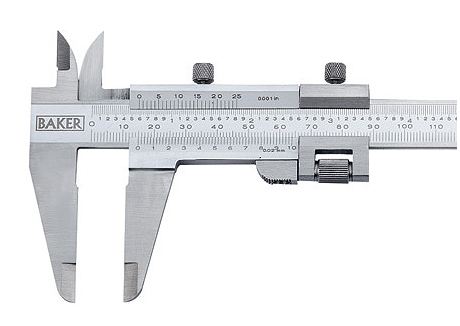

BAKER MECHANICAL VERNIER CALIPER

Mechanical Vernier Caliper VCF (with fine adjustment) FEATURES OF MECHANICAL VERNIER CALIPER Every gauge carries a calibration certificate giving actual values With 0.02 mm / 0.001” Least Count Measures OD, ID, Step and Depth Accuracy as per DIN 862 Robust, Hardened and Ground stainless steel jaws and beam Supplied in a sleek plastic box Type

Download PDF

Mechanical Vernier Caliper VCF (with fine adjustment)

FEATURES OF MECHANICAL VERNIER CALIPER

Every gauge carries a calibration certificate giving actual values
With 0.02 mm / 0.001” Least Count
Measures OD, ID, Step and Depth
Accuracy as per DIN 862
Robust, Hardened and Ground stainless steel jaws and beam
Supplied in a sleek plastic box

Type	Reading	Range
VCF10	0.02mm/0.001″	0-130 mm / 0-5″	WITH FINE ADJUSTMENT
VCF20	0.02mm/0.001″	0-180 mm / 0-7″	WITH FINE ADJUSTMENT
VCF30	0.02mm/0.001″	0-280 mm / 0-11″	WITH FINE ADJUSTMENT

Check the PDF

Vernier Calipers VC (without fine adjustment)

FEATURES:

Every gauge carries a calibration certificate giving actual values
With 0.02 mm / 0.001” Least Count
Measures OD, ID, Step and Depth
Accuracy as per DIN 862
Robust, Hardened and Ground stainless steel jaws and beam
Supplied in a sleek plastic box

Type	Reading	Range
VC10	0.02mm/0.001″	0-150 mm / 0-6″	WITHOUT FINE ADJUSTMENT
VC20	0.02mm/0.001″	0-200 mm / 0-8″	WITHOUT FINE ADJUSTMENT
VC30	0.02mm/0.001″	0-300 mm / 0-12″	WITHOUT FINE ADJUSTMENT
