Imada offers motorized peel testers in vertical or horizontal configurations. The motorized test stand, digital force gauge and peel fixture apply tension to a safety seals, tapes and laminates. Special attachments and fixtures facilitate 45°, 90°, 180°, ‘T’ and rotary peel tests.
45 Degree Peel Tester
MX2-110 Test Stand
ZT / DS2 Digital Force Gauge
P45-50N Fixture
Standard Features
45° Peel Tester Standard Features
45° peel fixture Clearance: 10mm ~ 90mm
Wide speed range: 0.4 – 12 in/min speed is set digitally (optional speed ranges available)
Screw drive system and high performance brushless motor provides smooth and powerful operation over the entire speed range.
Selectable Manual, Increment, and Force Control (with Z Series
Easy-to-use program dial and menu screens control mode, speed, timer and cycles
MX2-110 Stroke: 9.4″ (240mm)
Max clearance 9″ (with extender 14″)
Force gauge units are selectable: Newton, lbf and kgf
Force gauge output: RS-232C, Digimatic and analog outputs
90 Degree Peel Tester
MX2-110 Test Stand
ZT / DS2 Digital Force Gauge
P90-200N Fixture
Standard Features
90° Peel Tester Standard Features
90° peel fixture maximum sample length 155mm (6.1″), width 80mm (3.14″)
Wide speed range: 0.4 – 12 in/min speed is set digitally (other speed ranges available)
Screw drive system and high performance brushless motor provides smooth and powerful operation over the entire speed range.
Selectable Manual, Increment, and Force Control (with Z Series gauges) modes
Easy-to-use program dial and menu screens control mode, speed, timer and cycles
MX2-110 Stroke: 9.4″ (240mm)
Max clearance 9″ (with extender 14″)
Force gauge units are selectable: Newton, lbf and kgf
Force gauge output: RS-232C, Digimatic and analog outputs

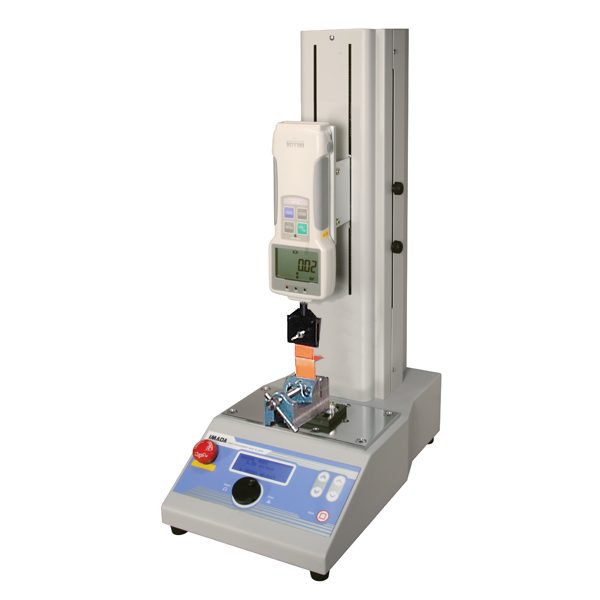

T-Peel Tester
MX2-110 Test Stand
ZT/DS2 Digital Force Gauge
Gripping Attachments
Standard Features
T-Peel Tester Standard Features
Wide speed range: 0.4 – 12 in/min speed is set digitally (optional speed ranges available)
Screw drive system and high performance brushless motor provides smooth and powerful operation over the entire speed range.
Selectable Manual, Increment, and Force Control (with ZT Series gauges) modes
Easy-to-use program dial and menu screens control mode, speed, timer and cycles
MX2-110 Stroke: 9.4″ (240mm)
Max clearance 9″ (with extender 14″)
Force gauge units are selectable: Newton, lbf and kgf
Force gauge output: USB (ZT), RS-232C, Digimatic and analog outputs
Rotary Peel Tester
MX2-110 Test Stand
ZT/DS2 Digital Force Gauge
RP-1A Rotary Peel Fixture
Standard Features
Rotary Peel Tester Standard Features
RP-1A rotary peel fixture: 1-1.125″ wide x 6″ dia.
Wide speed range: 0.4 – 12 in/min speed is set digitally (other speed ranges available)
Screw drive system and high performance brushless motor provides smooth and powerful operation over the entire speed range.
Selectable Manual, Increment, and Force Control (with ZT Series gauges) modes
Easy-to-use program dial and menu screens control mode, speed, timer and cycles
MX2-110 Stroke: 9.4″ (240mm)
Max clearance 9″ (with extender 14″)
Force gauge units are selectable: Newton, lbf and kgf
Force gauge output: USB (ZT), RS-232C, Digimatic and analog outputs
IPT-200-5N Embossed Carrier Tape Peel Tester
Model:IPT-200-5N
Capacity: 18ozf, 500 gf, 5N
Standard Features
IPT-200-5N Embossed Carrier Tape Peel Tester Standard Features
180° peel for embossed carrier tape
Speed (selectable): 120, 300, 500, 1000, 1500mm/min
Programmable high/low setpoints with color-coded LED
1,000 Data memory for computer download
Stroke: 15.74″ (400mm)
ozf, gf, and N units are selectable
Real time and peak mode (selectable)
USB, RS-232C and Analog outputs
Overload capacity 150% of F.S.
Overload alarm and output signal
Specifications
Width of Sample
3.46″ (88mm) max.
Speed
120, 300, 500, 1000, 1500 mm/min (selectable)
Peeling Angle
165~180°
Stroke
15.74″ (400 mm)
Safety Features
Emergency Switch, Overload Stop Function, Stroke Limit Switch
Capacity
18 ozf, 500 gf, 5N
Accuracy
±0.2% F.S., ±1 LSD
Units
N, gf, ozf (selectable)
Display
4 digit LCD; Unit Mode; Overload LED; Comparator LEDs
Sampling Speed
1,000 times/sec Max.
Display Update
10 times/sec
Overload Capacity
Approx. 150% F.S. (LED flashes and alarm sounds beyond110%)
Comparator Function
Programmable high/low setpoints with color-coded indicators
Output
USB, RS-232, Analog (-2 to +2 V F.S.)
Temp.
32° to 100°F (0° to 40°C)
Dimensions
27.95″L x 4.96″H x 11.81″D (710mm L x 126mm H x 300mm D)
Weight
24.2 lb (11 kg)
Power
115/230 VAC
