INSIZE ISU-700D Ultrasonic Thickness Gauge

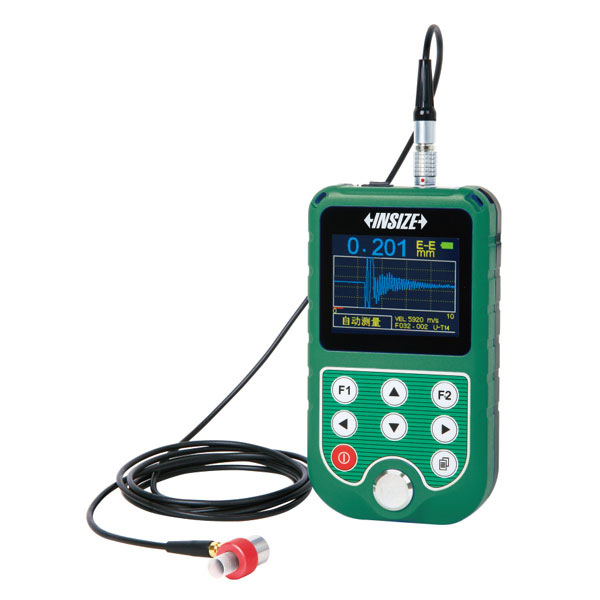

INSIZE ULTRASONIC THICKNESS GAGE – FOR THIN WORKPIECES (CODE ISU-700D)

* For thin workpieces * A scan, through the waveform, judges whether there are impurities, pores, cracks and so on inside, in order to avoid wrong measurement * B scan, measures continuously, displays the thickness change on the screen * Transducers can be automatically identified and zeroed * Memory 10000 measurement values * Data can be input to Excel and Word as keyboard signal * Automatic or manual measurement * When transducers are removed from workpieces, the measurement data are held on screen for easy viewing * Set upper and lower limits for alarm when out-of-tolerance * Automatic power off

Download Catalog

Specification (on steel)

Measuring range		Transmit-eco (T-E) mode : 1.5~20mm
Measuring range		Eco-echo (E-E) mode : 0.2~10mm
Resolution		0.1/0.01/0.001mm
Accuracy		±0.04mm (H<10mm)
		±(0.04+H/1000)mm (H>10mm)
		H is the thickness to be measured in mm
Transducer	type	single element transducer
	frequency	15.0MHz
	diameter (Ød)	7.5mm
Display		320X240, color screen display
Velocity		1000~9999m/s
Measuring frequency		2 times/second and 10 times/secomd
Operation frequency		main unit: -20~50°C
Operation frequency		transducer: -20~60°C
Output		USB
Measuring Unit		mm/inch
Power supply		2×1.5V AA batteries
Dimension		133x77x29mm
Weight		260g (including batteries)

For thin workpieces
A scan, through the waveform, judges whether there are impurities, pores, cracks and so on inside, in order to avoid wrong measurement
B scan, measures continuously, displays the thickness change on the screen
Transducers can be automatically identified and zeroed
Memory 10000 measurement values
Data can be input to Excel and Word as keyboard signal
Automatic or manual measurement
When transducers are removed from workpieces, the measurement data are held on screen for easy viewing
Set upper and lower limits for alarm when out-of-tolerance
Automatic power off
