BAKER LEVER TYPE DIALS GAUGES LONG STYLUS

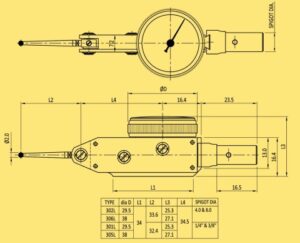

Baker MODEL 29/38 | LONG STYLUS Lever Type Dial Gauges, Fixed with Jewels, rigid brass body, Metric & inch range. Dia.2mm tungsten carbide ball stylus. With 33.6 & 32.4 long stylus.

Buy Now

Download Catalog

Bezel Diameter	Type	Reading	Range	Graduation

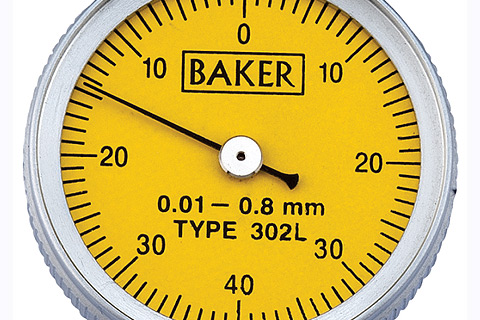

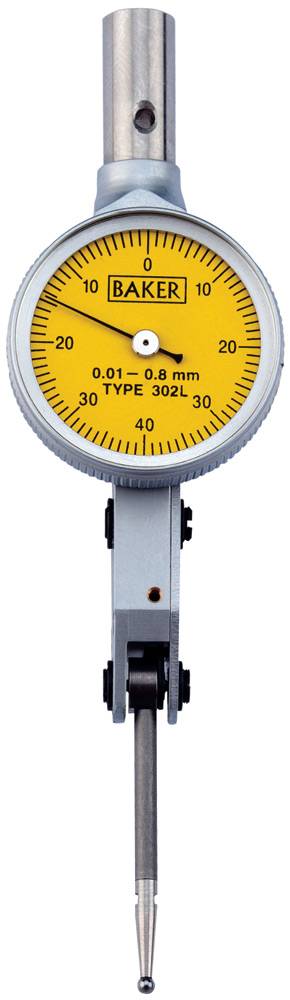

29 mm	302L	0.8 mm	0.01 mm	0-40-0
38 mm	306L	0.8 mm	0.01 mm	0-40-0
Supplied with 33mm long Ø2mm T. C. Ball Stylus fitted to the gauge, Height Gauge Adapter, Ø4 mm & Ø8mm Dovetail Spigot Assembly and Universal Clamp as standard accessories in a box

Bezel Diameter	Type	Reading	Range	Graduation
29 mm	302AL	0.8 mm	0.01 mm	0-40-0
38 mm	306AL	0.8 mm	0.01 mm	0-40-0
Supplied with 33mm long Ø2mm T. C. Ball & Ø8mm Dovetail Spigot Assembly fitted to the gauge.

FEATURES:

Every gauge carries a calibration certificate giving actual values
Auto reversal mechanism
Fitted with jewels and Swiss miniature ball bearings for smoother operation
Robust and highly sensitive gauge suitable for workshop use
Metric Gauges conform to IS 11498 and for the European market to DIN 2270

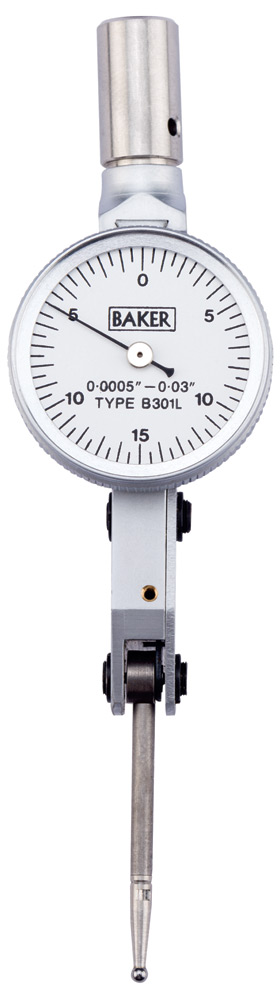

Inch Gauges conform to ASME B89.1.10M
Special dial Gauges for OEMs also manufactured on request
Complete spares and after sales service available
Integral dovetail offers flexibility and rigidity for mounting of the gauge
Metric & Inch gauges are supplied with 2mm tungsten carbide ball stylus and 8 mm spigot assembly as standard supply
No additional accessories are offered when suffix A is added to the type number
