SHOCKPROOF DIAL INDICATOR CODE – 2314

Shockproof Jeweled bearing Supplied with limit pointers and bezel clamp Optional accessory: backs (page 132), contact points (page 128~131) *Supplied with manufacturer calibration certificate Code Range Graduation Accuracy Hysteresis Range/rev Dial reading/td> Remark 2314-3A* 3mm 0.01mm 14µm 3µm 1mm 0-100 lug back 2314-5A* 5mm 0.01mm 16µm 3µm 1mm 0-100 lug back 2314-10A* 10mm 0.01mm 20µm

Download PDF

Shockproof
Jeweled bearing
Supplied with limit pointers and bezel clamp
Optional accessory: backs (page 132), contact points (page 128~131)

*Supplied with manufacturer calibration certificate

Code	Range	Graduation	Accuracy	Hysteresis	Range/rev	Dial reading/td>	Remark
2314-3A*	3mm	0.01mm	14µm	3µm	1mm	0-100	lug back
2314-5A*	5mm	0.01mm	16µm	3µm	1mm	0-100	lug back

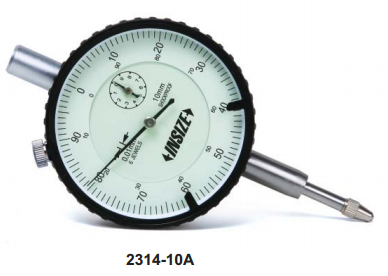

2314-10A*	10mm	0.01mm	20µm	3µm	1mm	0-100	lug back
2314-3FA*	3mm	0.01mm	14µm	3µm	1mm	0-100	flat back
2314-5FA*	5mm	0.01mm	16µm	3µm	1mm	0-100	flat back
2314-10FA*	10mm	0.01mm	20µm	3µm	1mm	0-100	flat back
