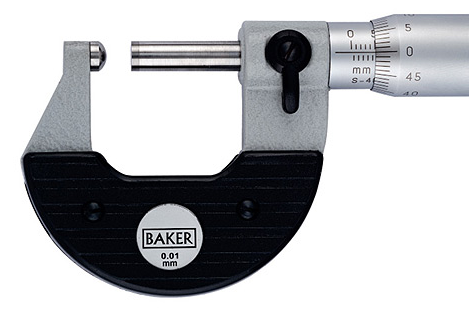

BAKER TUBE TYPE MICROMETER

FEATURES TUBE TYPE MICROMETER Spindle of Tube type micrometer made from stainless steel for rust prevention Measuring faces: hardened steel available in two types: T1 – one end spherical T2 – both ends spherical An in-built ratchet in the thimble Zero setting once done cannot be easily tampered with Sharp laser marking for better visibility

Download PDF

FEATURES TUBE TYPE MICROMETER

Spindle of Tube type micrometer made from stainless steel for rust prevention

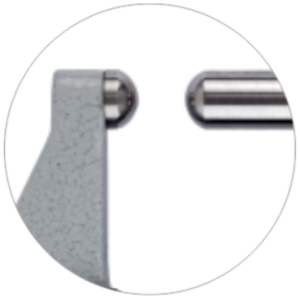

Measuring faces: hardened steel available in two types:
T1 – one end spherical
T2 – both ends spherical
An in-built ratchet in the thimble
Zero setting once done cannot be easily tampered with
Sharp laser marking for better visibility & durability
Heat insulating grip plates cover the entire handling portion of the micrometer frame
Robust design withstands toughest workshop condition

tube type micrometer-special-external-micrometer-tube_02

tube type micrometer-special-external-micrometer-tube_03

Measuring Range mm	Reading mm	Type	A mm	B mm	Min. Ø D mm	Measuring Range inch	Reading inch	Type

0-25	0.01	MMA25-T1	5.5	32.5	9.5	0-1″	0.001″	INA1-T1
0-25	0.01	MMA25-T2	5.5	32.5	9.5	0-1″	0.001″	INA1-T2
25-50	0.01	MMA50-T1	6	57.5	10	1-2″	0.001″	INA2-T1
25-50	0.01	MMA50-T2	6	57.5	10	1-2″	0.001″	INA2-T2
50-75	0.01	MMA75-T1	8	83	12	2-3″	0.001″	INA3-T1
50-75	0.01	MMA75-T2	8	83	12	2-3″	0.001″	INA3-T2
75-100	0.01	MMA100-T1	8	108	12	3-4″	0.001″	INA4-T1
75-100	0.01	MMA100-T2	8	108	12	3-4″	0.001″	INA4-T2
